PCT-206 Installation Termnal Blocks And Compact Push WIre Connector

Market Price: 0.065

Wholesale Price:$ 0.06

PCT-206 named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 200 pieces / box ;

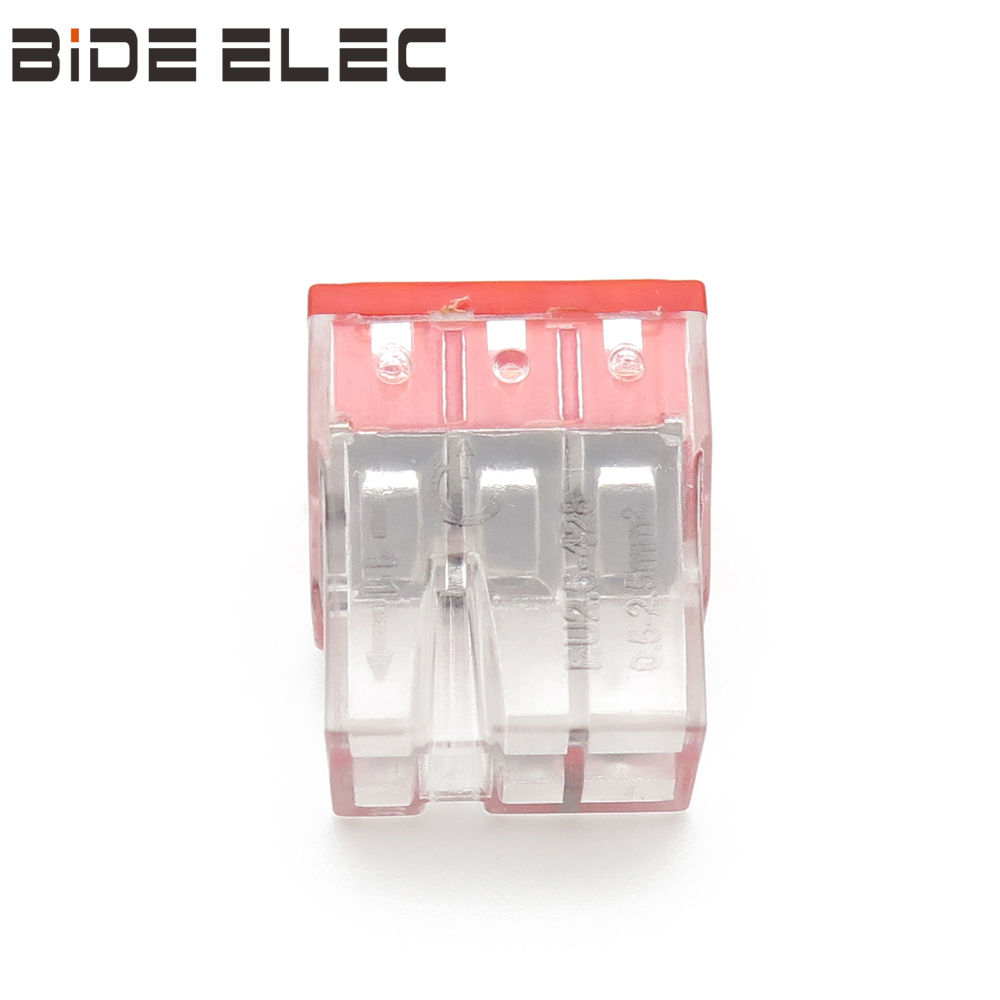

PCT-206 mini wire connector , red , has 6 interworking holes, which can connect single strand or multi strand stranded wires of 0.5-2.5mm2, replacing the traditional chicken claw wiring, tinning and electric tape process, improving the beauty and wiring efficiency, and increasing the safety; compared with 773 series, the volume is reduced by 60%, so that there is more space for heat dissipation in the junction box;
PCT-206 terminal has a nylon 66 transparent shell, which makes the internal wiring of the terminal clear, and the terminal has its own electricity measuring hole. After wiring, you can use a measuring pen to check whether it has been safely connected. If there is anything wrong, you can use ultra simple operation (fix the terminal, rotate the wire left and right, pull it out);
PCT compact junction box series products can achieve the same functions as Wago 2273 series products, but compared with WAGO, it has the characteristics of low price, reliable performance and high cost performance ;
PCT compact junction box wire connector have 6 types : PCT-202 (WAGO 2273-202), PCT-203 (WAGO 2273-203), PCT-204 (WAGO 2273-204), PCT-205 (WAGO 2273-205), PCT-206 and PCT-208 (WAGO 2273-208) ;

Different suppliers take difference Price baesd on following factors :
1. Whether the contact surface material is made of red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the outer shell material is environmentally friendly
8. Whether the injection molding process is exquisite (with or without burrs)
9. Whether the finished product packaging is simple Poor

点击购买

Technical parameters
Connection number: 6
Rated voltage: 400V
Rated current: 24A
Withstand voltage: 4KV
Applicable wire diameter: 0.5-2.5mm²single strand hard wire
Stripping length: 10mm
Product size: 16.7 * 14 * 10.4mm

Material description
Color: Red
Contact surface material: tinned red copper
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product Certification
Rosh, CE, CQC, etc
