AM6-4 Pneumatic Ferrule Terminal Crimping Machine With Four-sided Crimp

Market Price: 250

Wholesale Price:$ 238.00

Pneumatic cold pressing terminal crimping machine, also known as pneumatic terminal crimping clamp or pneumatic terminal crimping tool, is a tool that provides power (without plug-in) by connecting the input air energy of air compressor, which solves the problems of manual crimping tools such as tedious, laborious and low efficiency ;
Pneumatic terminal crimping tools are mainly used to crimp cold pressed terminals, such as insulated terminals, bare terminals, European tubular terminals, plug spring terminals, flag terminals, nipple crimping caps, etc., which have the characteristics of high crimping efficiency, labor-saving operation, safety and convenience ;
According to the different types of pressing connection, Pneumatic terminal crimping machine can be divided into special-purpose type and multi-functional type; according to the different operation modes, it can be divided into handheld type and desktop type ;
In fact, through the design of different types of crimping machine, the feasibility of different types of terminals can be greatly increased ;

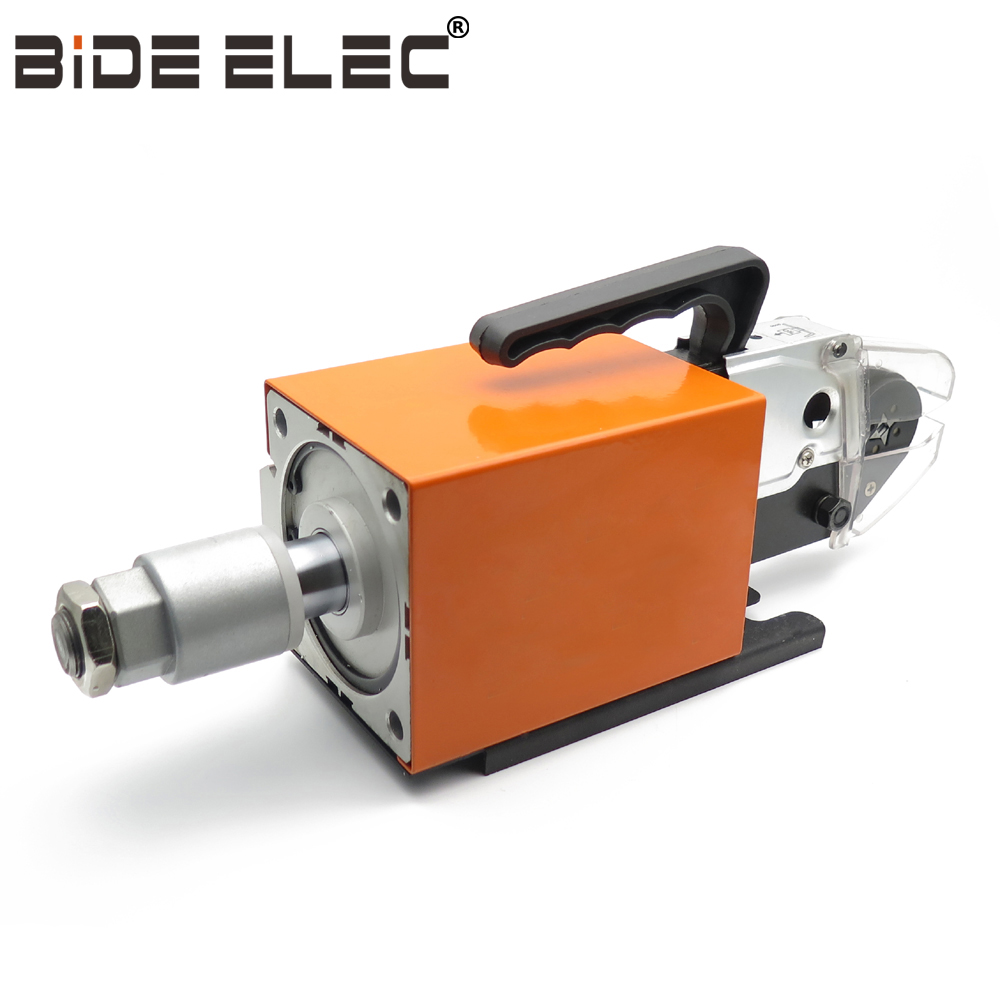

Desktop pneumatic crimping clamp AM6-4 is specially used for crimping insulated and non-insulated ferrule terminals. Its crimping range is 0.08-6.0mm², and the shape after crimping is square. If there are other requirements for the shape after crimping, please select trapezoid or hexagon ;

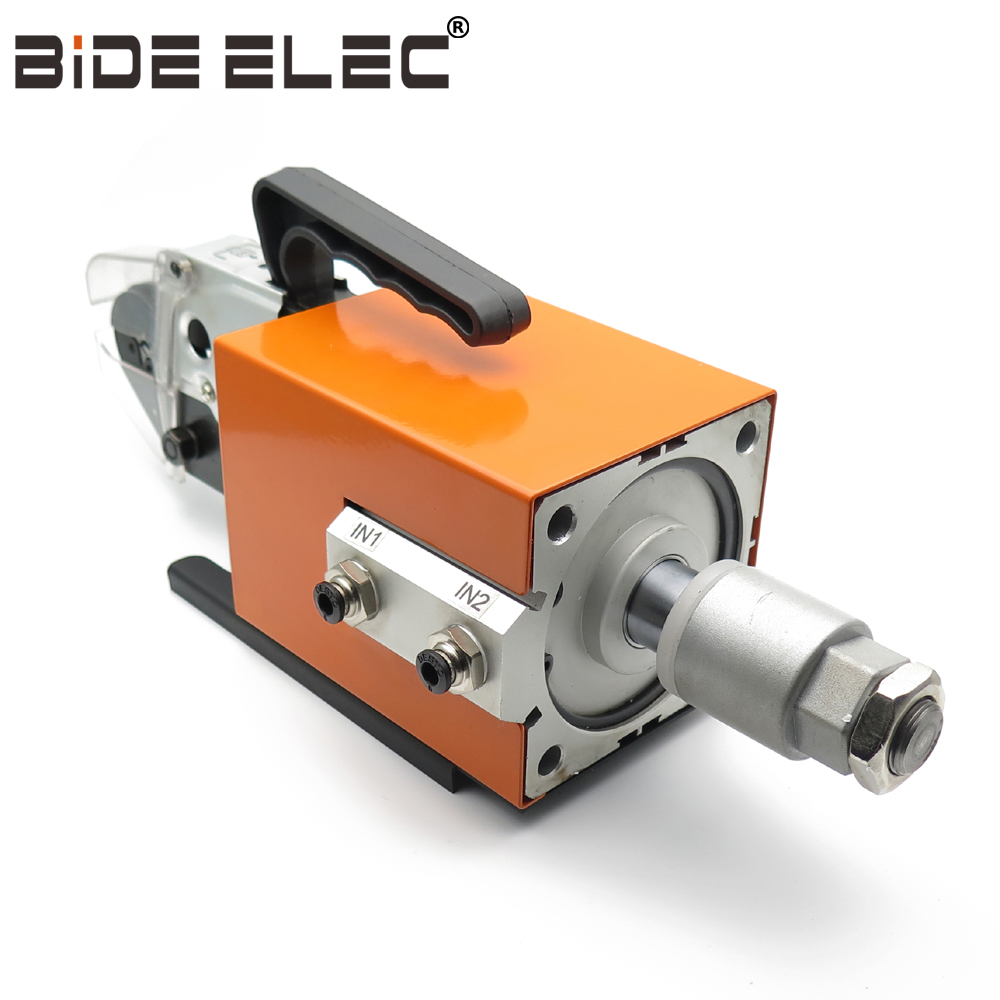

Tabletop type pneumatic tubular terminal crimping tool AM6-4 is a self-adjusting crimping tool, that is, terminals within 6 mm²can be crimped on a pair of dies, and there is an adjusting screw cap in the back seat of the machine to adjust the travel range of different diameters ;

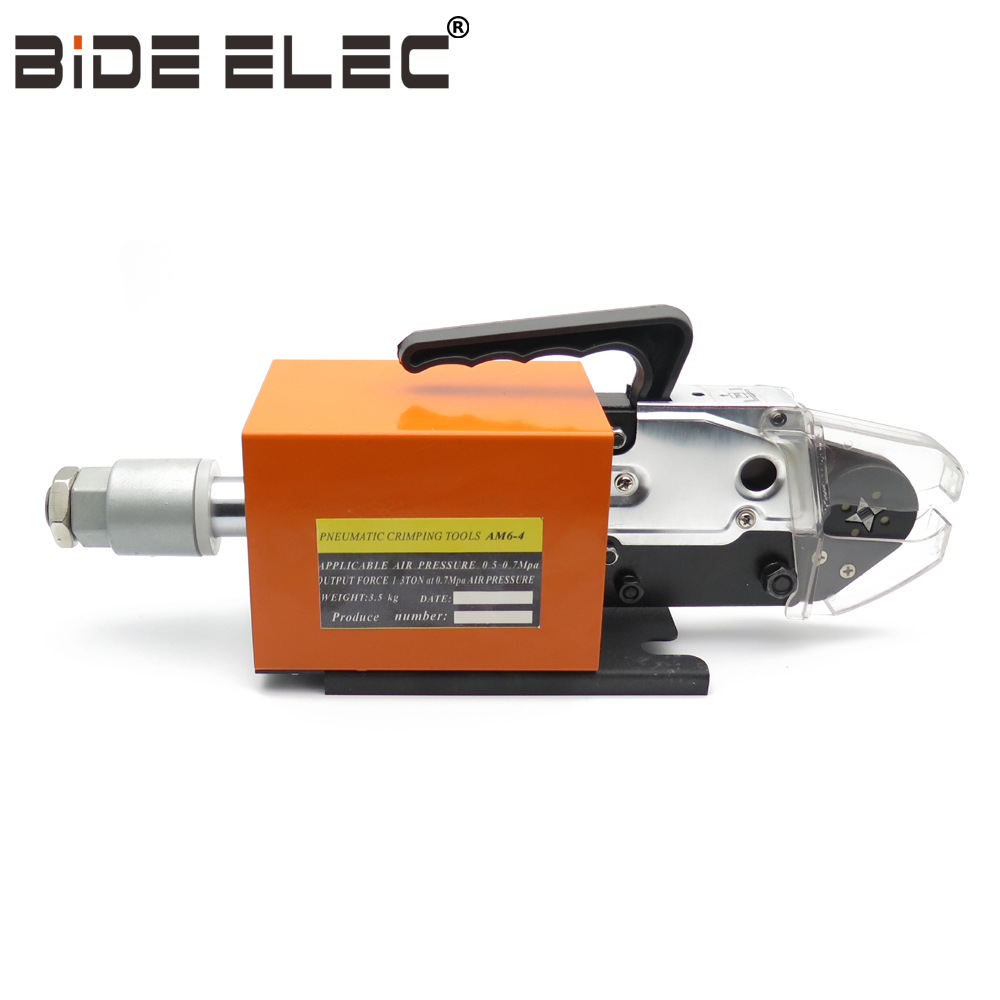

The shell of AM6-4 pipe type terminal pneumatic crimping machine is made of plastic sprayed iron, with its own fixed mounting base, which can be fixed on the desktop for terminal crimping, which improves the safety, and is widely used in wire harness processing, complete set of power distribution cabinet processing, etc. ;
Applicable air pressure range of AM6-4 is 0.7-0.8MPA, and the capacity of air compressor is more than 35L. If the value is too small, it will affect the pressing force and crimping effect ;

点击购买

Product description
Name: pneumatic crimping machine for ferrule terminals
Model: AM6-4
Applicable object: insluated and non-insulated ferrules terminals
Function: it is used for crimping of insluated and non-insulated ferrules terminals, and the shape is square after crimping
Crimping range: 0.08-6mm²
Shape after pressing: square (four sides crimp )
Pressure: 13.5KN
Product size: 260 x 120 x 140 mm
Accessories: foot valve *1, air pipes * 2 and instruction manual

Product characteristics

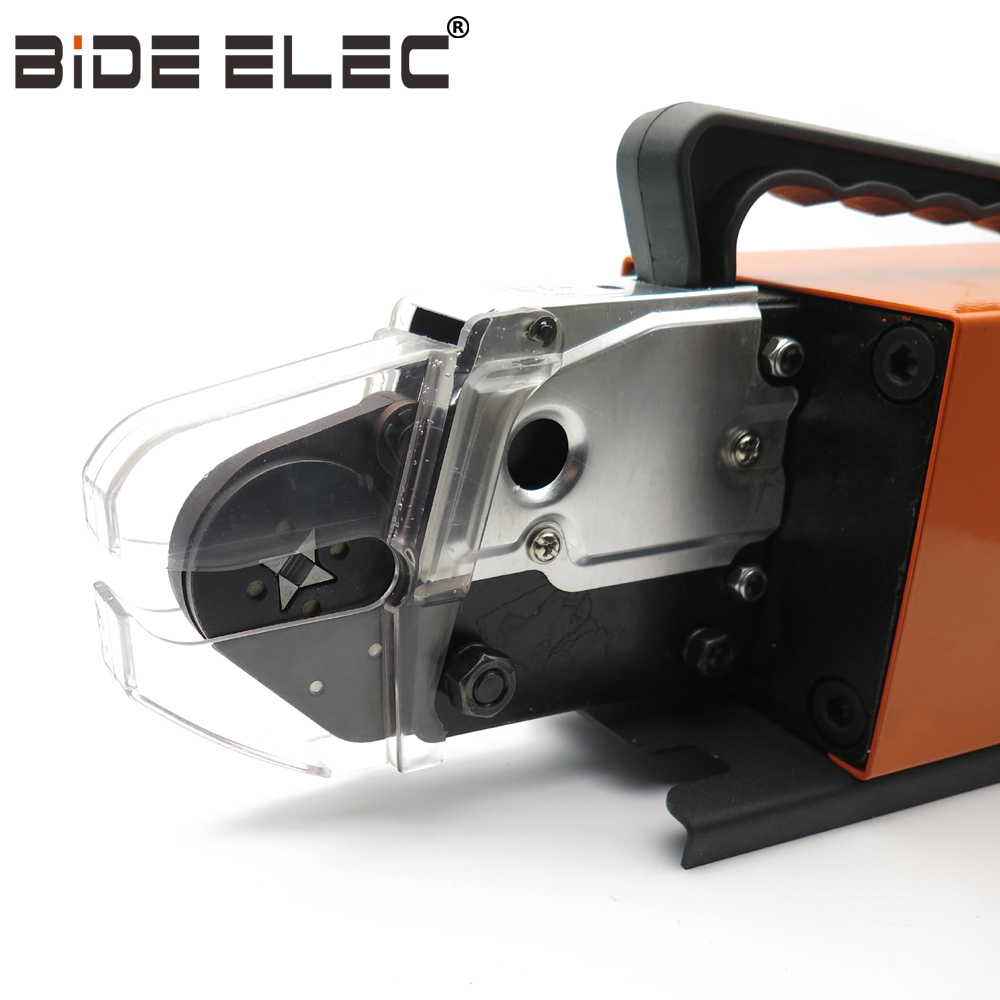

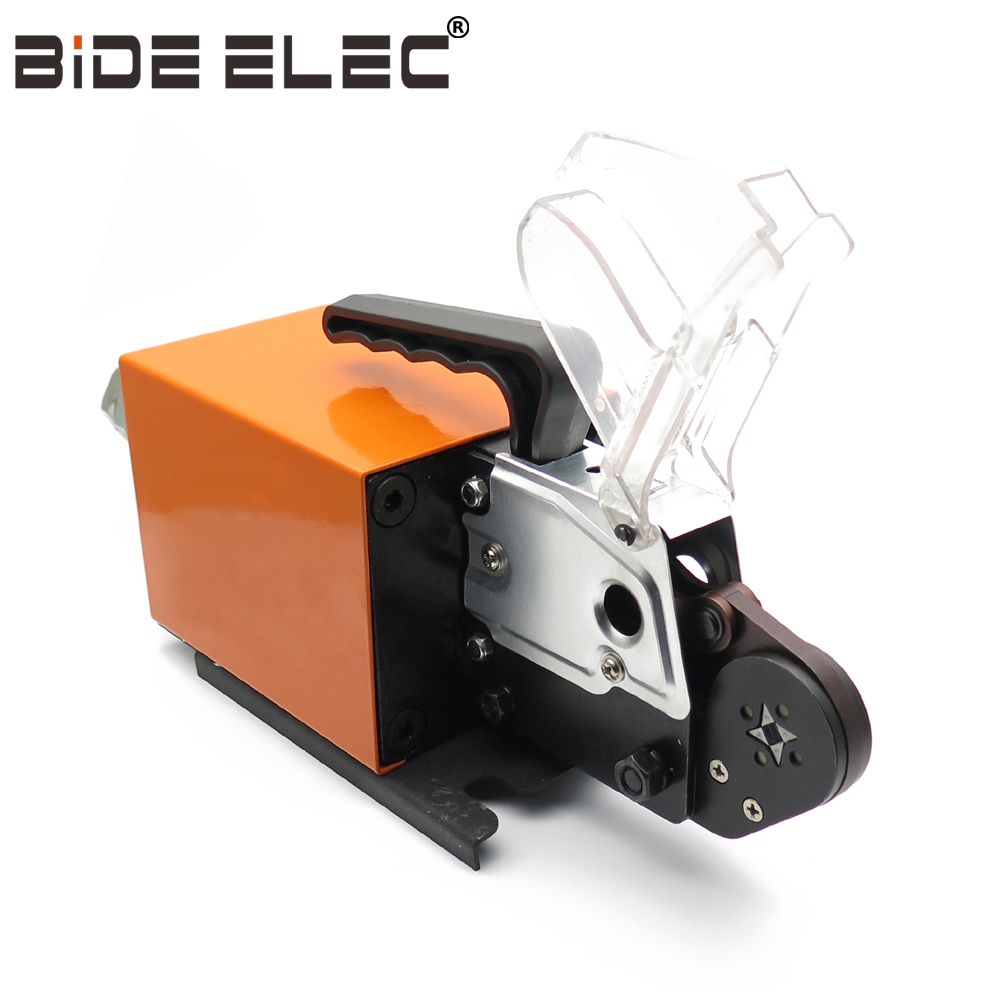

Four sides of the crimping die, traditional fixed die, can be more flexible crimping pipe shape insulated terminal
The square number of crimping can be set freely from 0.08-6.0mm²
After crimping, the shape is beautiful, showing a quadrangular shape, without protruding flash

Instructions for use
Connect the tool to the air compressor, put the terminal of the wire into the pressure connector, step on the foot to complete the crimping, and then release the foot to take out the terminal

Common problems of pneumatic crimping machine
1. The air pressure does not meet the standard. If the air pressure is too high or too low, the use effect of the crimping machine will be affected, and the operation shall be carried out in strict accordance with the instructions of the corresponding tools; if the air pressure is too high or too low, the use effect of the crimping machine will be affected
2. Shape deformation after pressing. The wire does not match the terminal, the terminal tube is empty after inserting the wire, and it is extruded or cannot be pressed after crimping, the wire is inserted into the terminal tube
3. The crimping efficiency is not as expected. Pneumatic crimper is a semi-automatic tool, its efficiency is affected by many convenient factors, such as crimping terminal type, terminal size, unskilled and so on ;
