SST-P50 50 Pcs Solder Seal Heat Shrink Wire Waterproof Connector Sets

Market Price: 3.6

Wholesale Price:$ 3.25

Solder Seal Heat Shrink Wire Waterproof Connector

is a combination of low melting point alloy and heat shrinkable pipe, which replaces the old construction method of electric iron welding. It can not only protect the contact from air oxidation and other corrosive gases, but also prevent the contact between the contacts. It is widely used in the fields of railway, ship, aerospace, electric power, electronics, etc., and it is a primary method of wire connection, waterproof and protection The perfect product with high quality.
SST-P50 solder seal heat shrink joint double ring pipe, also known as solder ring, solder ring heat shrinkable pipe, solder ring connecting pipe, solder ring heat shrinkable terminal
Characteristics of SST-P50 solder ring:
-systolic rate: 2:1;
-it contains hot melt adhesive, which has waterproof function after heating;
-it can be used as a waterproof agent
-solder ring design is easy to construct
-pipe color (white, red, blue, yellow) indicates the applicable size
-meet the ROHS environmental protection standards
SST-P50 is a set of 50 solder rings, which is suitable for major cross-border e-commerce platforms, such as Amazon, eaby, alexpress, wish, choose, beasybuy, etc.
Operating temperature range: operating temperature - 55 ℃ ~ 125 ℃, minimum shrinkage temperature 60 ℃, complete shrinkage temperature above 138 ℃, solder complete melting temperature 160 ℃

Solder Seal Heat Shrink Wire Waterproof Connector

点击购买

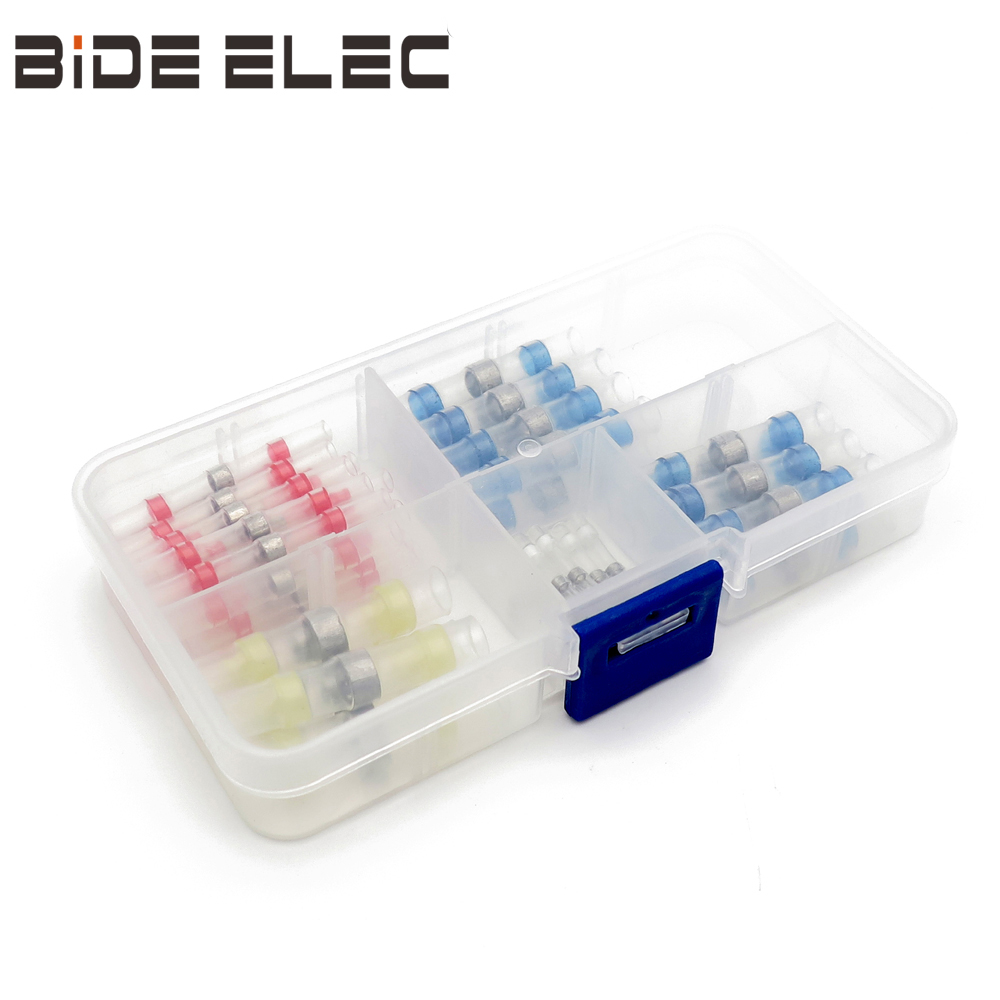

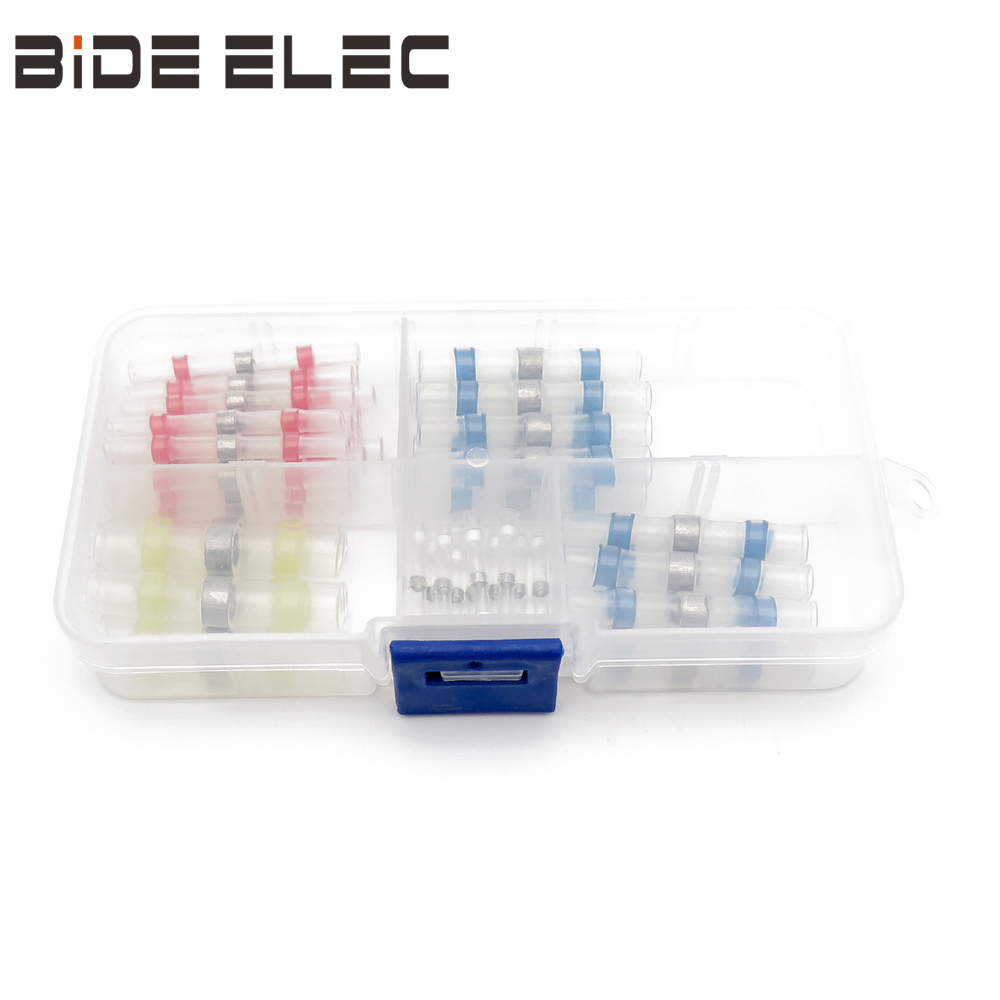

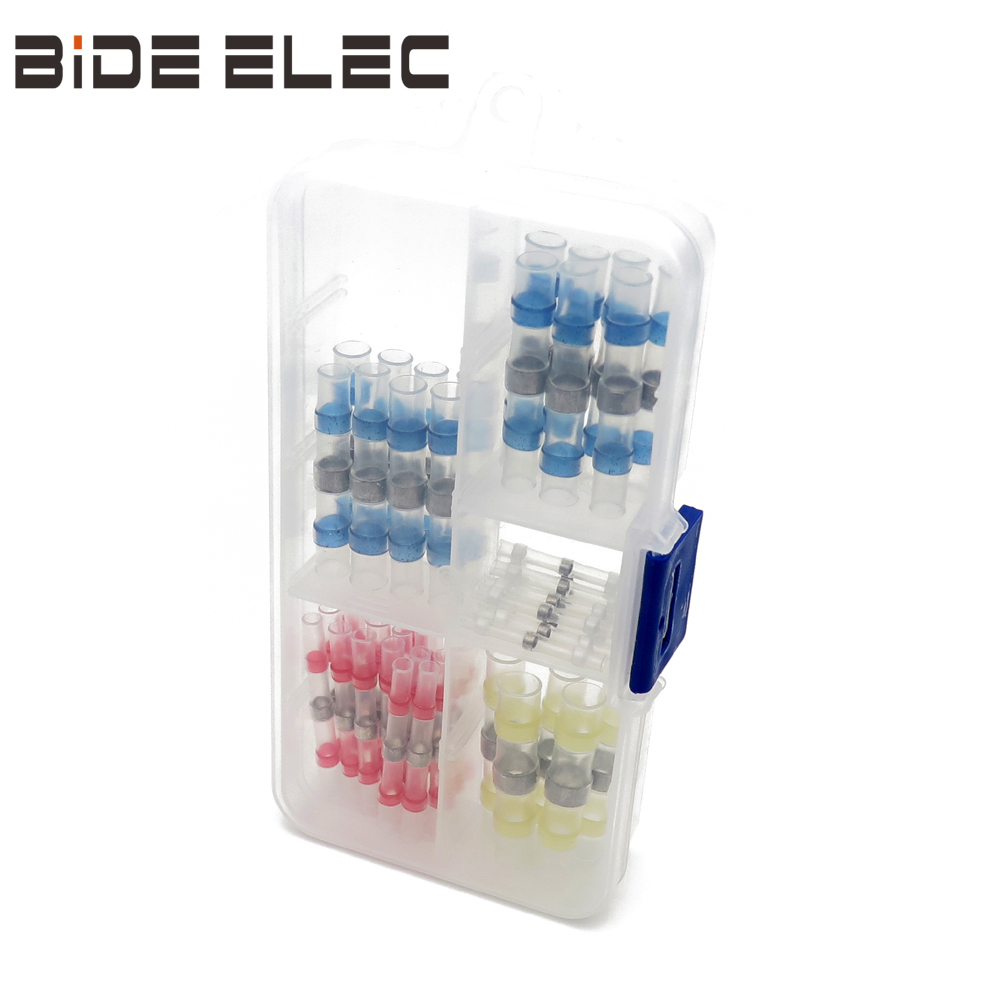

Contents in boxes
SST-S11 , White , 10 pcs , 0.25-0.34mm²
SST-S21 ,Red ,20 pcs , 0.5-1.0mm²
SST-S31 , Blue ,15 pcs , 1.5-2.5mm²
SST-S41 , Yellow ,5 pcs , 4.0-6.0mm²

Usage
Remove the insulation layer of the wire to be connected, insert one end of the wire into the double ring tube, tighten the two strands of wire, move them under the solder ring, heat the heat shrinkable tube until the solder is melted and fixed

Product characteristics
-waterproof, anti leakage
-strong anti-seismic, firm wiring, not easy to loose
-easy to use and reliable

Technical parameters
Dielectric strength: 1kV
Protection grade: IP67
Working temperature: - 55 ℃-+125 ℃,
Initial shrinkage temperature: 80 ℃
The initial melting temperature of solder: 138 ℃
Complete melting temperature of solder: 160 ℃
Shrinkage temperature: >160°C

Material description
Color: white
Material of outer tube: heat shrinkable tube
Contact material: low temperature solder ring
Ring material: Waterproof hot melt adhesive
