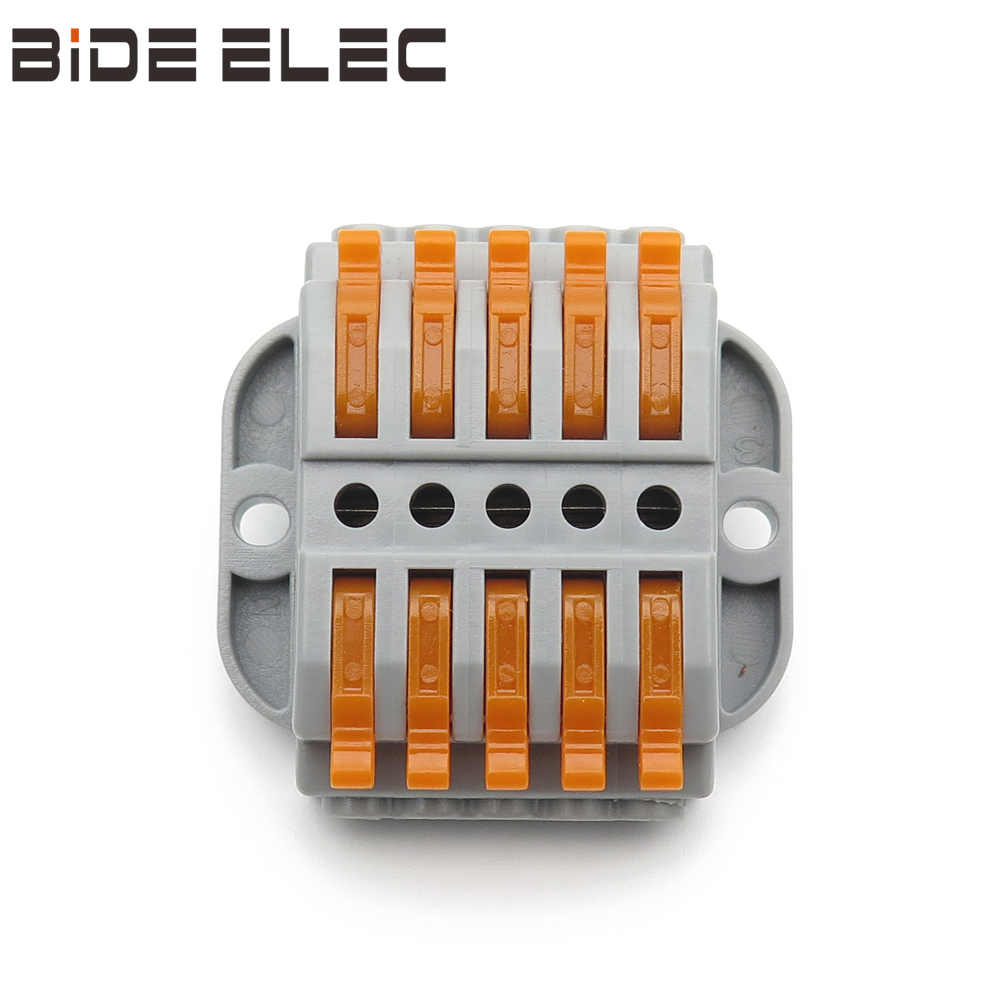

PCT223-5 Fixable 5 In 5 Out Mating Universal Wire Connector Max 4mm2

Market Price: 3.15

Wholesale Price:$ 2.73

PCT223-5 is fixed butt universal connector or compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 20 pieces/box;
PCT223-5 connector is improved from pct-2122. It is connected with live wire and neutral wire on the same terminal, 5 in and 5 out, and the fixed seat is designed as a whole, which makes the product installation and fixation more convenient and practical ;
PCT223-5 universal terminal can connect single strand / multi hook stranded wire 0.08-2.5mm² and thin multi strand wire 0.08-4mm², which can easily solve the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, and realize the function of live wire and neutral wire docking on the same terminal, improve the wiring efficiency and increase the safety ;
PCT233-5 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether it has been safely connected. If there is something wrong, the wiring can be repeated with ultra simple operation (open the operating handle, pull out insert the wire, press the operating handle) , if there is any problem, the wiring can be repeated
PCT223 fixable mating connector series have 8 types : PCT223-2, PCT223-3, PCT223-4, PCT223-5, PCT223-6, PCT223-8, PCT223-10, PCT223-12 ;

点击购买

Different manufacturers take different price based on following factors :
1. Whether the contact surface material is made of red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmentally friendly
8. Whether the injection molding process is exquisite
9. Whether the finished product packaging is simple and crude
Product characteristics
It has its own fixed mounting seat, which is convenient for construction
Wide range of wiring, easy to use

Technical parameters
Connection number: 10 (5 + 5)
Rated voltage: 400V
Rated current: 32A
Withstand voltage: 4KV
Applicable wire diameter: 0.2-4.0mm2 single strand hard wire
Stripping length: 11mm

Material description
Color: gray
Contact surface material: tinned red copper
Clamping material: high grade nichrome spring steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC) < br / >

Product certification < br / >
Rosh, CE, CQC, etc
