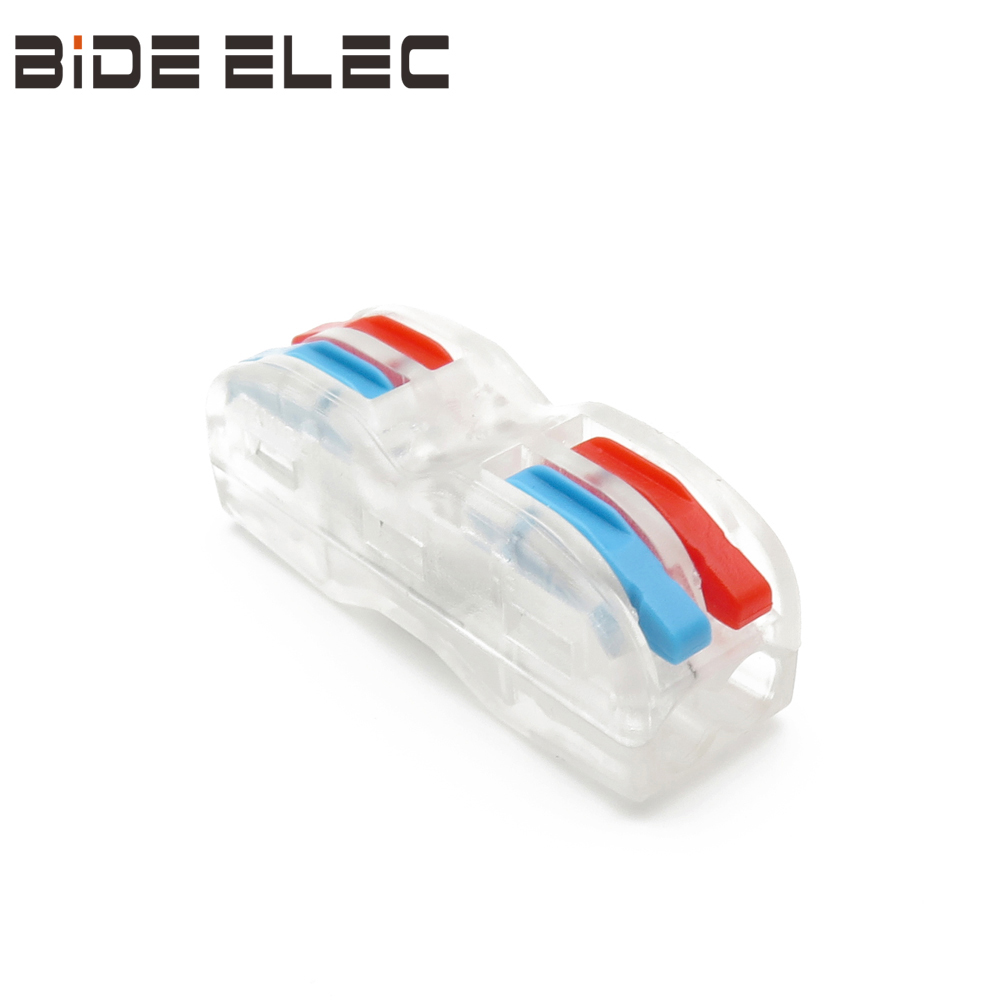

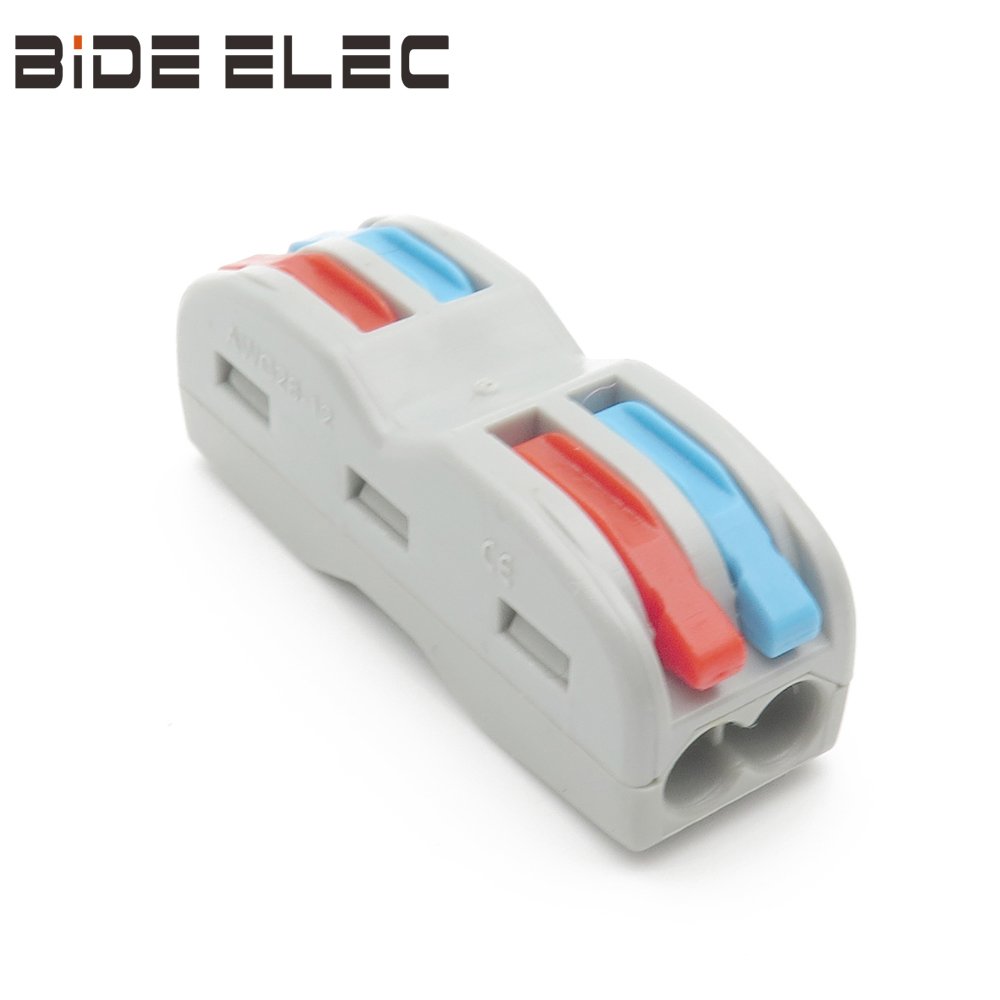

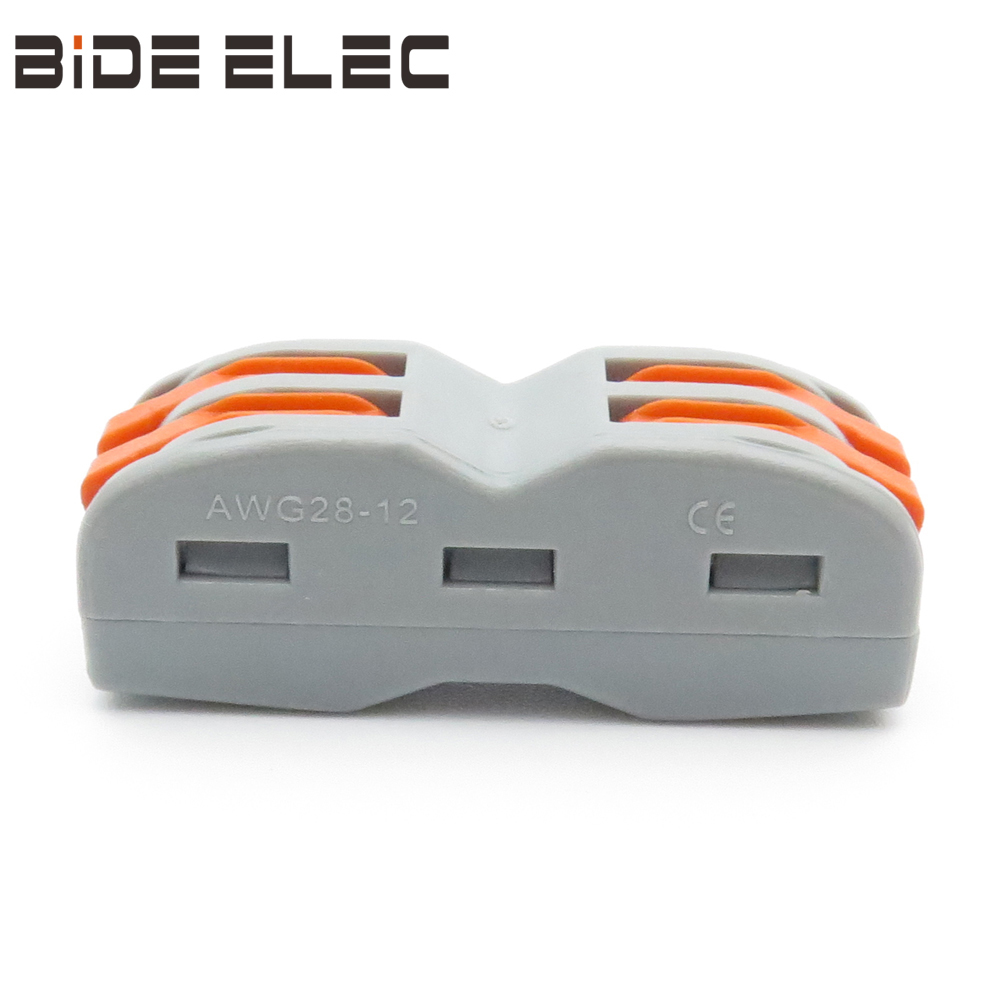

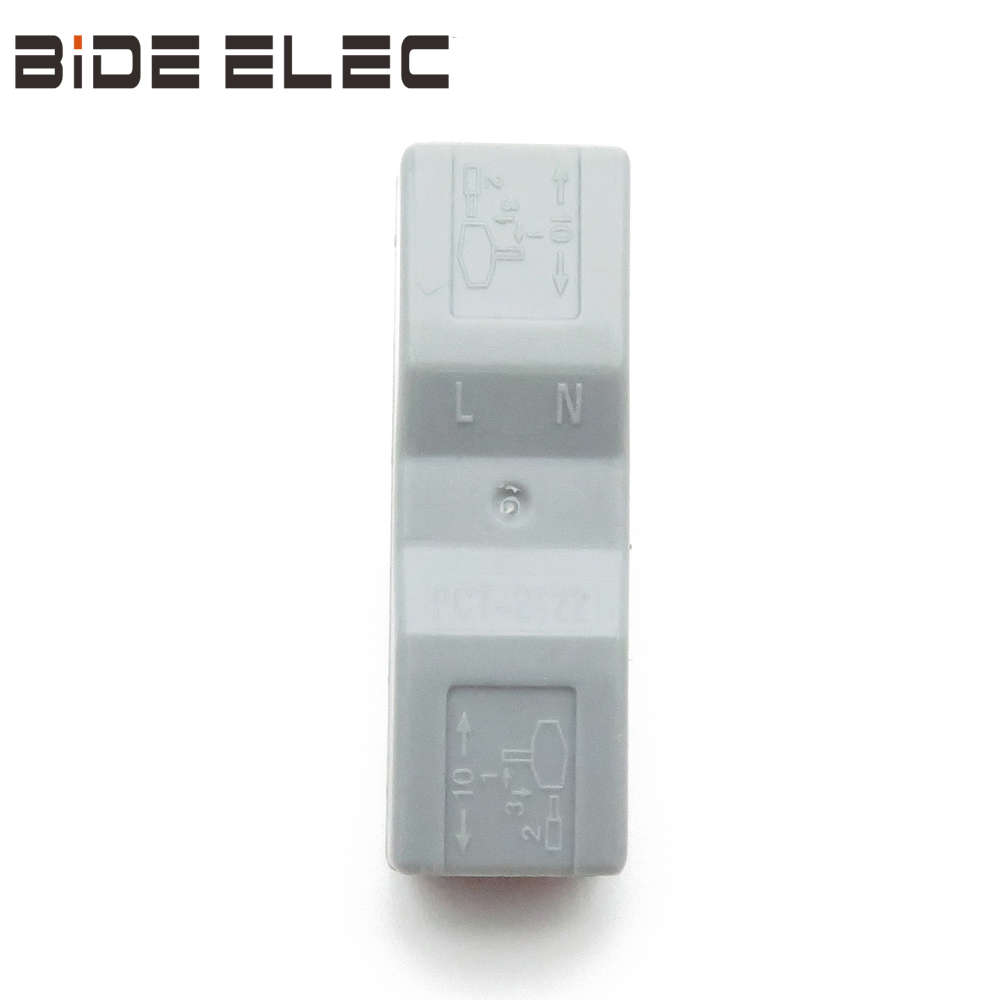

PCT-2122 Fast Installation 2 In 2 Out Mating Universal Wire Connector

Market Price: 0.16

Wholesale Price:$ 0.13

PCT-2122 is compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box;
PCT-2122 connector is improved from PCT-212, which can realize the direct docking of neutral and live wires on the same side;
PCT-2122 universal wire terminal can connect single strand / multi hook stranded wire 0.08-2.5mm² and thin multi strand wire 0.08-4mm², which can easily solve the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, and realize the function of zero and live wire docking on the same terminal, improve the wiring efficiency and increase the safety ;
PCT-2122 fast installation terminal has its own electric measuring hole. After wiring, you can use the electric measuring pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the operating handle, pull out - insert the wire, press the operating handle) ;
Based on the original product WAGO222-412, PCT mating series products have carried out revolutionary innovation to make wiring more convenient, reliable and safe, and the domestic innovation has made the products more cost-effective ;
PCT mating connector have 4 types : PCT-2122, PCT-2133 , PCT-244 ,PCT-255 ;
The color of PCT mating terminal series can be customized: gray (default), transparent, etc.; handle color: red, blue, black, white, orange (default), etc. ;

点击购买

Different manufacturers take different price based on following factors :
1. Whether the contact surface material is red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmental friendly
8. Whether the injection molding process is exquisite
9. Whether the finished product packaging is simple and crude

Technical parameters
Connection number: 4 (2 + 2)
Rated voltage: 400V
Rated current: 32A
Withstand voltage: 4KV
Applicable wire diameter: 0.2-4.0mm² single strand hard wire
Stripping length: 11mm
Product size: 39 * 12 * 15mm

Material description
Color: gray or transparent
Contact surface material: tinned red copper
Clamping material: high grade nichrome spring steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC)

Product certification
Rosh, CE, CQC, etc
