LT-615 Gray Fast Installation Compact Splicing Wire Connector Max 6mm2

Market Price: 0.23

Wholesale Price:$ 0.20

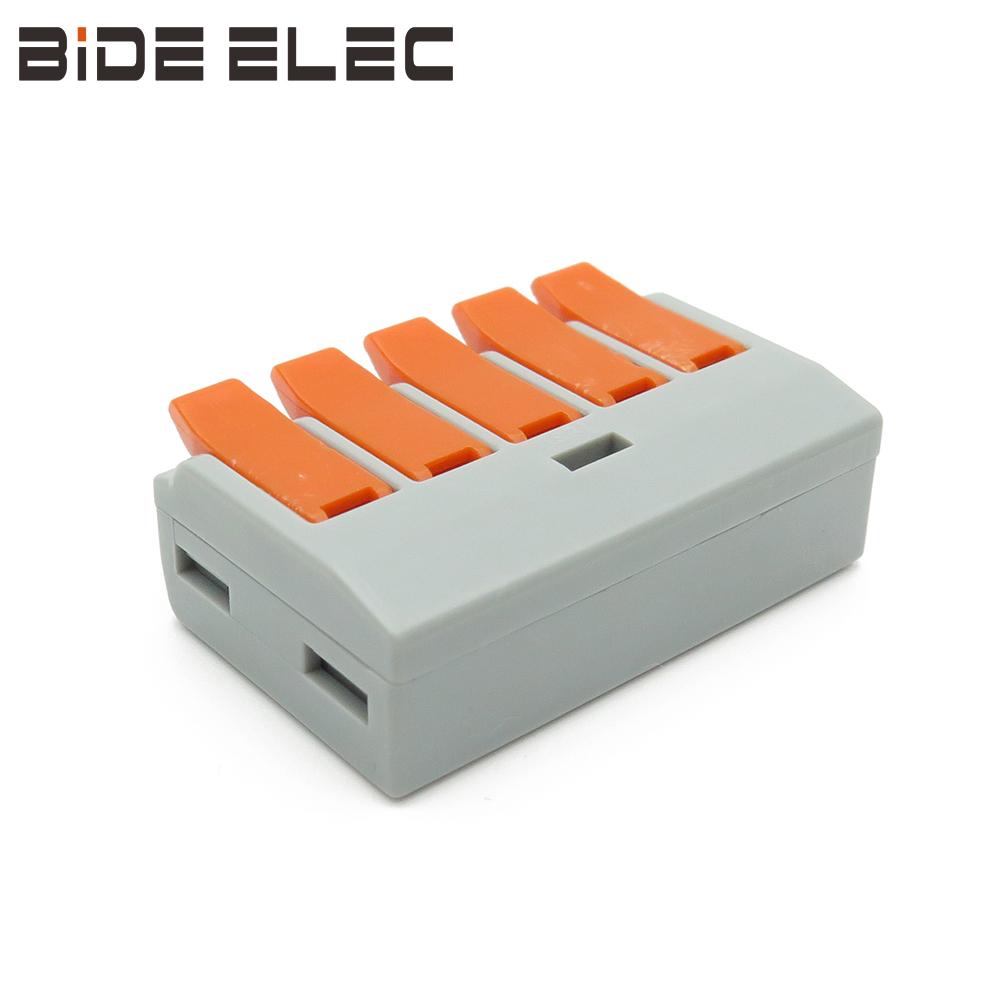

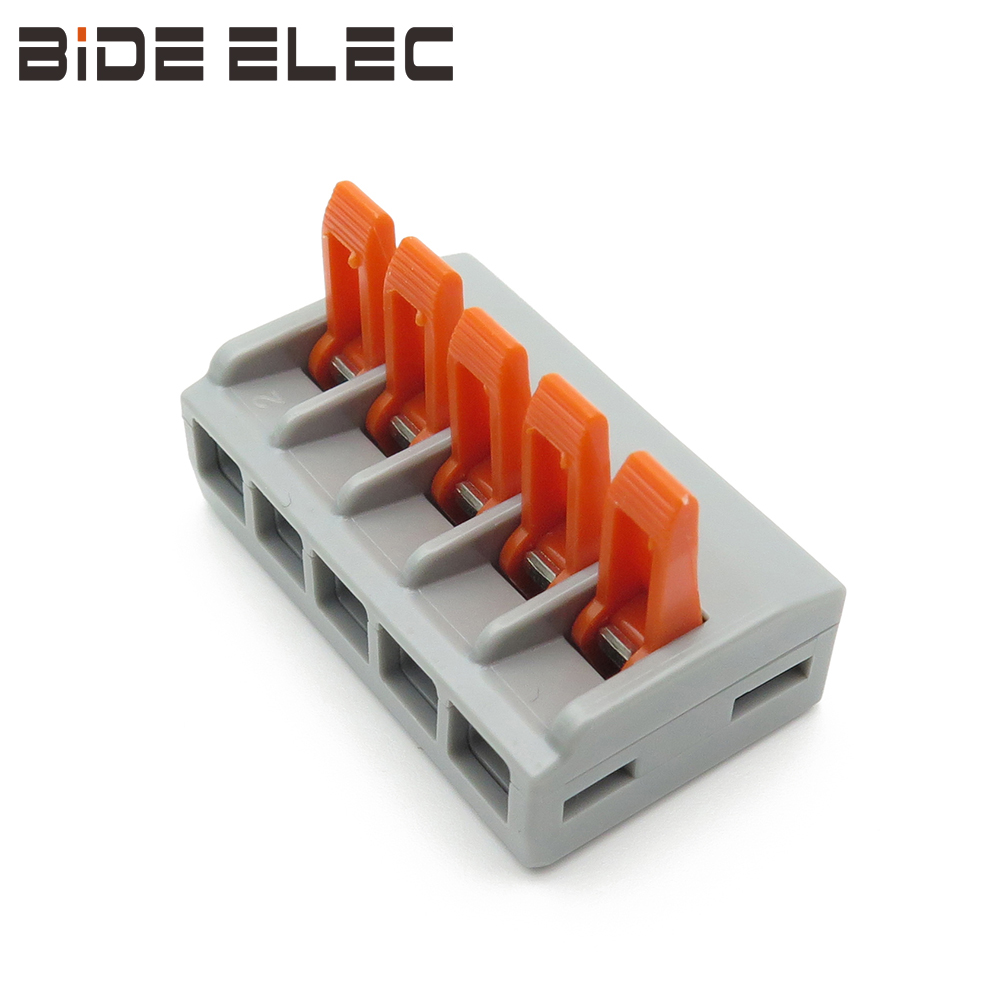

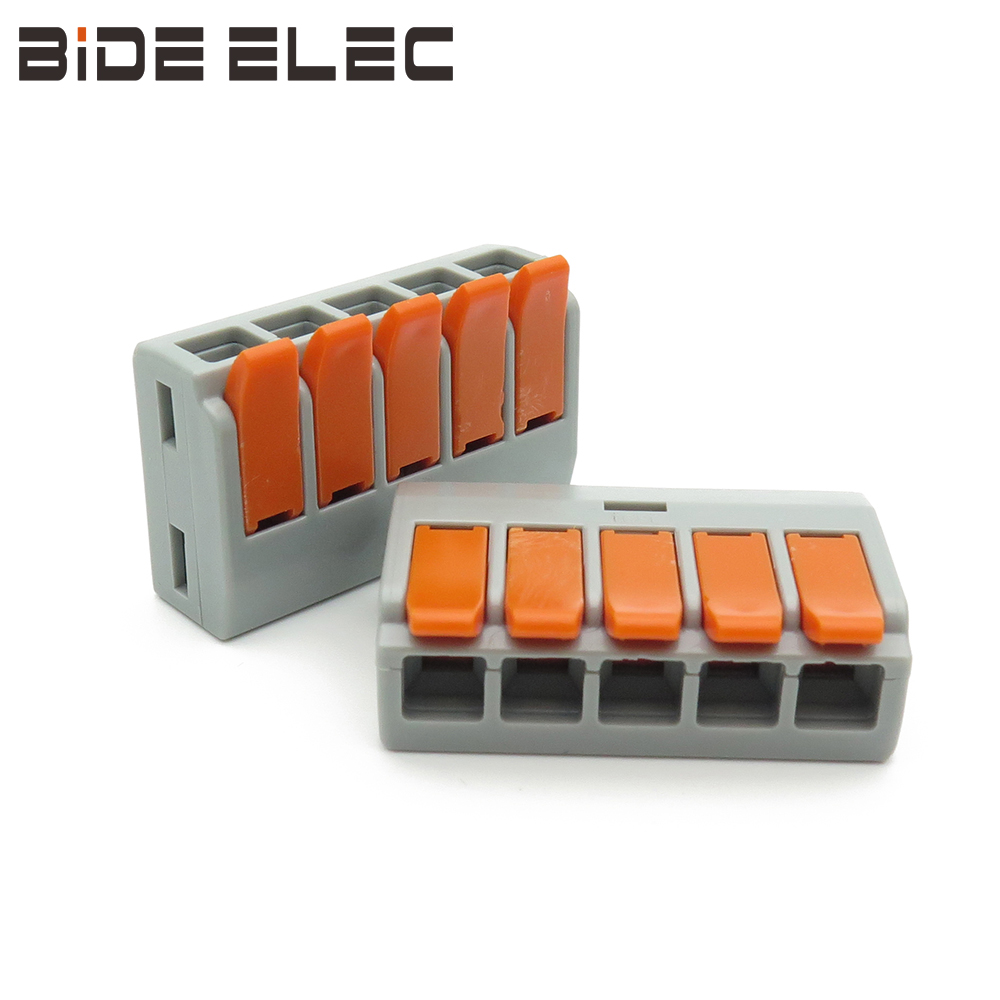

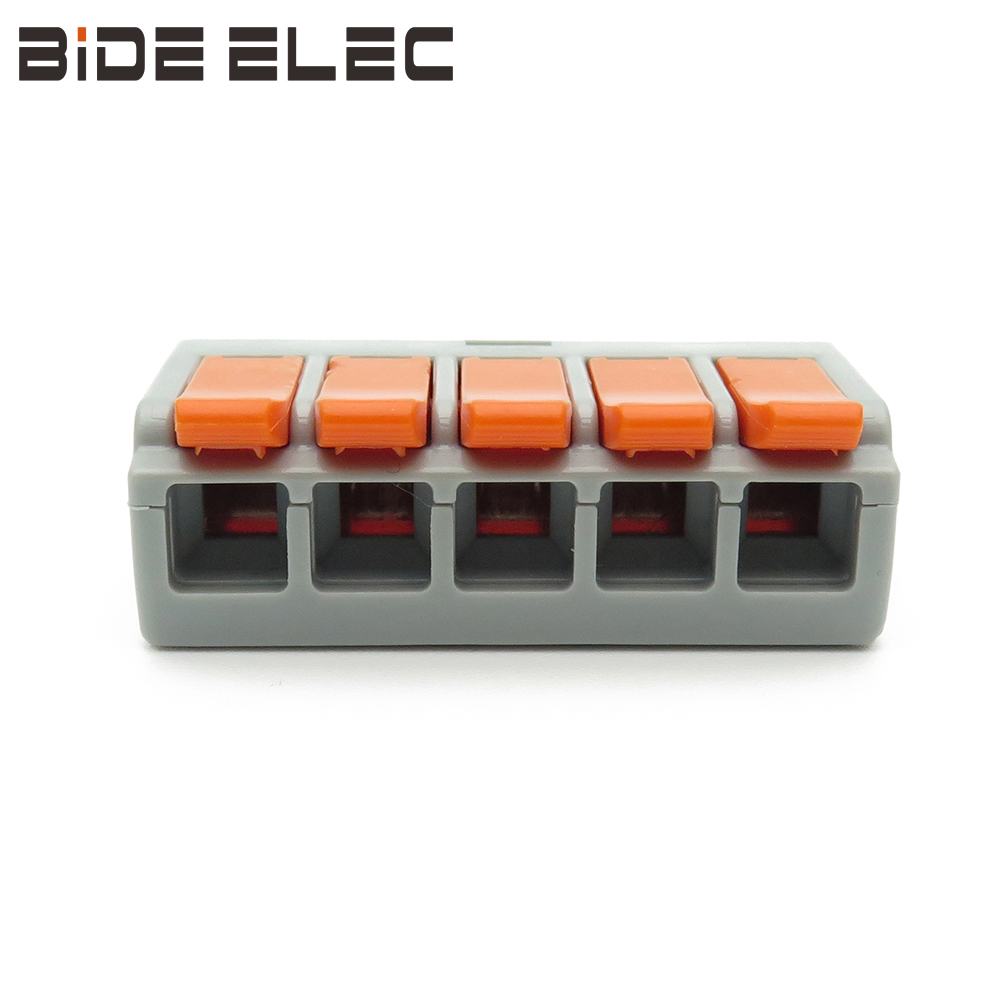

LT-615 named compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;
LT-615 connector , gray , has 5 interworking holes, which can connect 0.5-6.0mm² single / multi strand soft and hard wires at will, easily solves the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
LT-615 terminal has its own electricity measuring hole. After wiring, you can use the electric pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the orange handle, pull out the wire, insert the wire, press the orange handle) ;
LT-615 wire connector can work normally in 85°C environment, and the maximum temperature can reach 105°C；
LT-615 connector can be transparent or gray according to different materials, and handle color can be customized according to customer requirements ;

点击购买

Technical parameters
Rated voltage: 450V
Rated current: 41A
Rated power: 9KW
Applicable wire diameter: 0.5-6mm² single multi strand soft and hard wire
Stripping length: 13mm

Material description
Conductive material: high purity electrolytic copper T2
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel S301
Shell material: gray nylon 6.6 (pa6.6); transparent polycarbonate (PC)

Product Certification
CE, CQC, etc
