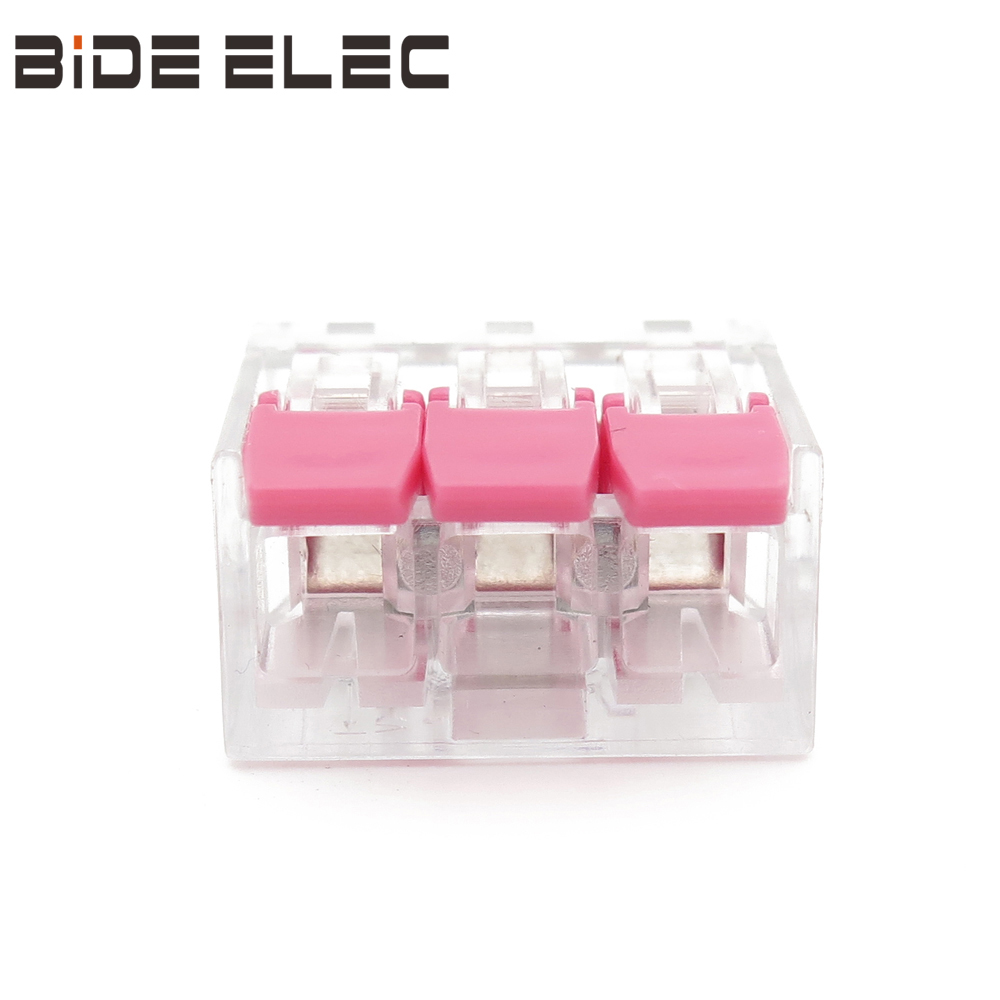

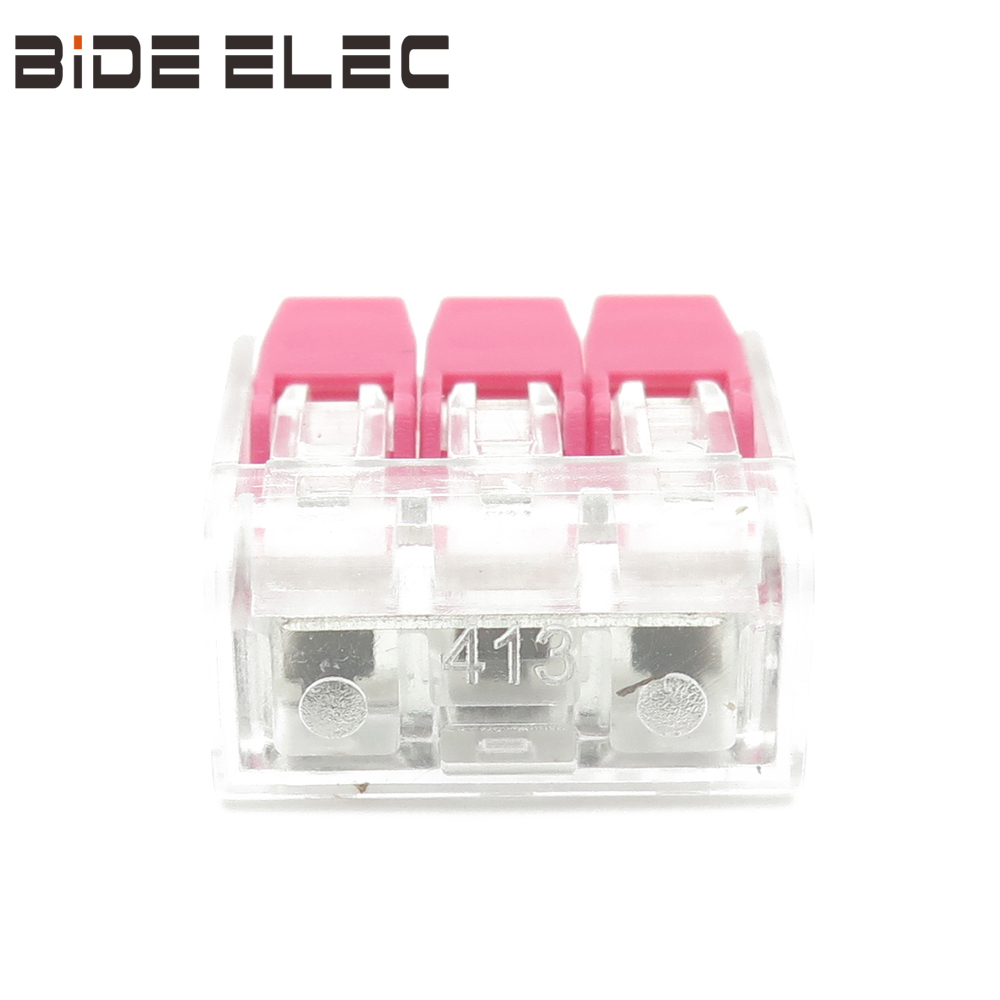

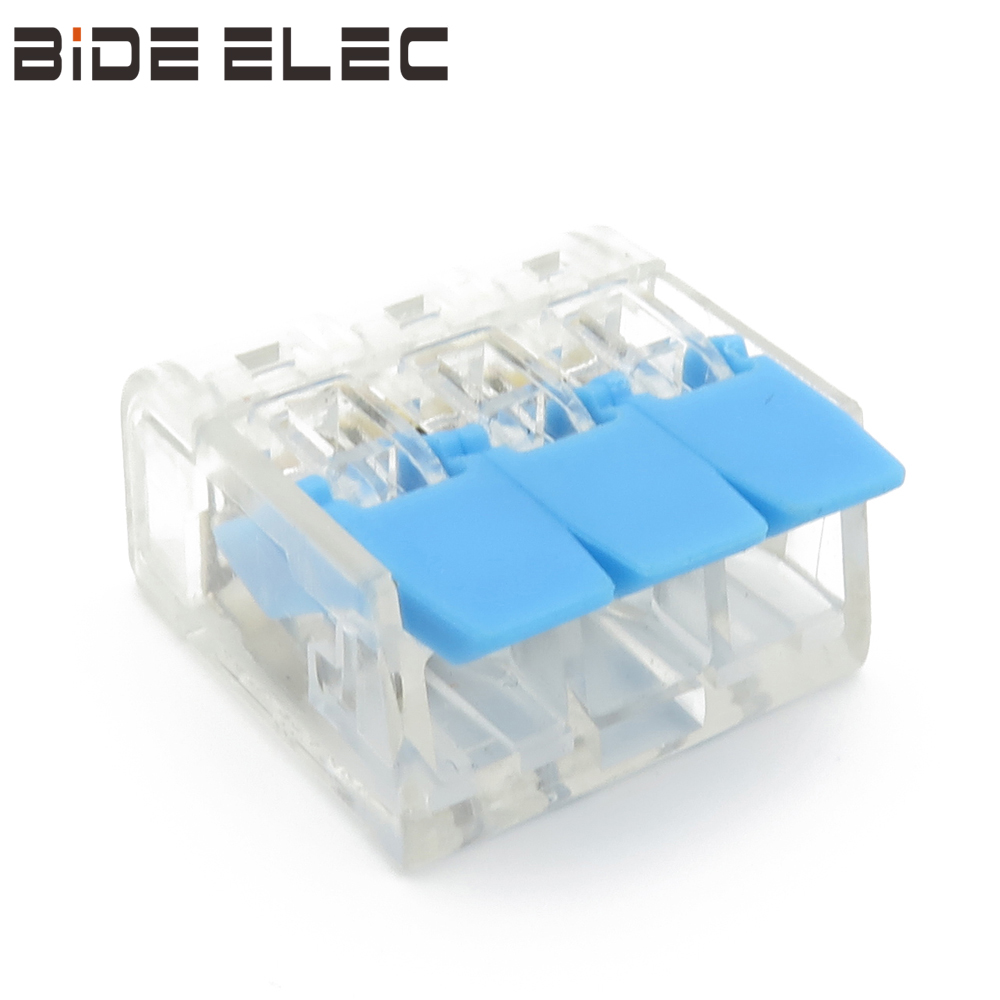

PCT-413 Fast installation Universal Wire Connector Max 4mm2

Market Price: 0.1

Wholesale Price:$ 0.08

PCT-413 named compact splicing connectors, can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
PCT-413 connector has two interworking holes, which can connect 0.08-4.0mm² single / multi strand soft and hard wires at will, which easily solves the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
PCT-413 terminal has a nylon 66 transparent shell, so that the internal wiring of the terminal is clear, and the terminal has its own electricity measuring hole. After wiring, the electric pen can be used to check whether the wiring is safe. If there is something wrong, the wiring can be repeated with ultra simple operation (open the operating handle, pull out insert the wire, press the operating handle) ;
PCT four square series has four models, PCT-412 (WAGO221-412), PCT-413 (WAGO221-413), PCT-414, PCT-415 (WAGO221-415 ) ;
PCT four square series colors can be customized: orange, blue, red, etc. ;
PCT series different price from different supplier based on following factors :
1. Whether the contact surface material is red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmental friendly
8. Whether the injection molding process is exquisite (with or without burr)
9. Whether the finished product packaging is simple and crude

点击购买

Technical parameters
Connection number: 3
Rated voltage: 400V
Rated current: 32A
Withstand voltage: 4KV
Applicable wire diameter: 0.14-4mm2 multi strand thin flexible wire; 0.2-4mm2 single / multi strand hard wire
Stripping length: 11mm
Product size: 19.1 * 18.6 * 9.9mm

Material description
Color: orange, blue, pink or customized
Contact surface material: tinned red copper
Clamping material: high grade nichrome spring steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC)

Product Certification
Rosh, CE, CQC, etc
