PCT-104WP Installation Terminal Block And Connector With Waterproof Silicone Grease Max 2.5mm2

Market Price: 0.23

Wholesale Price:$ 0.18

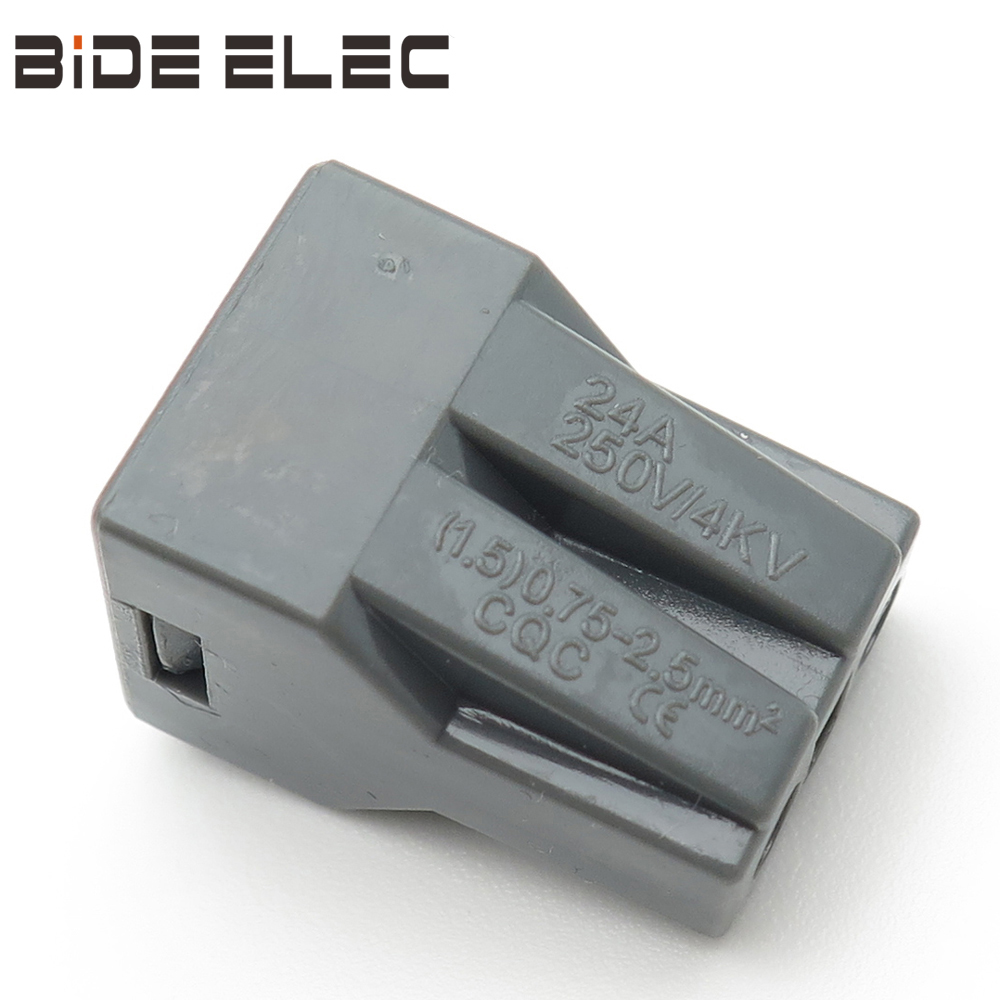

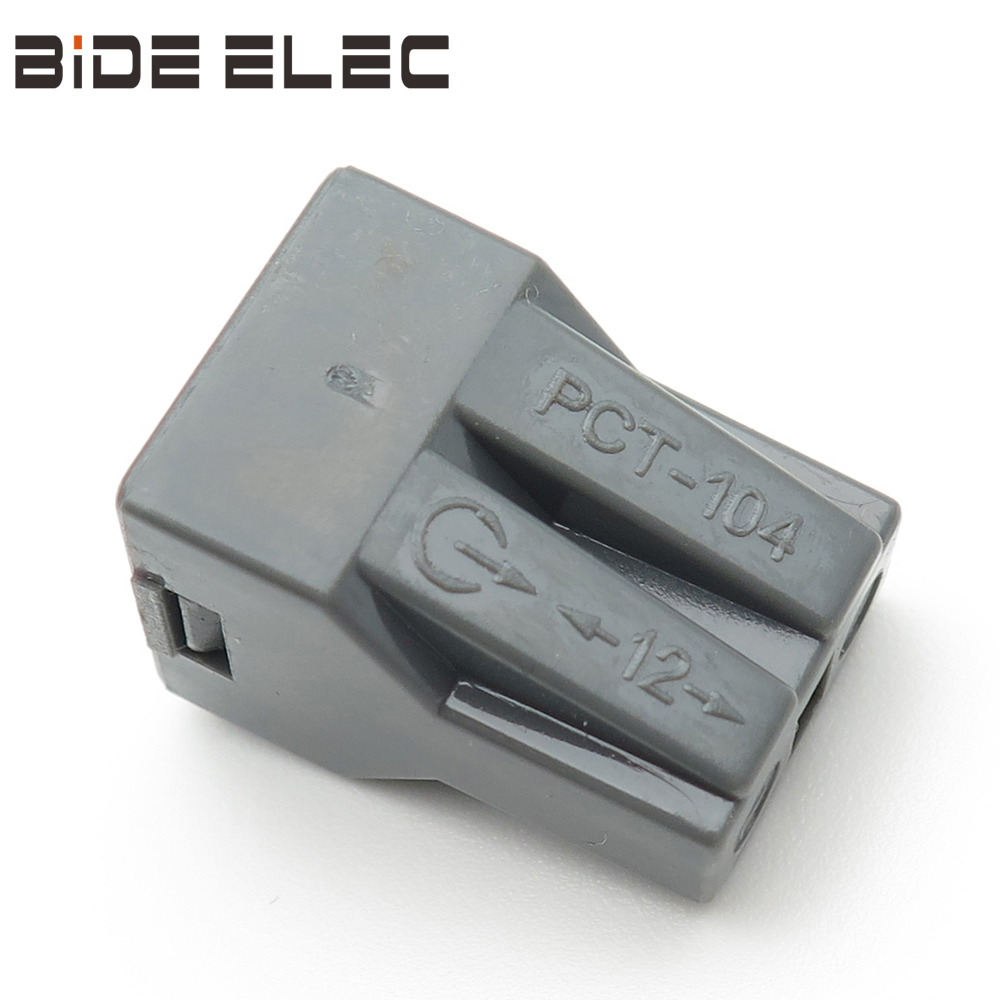

PCT-104WP is a wire connector fill up waterproof silicone grease, named installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
PCT-104WP connector ,deep gray, has 4 interworking holes, which can connect single strand / multi hook stranded wire 0.75-2.5mm² ;, replacing the traditional chicken claw wiring, tinning and electric tape technology, improving the beauty and wiring efficiency, and increasing the safety ;
PCT-104WP wire terminal has its own electricity measuring hole. After wiring, you can use the electric measuring pen to check whether the wiring is safe or not. If there is something wrong, you can use the ultra simple operation (fix the terminal, rotate the wire left and right, pull it out) ;
PCT-104WP can work normally in 85°C environment, and the maximum temperature can reach 105°C；
PCT junction box series products can achieve the same functions as WAGO 773 series products, and compared with WAGO, it has the characteristics of low price, reliable performance and high cost performance;
There are seven models of PCT junction box, PCT-102 (WAGO 773-102), PCT-104 (WAGO 773-104), PCT-106 (WAGO 773-106), PCT-108 (WAGO 773-108), PCT-103D (WAGO 773-173), PCT-104D, PCT-111 (WAGO 224-101) ;
PCT junction box series is widely used in building electrical wiring. Offline hardware and plumbing stores, building materials wholesalers and general decoration companies have included it in the product sequence to replace the traditional electrical tape wiring mode. With high cost performance and reliable safety, it has been recognized and praised by the majority of customers ;
PCT series price difference factors :
1. Whether the contact surface material is red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process; 4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmental friendly
8. Whether the injection molding process is exquisite (with or without burr)
9. Whether the finished product packaging is simple and crude

点击购买

Technical parameters
Connection number: 4
Rated voltage: 400V
Rated current: 24A
Withstand voltage: 4KV
Applicable wire diameter: 0.75-2.5mm² single strand hard wire
Stripping length: 10mm
Product size: 19.5 * 13.1 * 9.2mm

Material description
Color: gray
Filler: waterproof silicone grease
Contact surface material: tinned red copper
Clamping material: high grade nichrome spring steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC)

Product certification
Rosh, CE, CQC, etc
