PCT-111 Lighting Fixture Connector And Installation Terminal Blocks

Market Price: 0.065

Wholesale Price:$ 0.05

PCT-111 is connector for lighting appliance , named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;

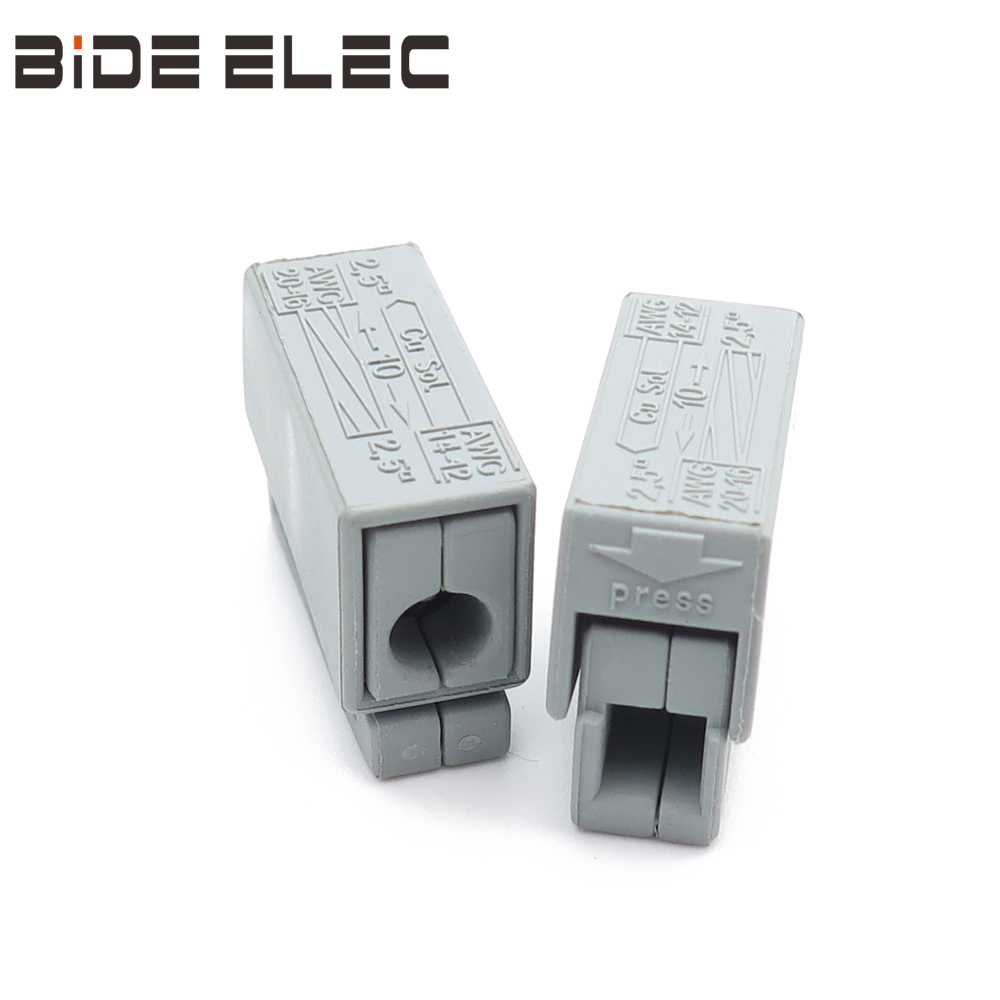

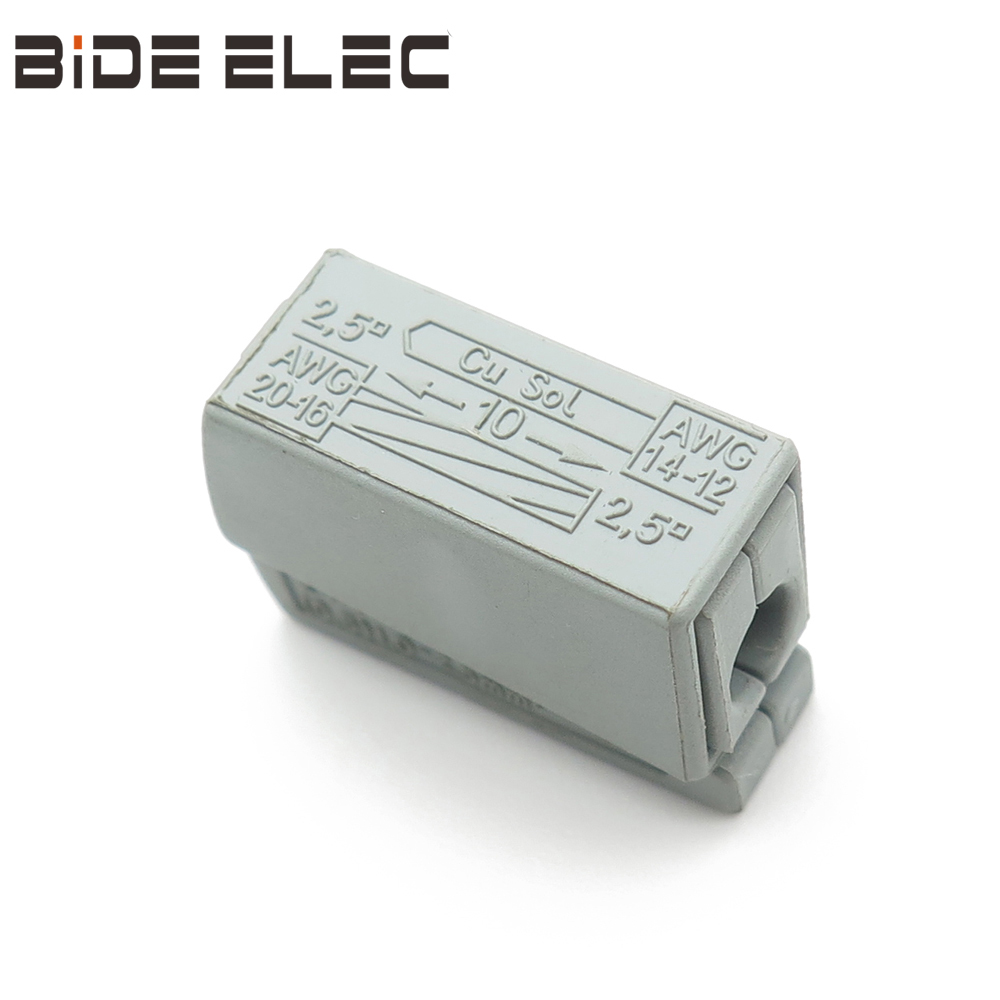

PCT-111 connector ,gray face ,has a square hole in the front, which can connect any type of wire 0.08-2.5mm², and a round hole in the back, which can connect a single strand of hard wire 1-2.5mm², which can be more convenient and risk-free wiring when installing lighting appliances, and improve the wiring efficiency and safety ;

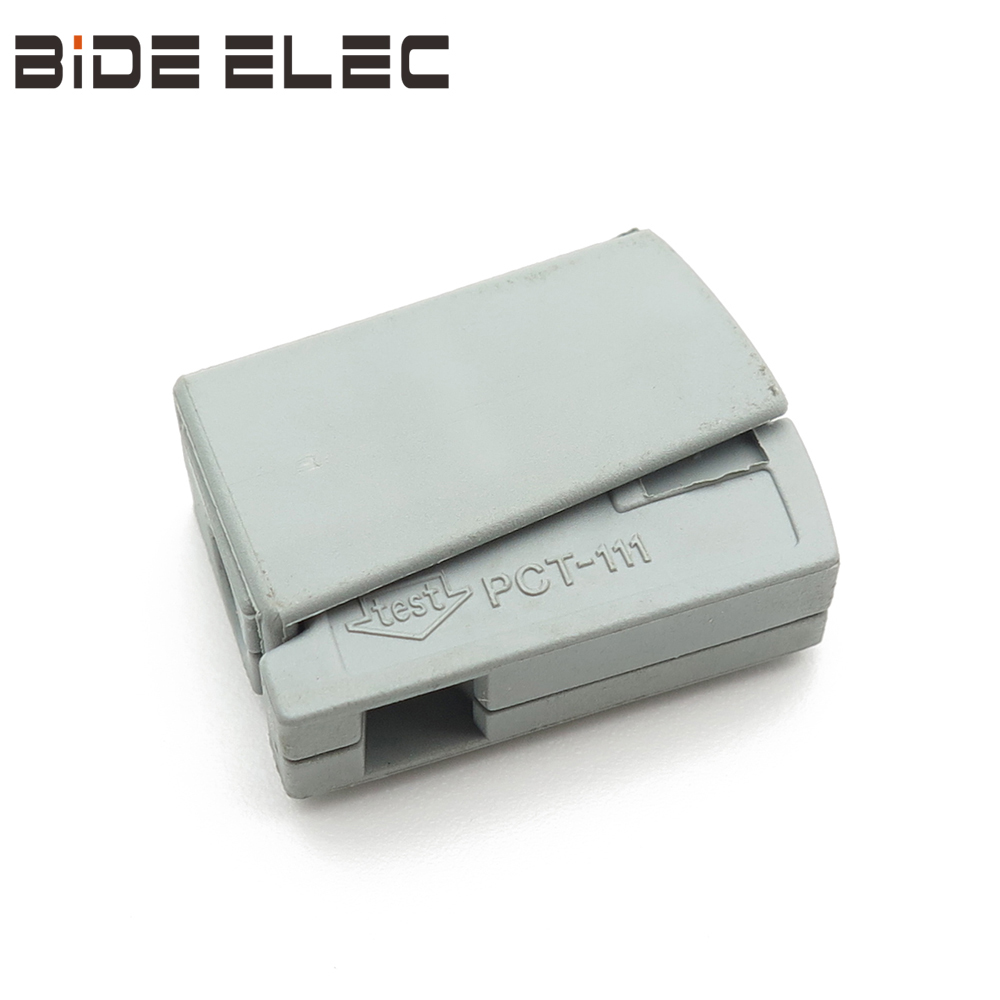

PCT-111 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe or not. If there is something wrong, it can be pulled out by ultra simple operation (round hole: fix the terminal, rotate the wire left and right, pull it out; square hole: push it down, pull it out) ;
PCT-111 can work normally in 85°C environment, and the maximum temperature can reach 105°C；PCT junction box series products can achieve the same functions as WAGO 773 series products, and compared with WAGO, it has the characteristics of low price, reliable performance and high cost performance;
PCT junction box wire connector have 7 types : PCT-102 (WAGO 773-102), PCT-104 (WAGO 773-104), PCT-106 (WAGO 773-106), PCT-108 (WAGO 773-108), PCT-103D (WAGO 773-173), PCT-104D, PCT-111 (WAGO 224-101) ;
PCT junction box terminals are widely used in building electrical wiring. Offline hardware and plumbing stores, building materials wholesalers and general decoration companies have included it in the product sequence to replace the traditional electrical tape wiring mode. With high cost performance and reliable safety, it has been recognized and praised by the majority of customers ;
PCT series price difference factors :
1. Whether the contact surface material is red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmental friendly
8. Whether the injection molding process is exquisite (with or without burr)
9. Whether the finished product packaging is simple and crude

点击购买

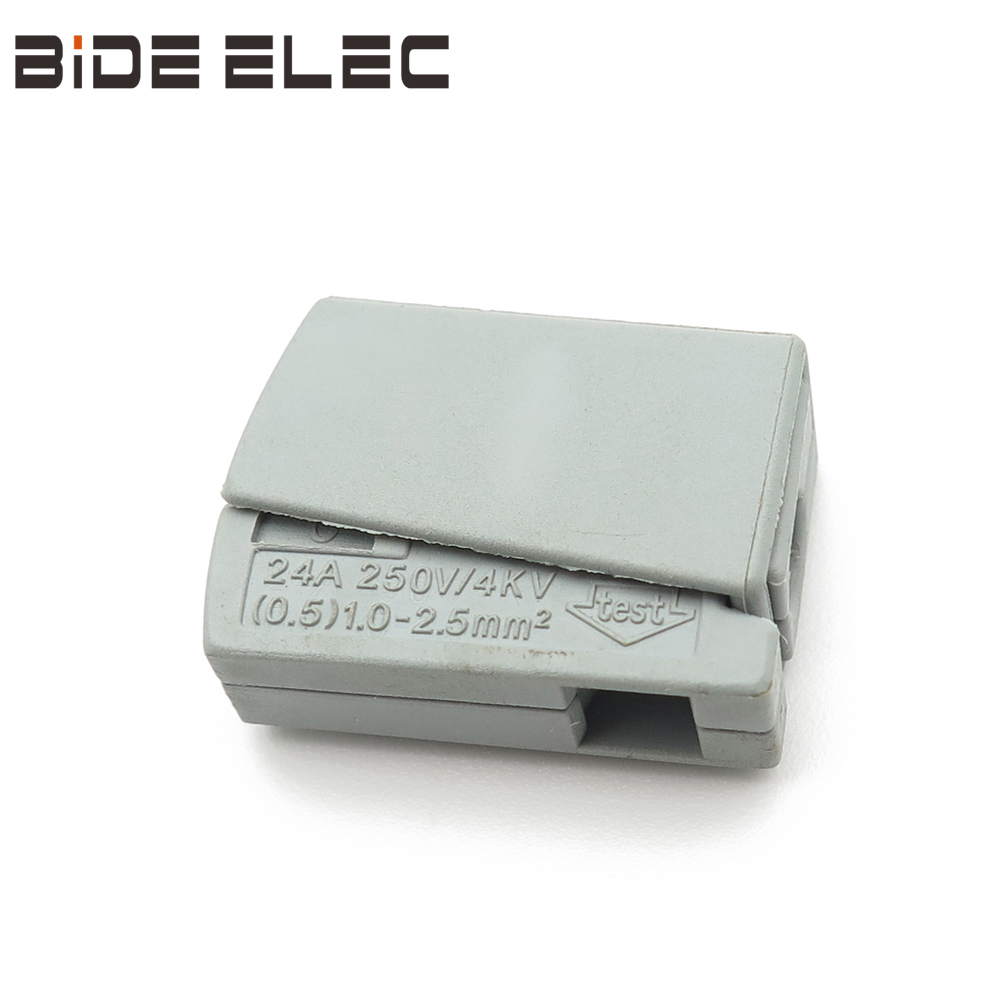

Technical parameters
Rated voltage: 400V
Rated current: 24A
Withstand voltage: 4KV
Applicable wire diameter:
-Power supply side (round hole) : 1.0-2.5mm² single strand hard wire
-Lamp side (square hole) : 0.5-2.5mm² single / multi strand hard and flexible wire
Stripping length: 10mm
Product size: 20.5 * 8.5 * 15.5mm

Material description
Color: gray
Contact surface material: tinned red copper
Clamping material: high grade nichrome spring steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC)

Product certification
Rosh, CE, CQC, etc
