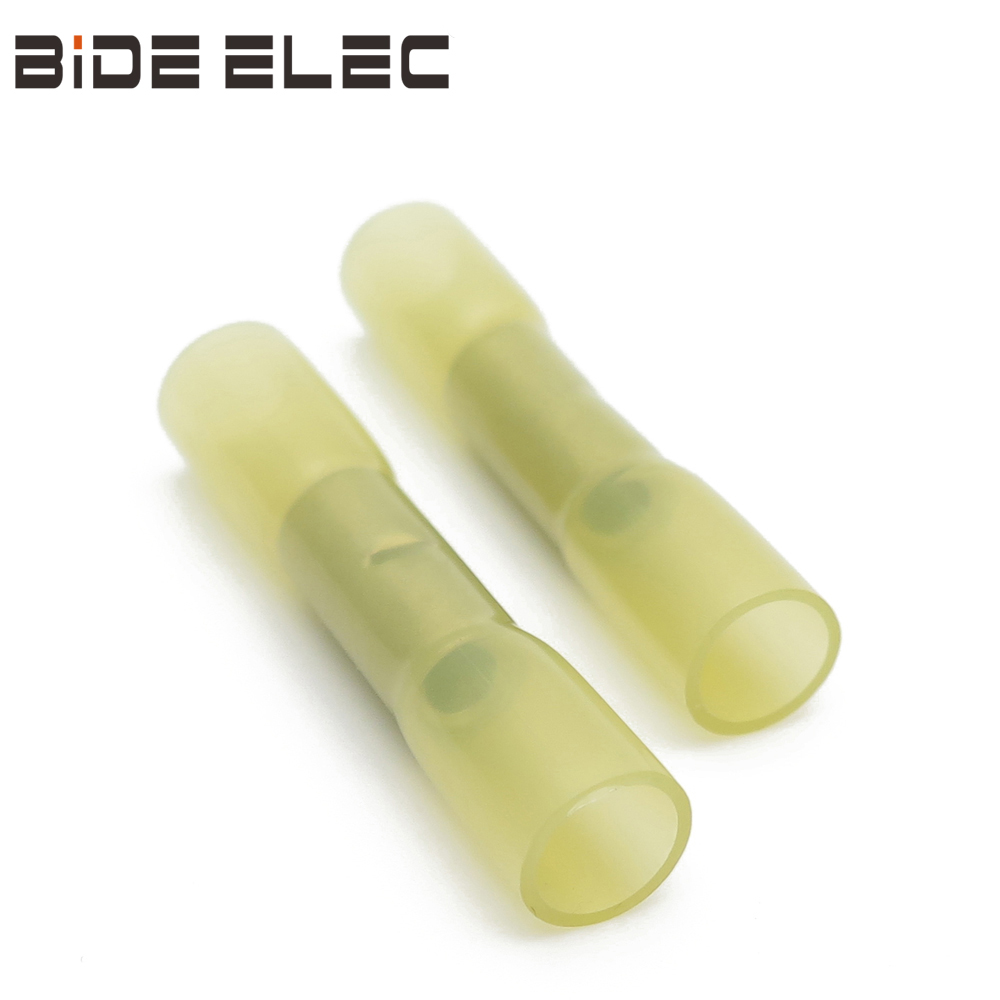

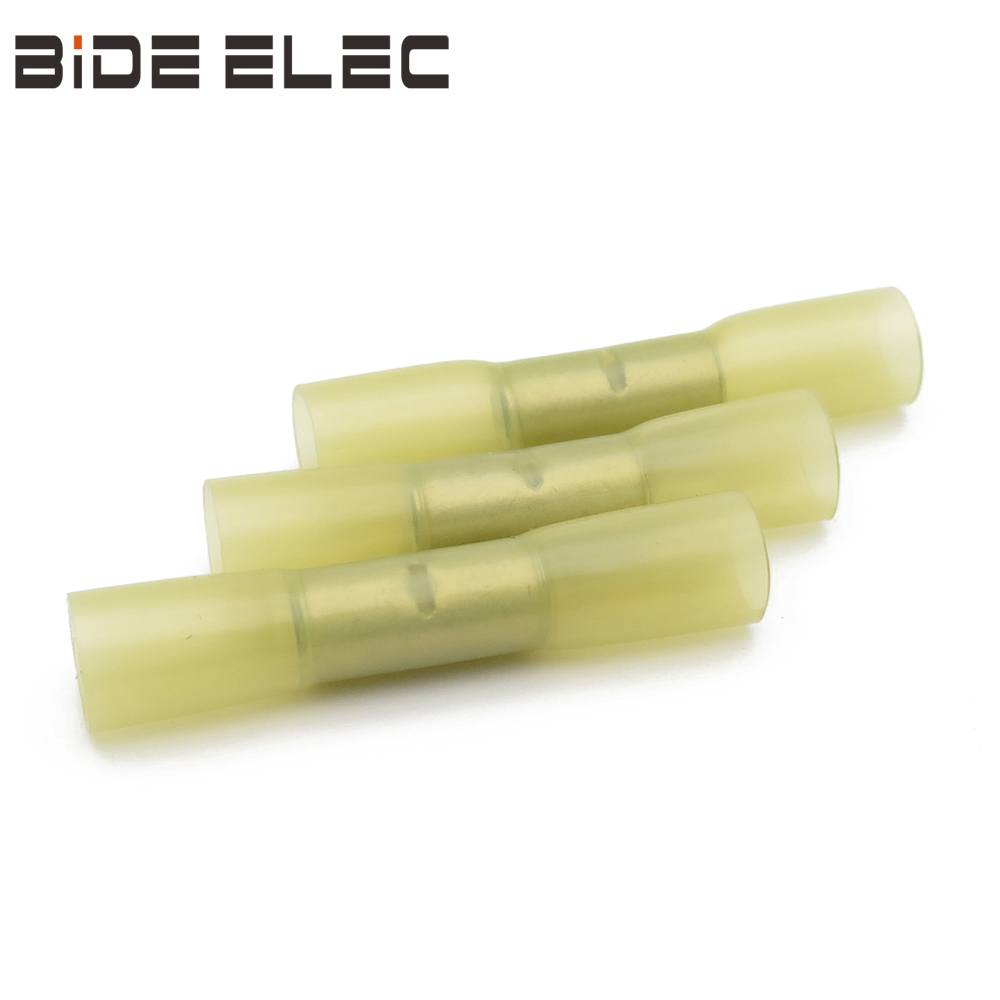

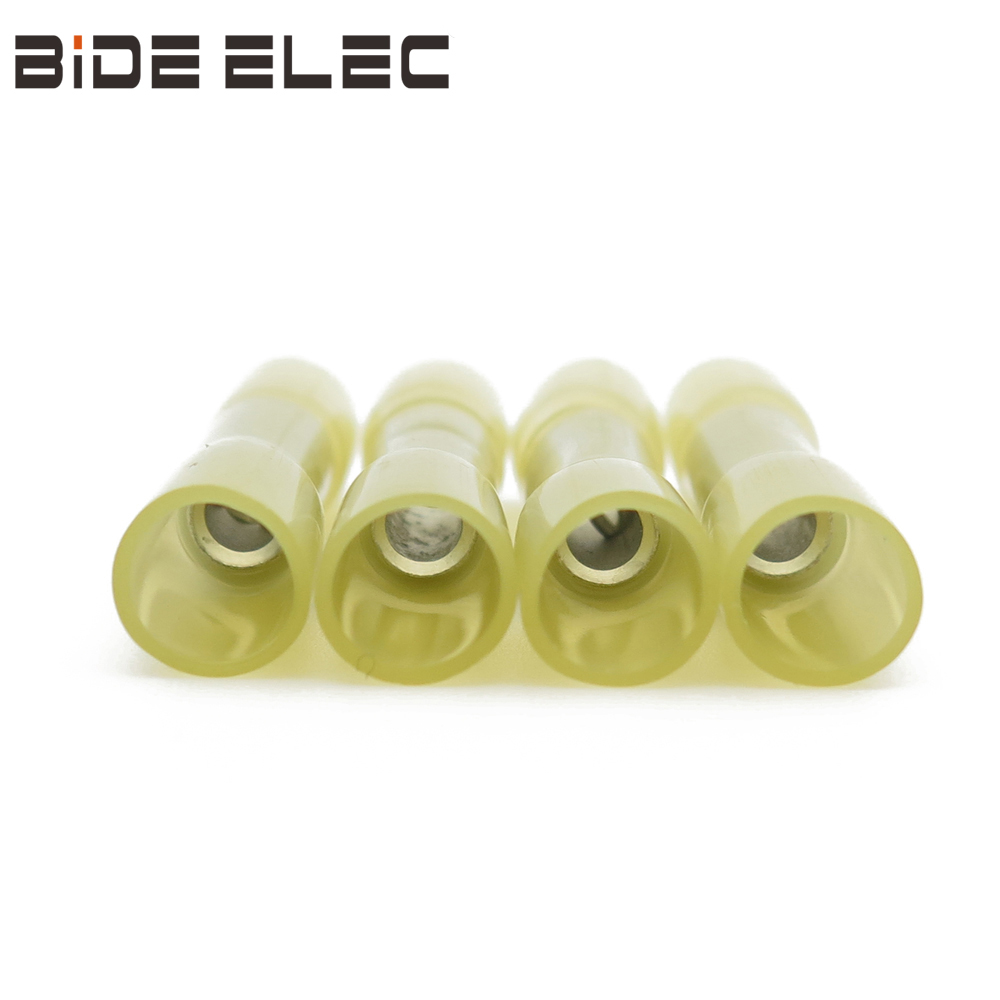

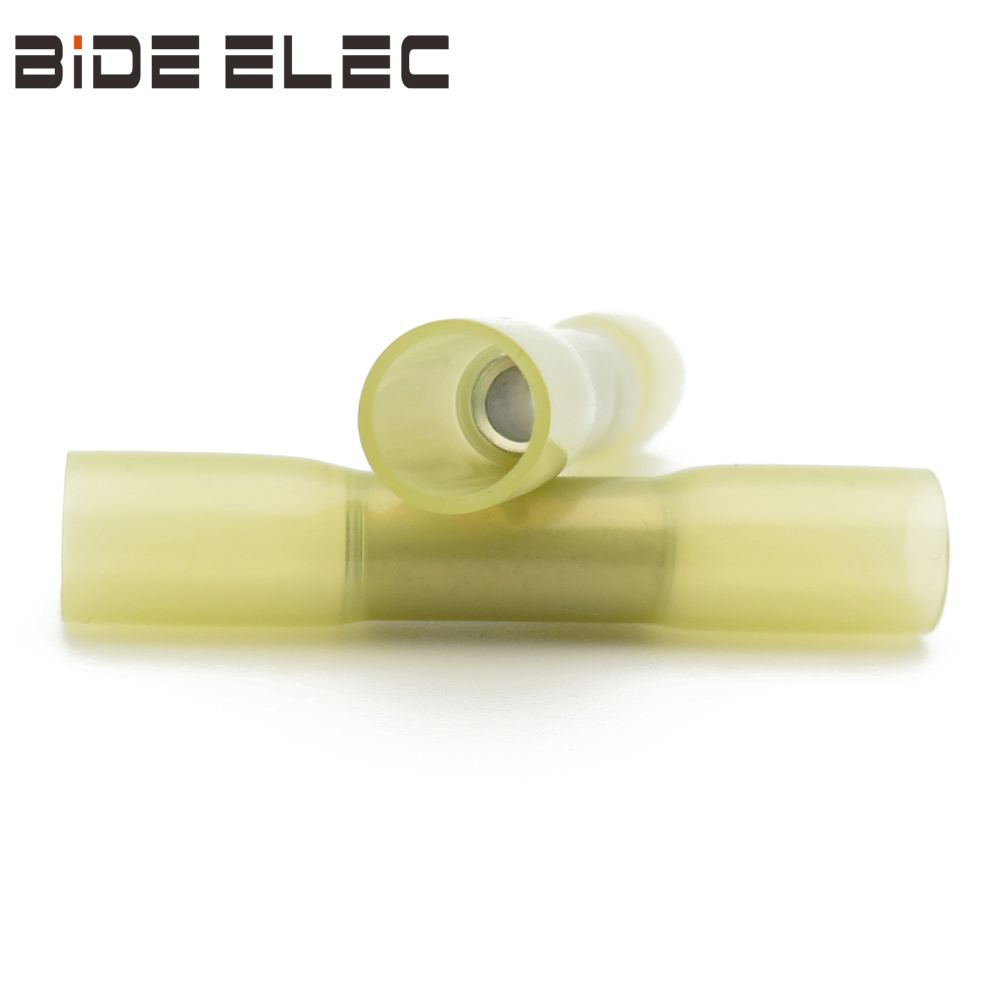

BHT-5.5 Yellow Heat Shrink Insulated Butt Waterproof Connector

Market Price: 0.085

Wholesale Price:$ 0.08

    Heat Shrink Insulated Butt Waterproof Connector, also known as heat shrinkable intermediate pipe, is formed by special double wall heat shrinkable pipe and nickel plated copper as the basic material.
    BHT-5.5 waterproof pipe, yellow, which is made of a new environment-friendly special waterproof double wall heat shrinkable sleeve, which can shrink after heating to meet the standards of waterproof and moisture-proof;
    The inner core of BHT-5.5 heat shrinkable connector is a high-quality tinned copper tube (chamfered), which has the characteristics of high conductivity and stamping resistance;
    BHT-5.5 heat shrinkable intermediate pipe is widely used in automobile wiring harness processing; automobile accessory installation; automobile / truck wire repair and maintenance; submersible pump / drilling motor wire; outdoor lighting / wire and cable intermediate connection, with the characteristics of waterproof, anti salt, anti-corrosion, compression resistance, wear resistance, environmental protection, etc. ;
    BHT-5.5 heat shrinkable intermediate connector is easy to install. After crimping the wires with special tools, the installation is completed by heating the shell until it is completely melted.
    Price difference factors of waterproof and heat shrinkable intermediate connector:
    1. Whether to use red copper
    2. Whether the thickness of red copper is less than the standard value
    3. Whether the red copper has tin plating process
    4. Whether the red copper contact has chamfering process
    5. Whether the heat shrinkable tube is new material
    6. Whether the heat shrinkable tube is environmentally friendly
    Operating temperature range: operating temperature - 55 ℃ ~ +125 ℃, minimum shrinkage temperature 60 ℃, complete shrinkage temperature above 138 ℃, solder complete melting temperature 160 ℃;
    The waterproof and heat shrinkable intermediate terminals can be divided into four types according to the wiring scope: BHT-0.5, BHT-1.25, BHT-2 and BHT-5.5 ;





Usage
Remove the insulation layer of the two ends of the wires to be connected, insert one end of the wires into the heat shrinkable tube, tighten the two strands of wires, move them under the copper strip, use special tools to crimp the copper strip firmly, and heat the heat shrinkable tube until it completely shrinks

Product characteristics
-waterproof, anti leakage
-strong anti-seismic, firm wiring, not easy to loose
-easy to use and reliable

Technical parameters
Applicable wire diameter : 12-10 AWG ; 4.0-6.0mm2
Working temperature: -55°C~+125°C
Initial shrinkage temperature: 80°C
Shrinkage temperature : >160°C

Product size
Thickness of copper tube: 0.9mm
Diameter of copper tube: 3.4mm
Terminal height: 42mm

Material description
Color: yellow
Shell material: new environmental protection special waterproof double wall heat shrinkable sleeve
Contact material: red copper tin plating
