IDEAL 34 Yellow Push In Wire Connector

Market Price: 0.2

Wholesale Price:$ 0.15

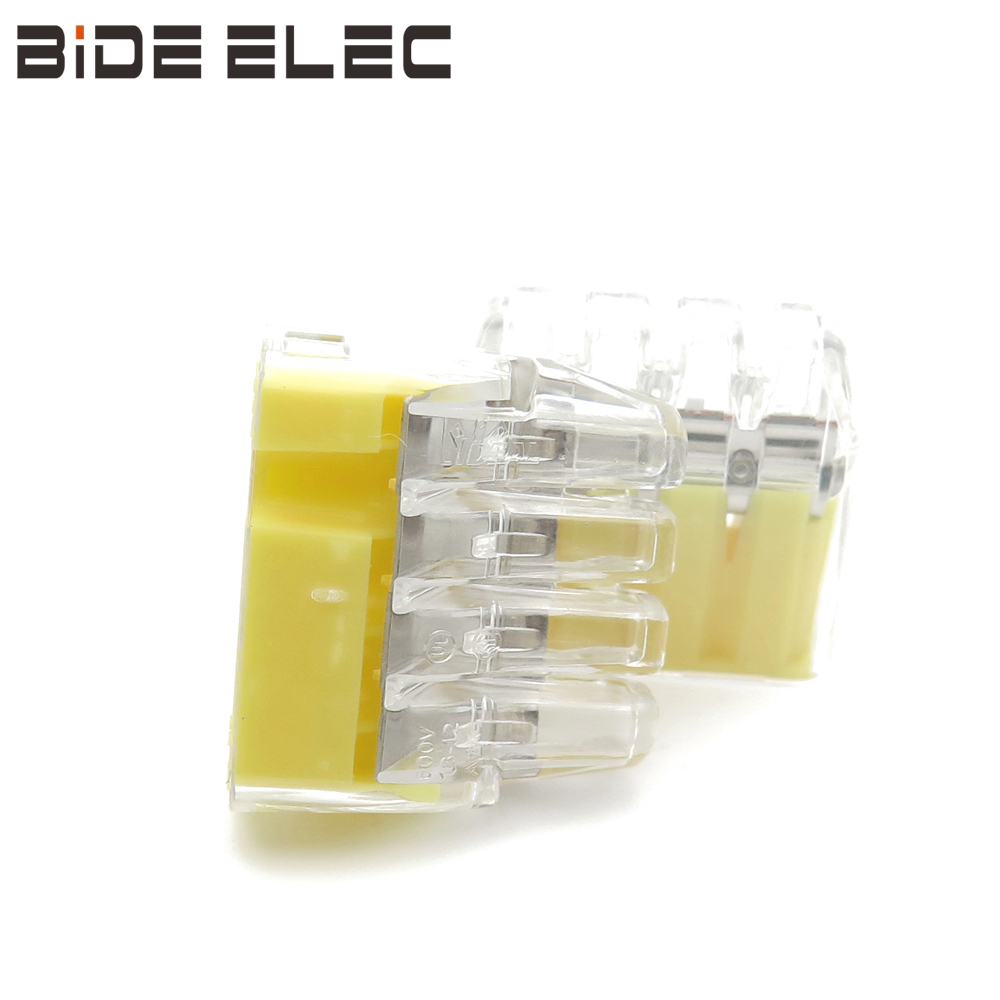

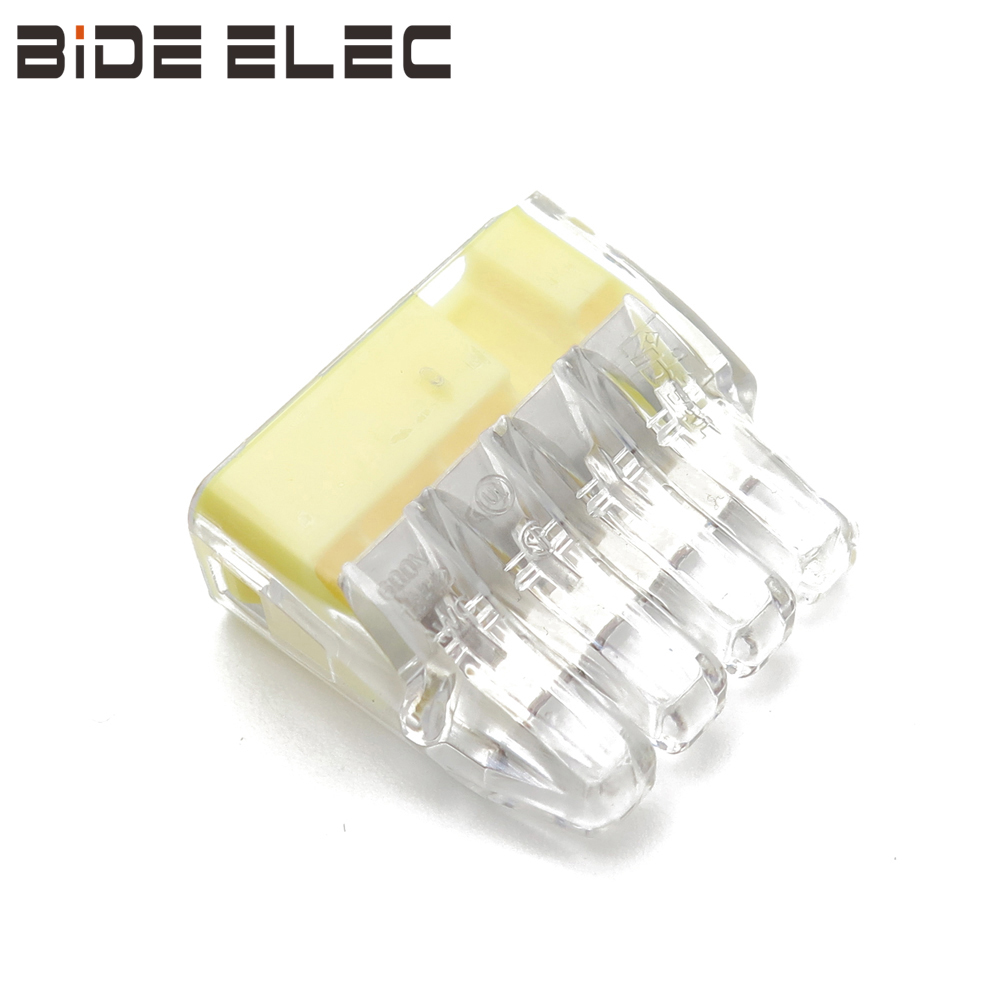

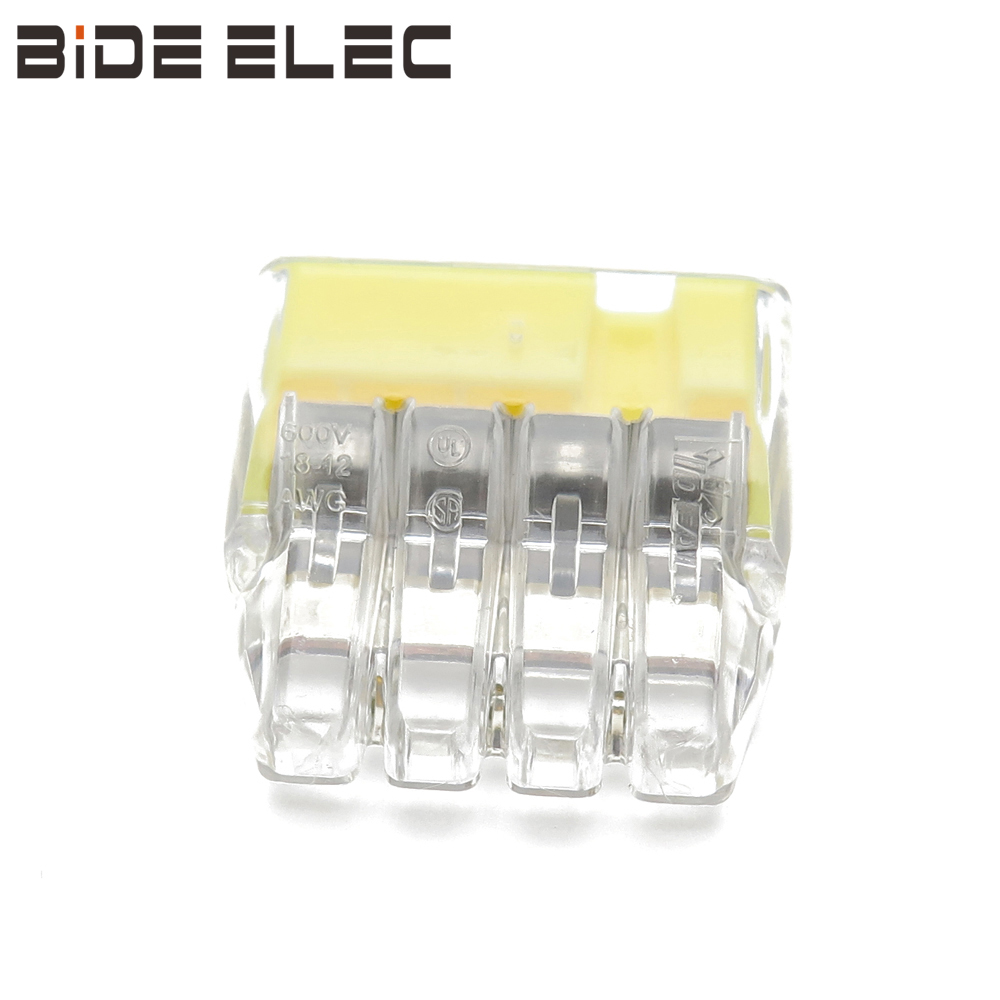

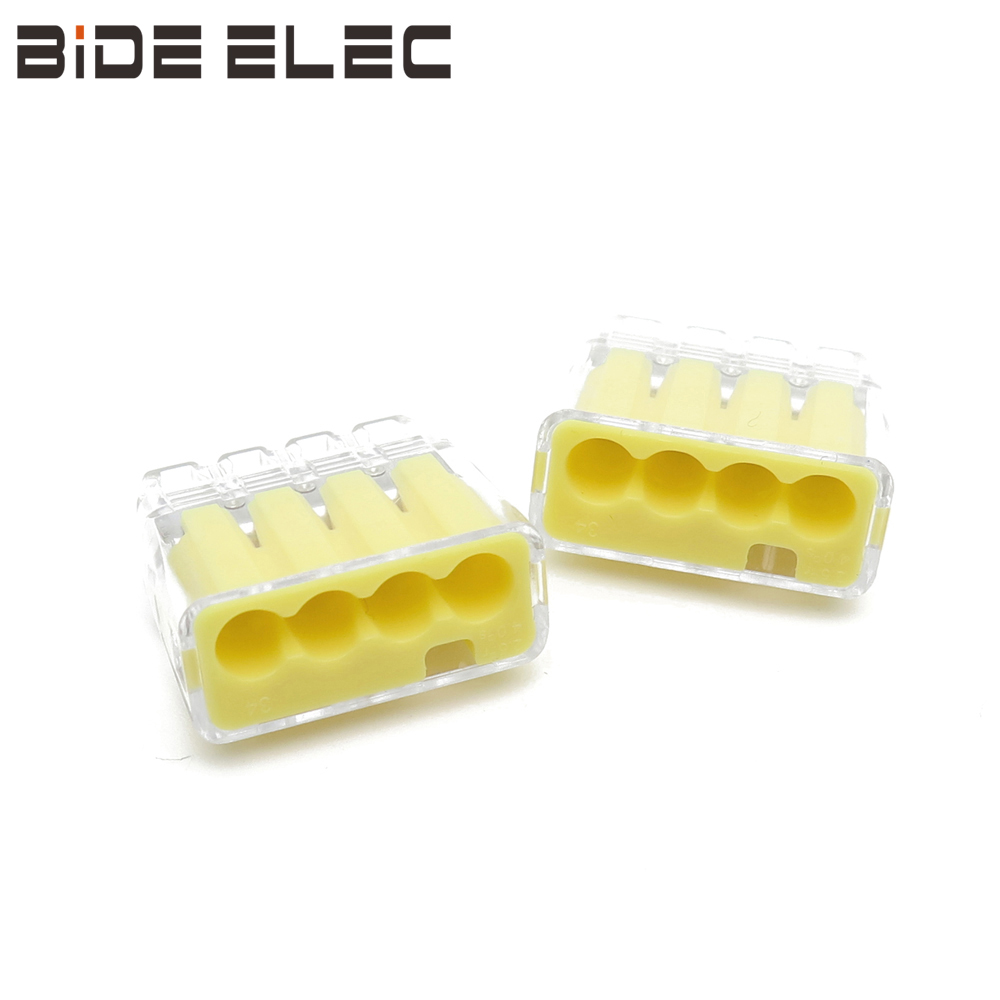

IDEAL 34 is plug-in wire connector, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
IDEAL 34 connector ,yellow face , has four intercommunication holes, suitable for 0.5-2.5mm² single strand hard wire, which easily solves the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
IDEAL 34 terminal with high-quality performance :
1. Scientific design: transparent design, internal wiring is clear ;
2. Exquisite technology: unique conductive plate integrated structure, to ensure the tight connection ;
3. Excellent material: conductive material: high-quality galvanized copper and high-performance spring steel sheet, flame retardant material meets UL94v-2 ;
IDEAL push-in connector series has four models commonly used in China, 30-1032, 30-1033, 30-1034, 30-1039 ;
IDEAL-push-in series products have passed almost global certification requirements, including UL, GB, ROHS, CSA, CE, CQC, etc.;

点击购买

-Plug in connection reduces repeated operation fatigue
-Low power, can plug in and out faster
-Compact and easy to install, it can pass through the 12.5mm round hole and connect more wires
-Transparent shell, easy to check the connection
-Passed 600 / 1000V UL and CSA certification
-Grounding and connection in accordance with ul467 requirements shall be

Technical parameters:
Rated voltage: 600V
Applicable wire diameter: 0.5-2.5mm²
Number of connecting poles: 2
Working temperature: 105 °C

Material description:
Insulation material: Nylon 6.6
Contact material: electrolytic copper

Product certification:
UL, CSA, CE, CQC, etc.
