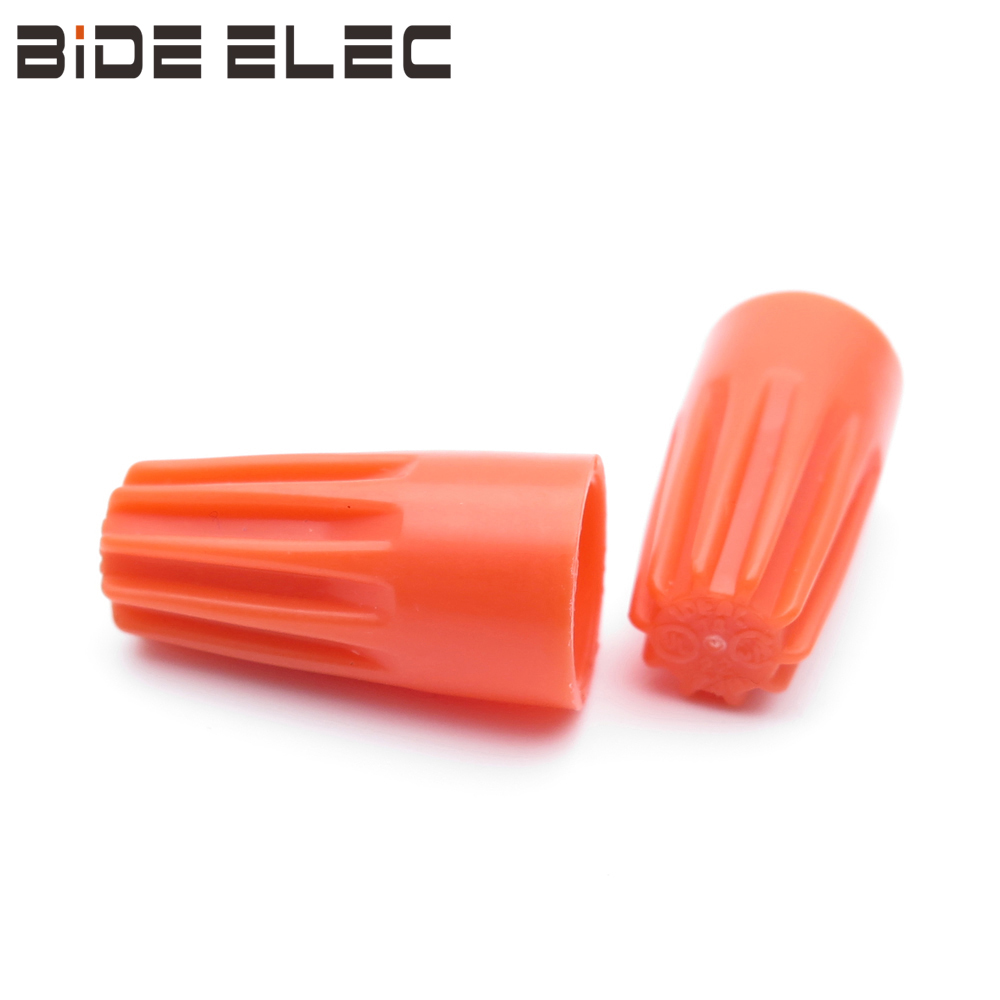

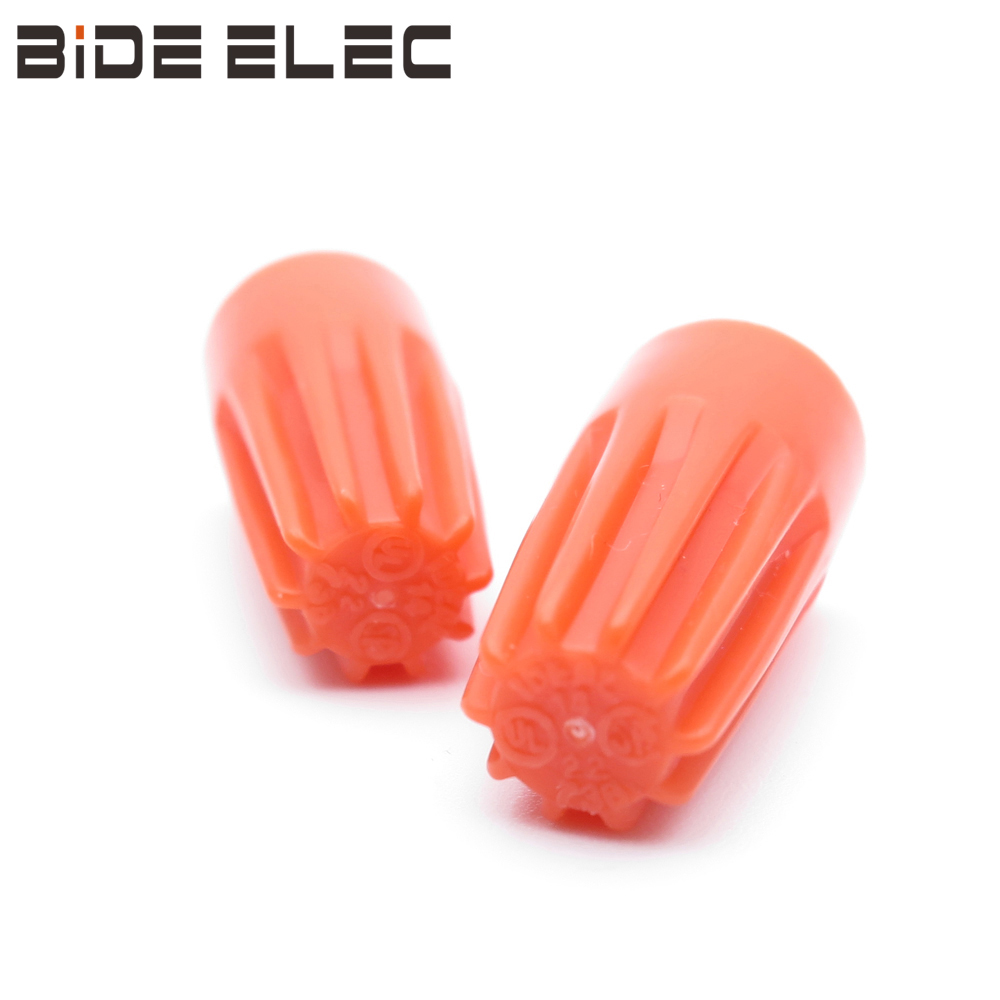

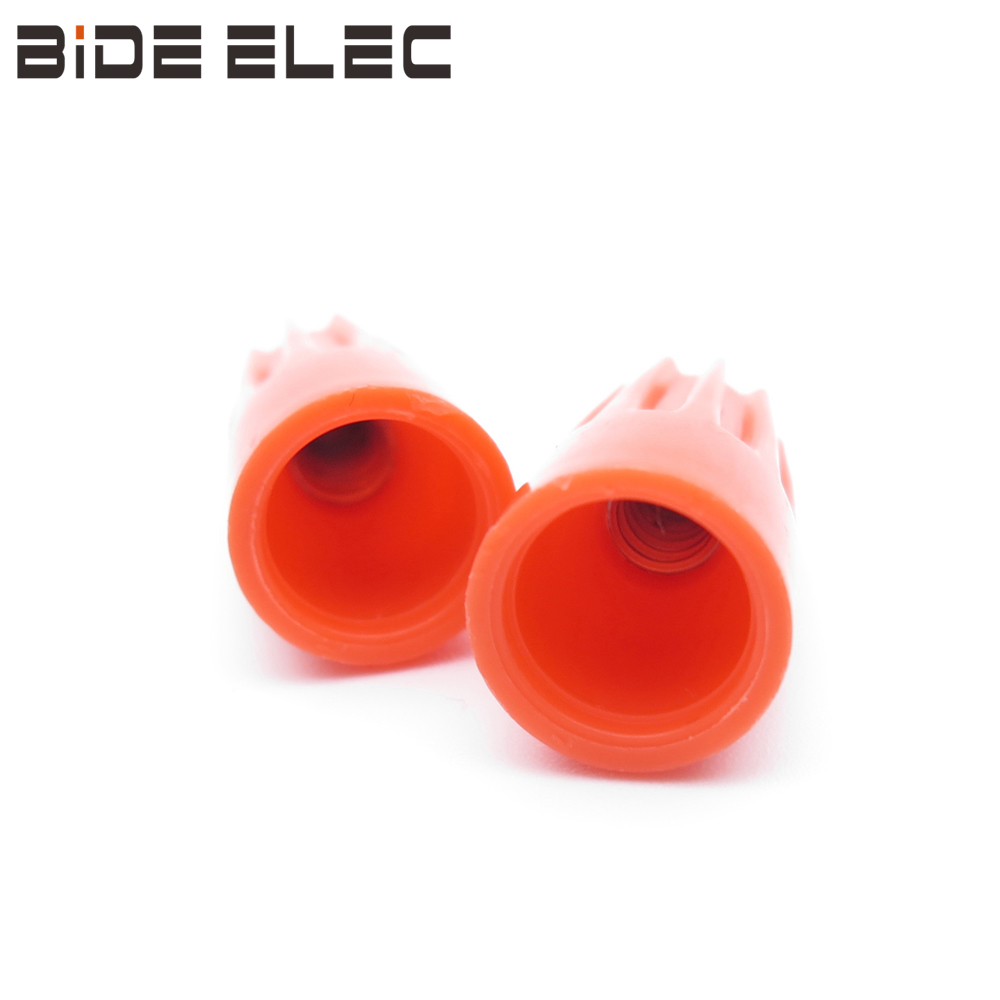

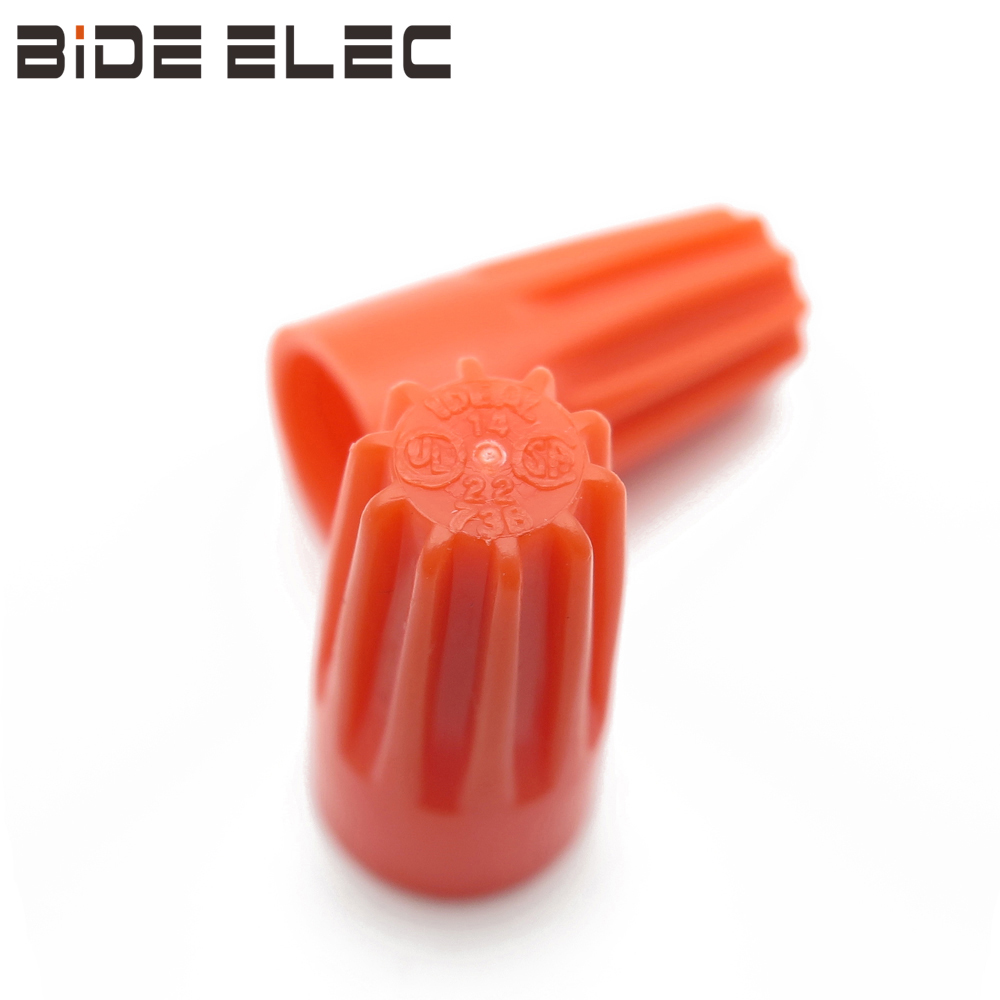

IDEAL 73B Orange Wire Nut Twist-On Connector

Market Price: 0.12

Wholesale Price:$ 0.09

IDEAL 73B is wire nut and wire connector, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
IDEAL 73B connector ,orange face ,has built-in stainless steel wire, which is suitable for the minimum 1 * 0.75mm² single / multi strand soft and hard wires and the maximum 2 * 2.5mm² single / multi strand soft and hard wires, which easily solves the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
IDEAL 73B twist connector is simple, convenient and reliable ;
IDEAL 73B terminal has high-quality performance:
1. Scientific design: square section stainless steel wire design, which can exert holding force on the conductor, make the connector tight and firm, and ensure stable electrical connection;
2. Exquisite technology: hot injection molding process is adopted to avoid falling off between the shell and spring, and eliminate electrical fire hazards;
3. Excellent material: never use recycled plastic The flame retardant materials meet the requirements of UL 94v-2 ;
IDEAL twisted connector series have seven models, IDEAL 73B, IDEAL ZT-115, IDEAL 341, IDEAL 342, IDEAL 452, IDEAL 61, IDEAL 62 ;
IDEAL twist series products have passed almost global certification requirements, including UL, GB, ROHS, CSA, CE, CQC, etc. ;

点击购买

-Stainless steel inner core with square cross section provides the highest quality grip effect
-Help design and installation more labor-saving
-It conforms to iec60998-2-4 specification and has passed 300V / 600V UL and CSA certification
-The application of grounding and connection meets the requirements of UL 467
-Reusable

Technical parameters:
Rated voltage: 600V
Applicable wire diameter: Min 1 * 0.75, Max 2 * 2.5
Working temperature: 105 °C

Material description:
Insulation material: Polypropylene
Material of inner core: stainless steel

Product certification:
UL, CSA, CE, CQC, etc.

For more details, please click IDEAL 73B
