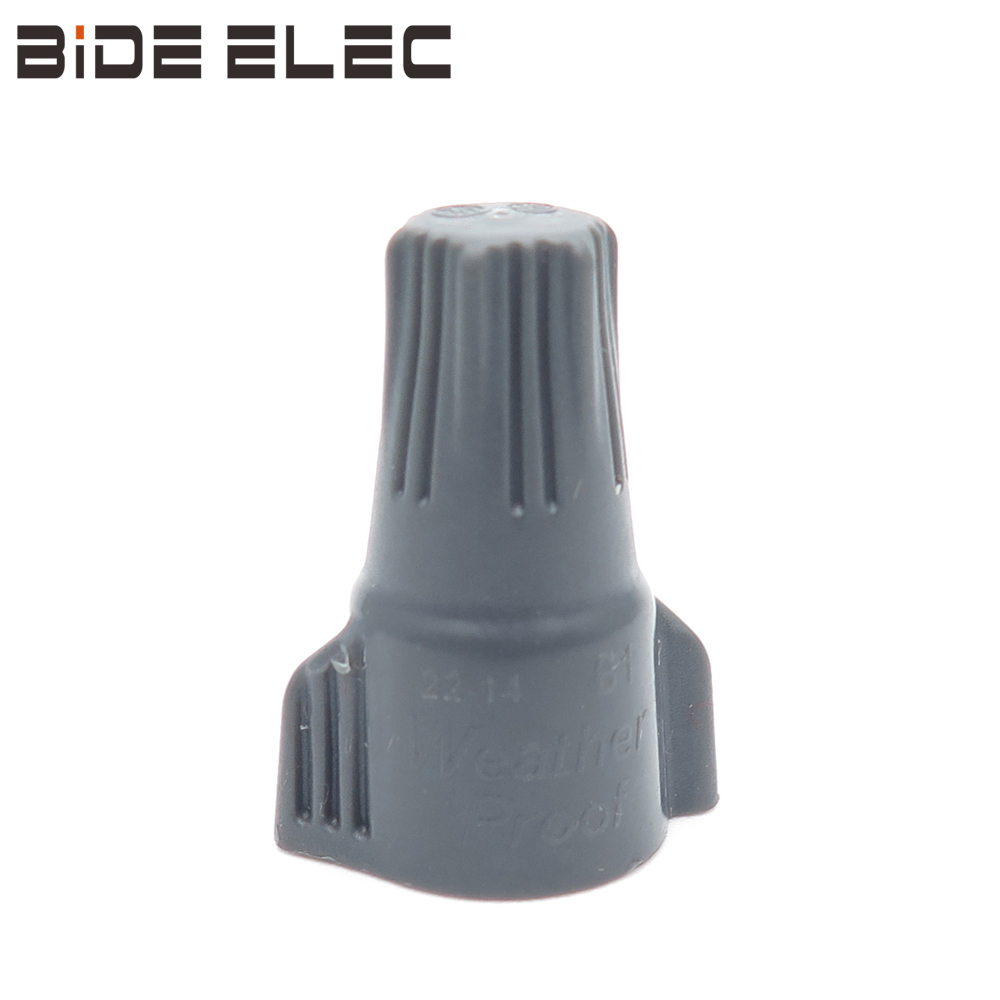

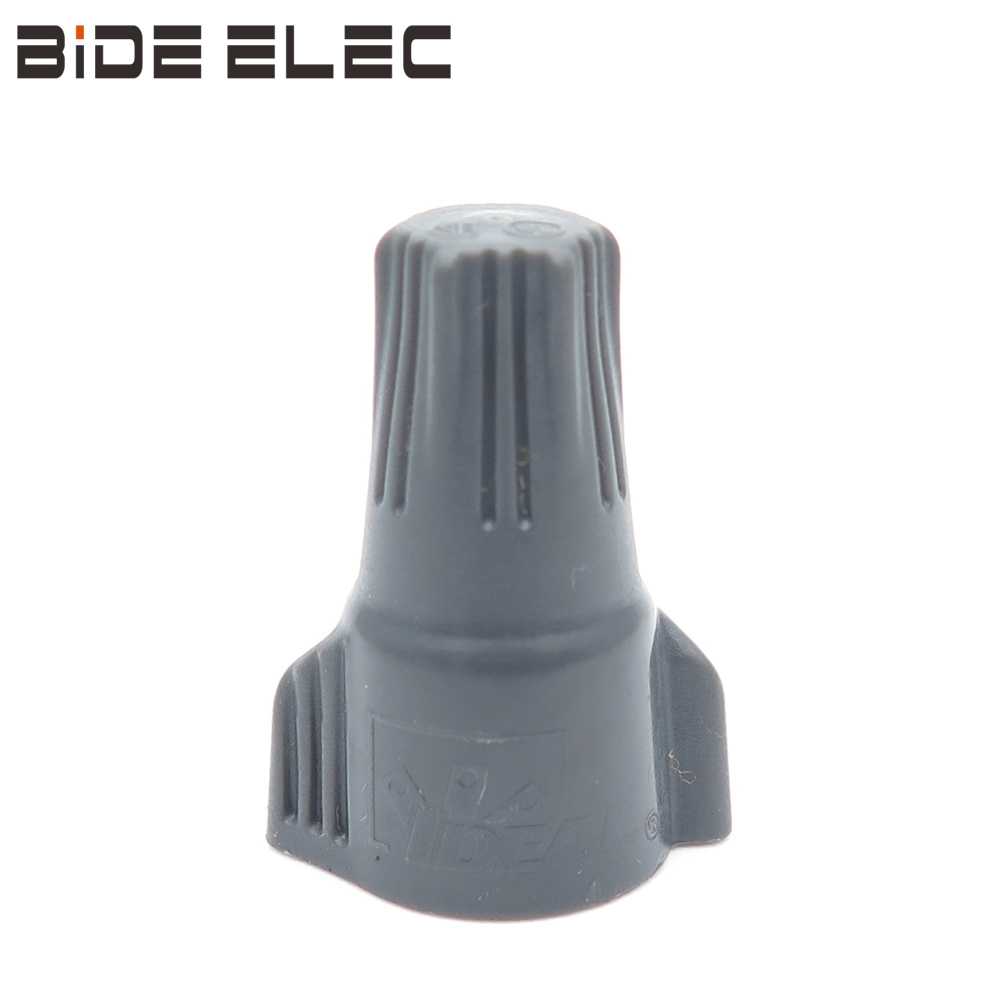

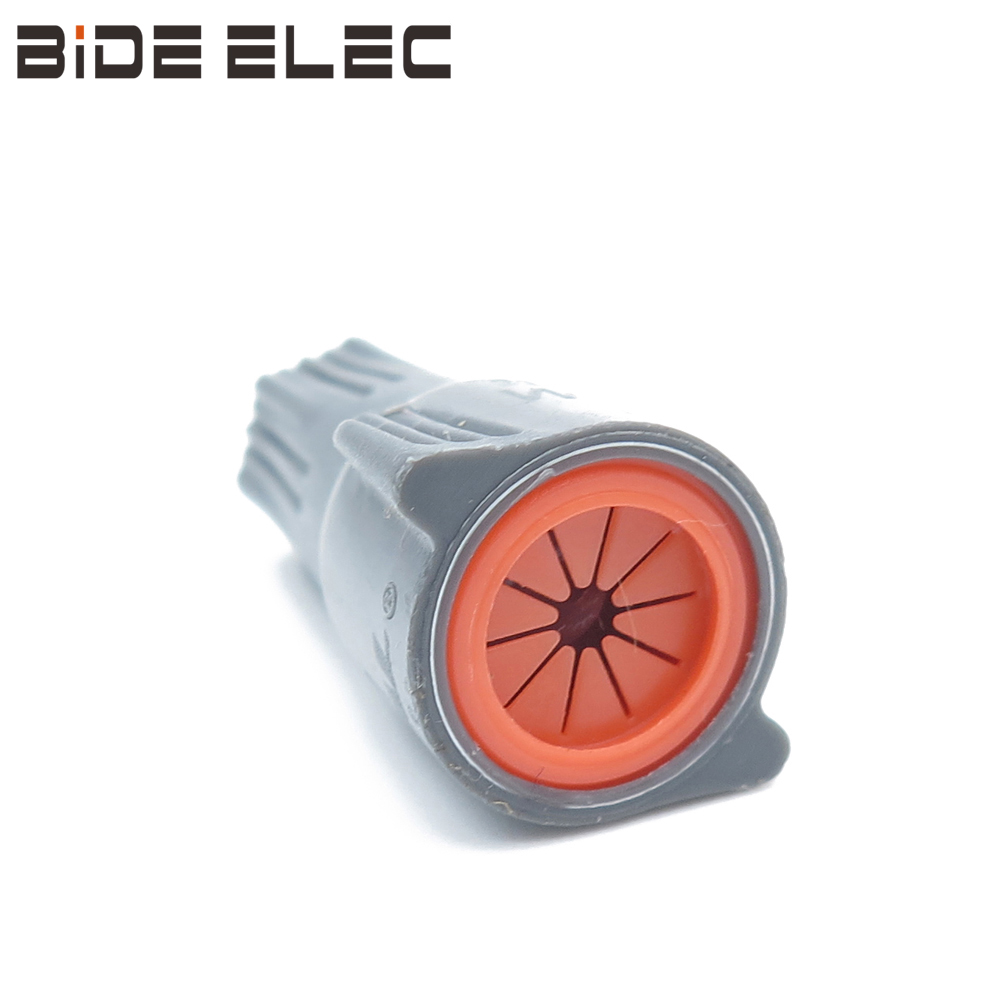

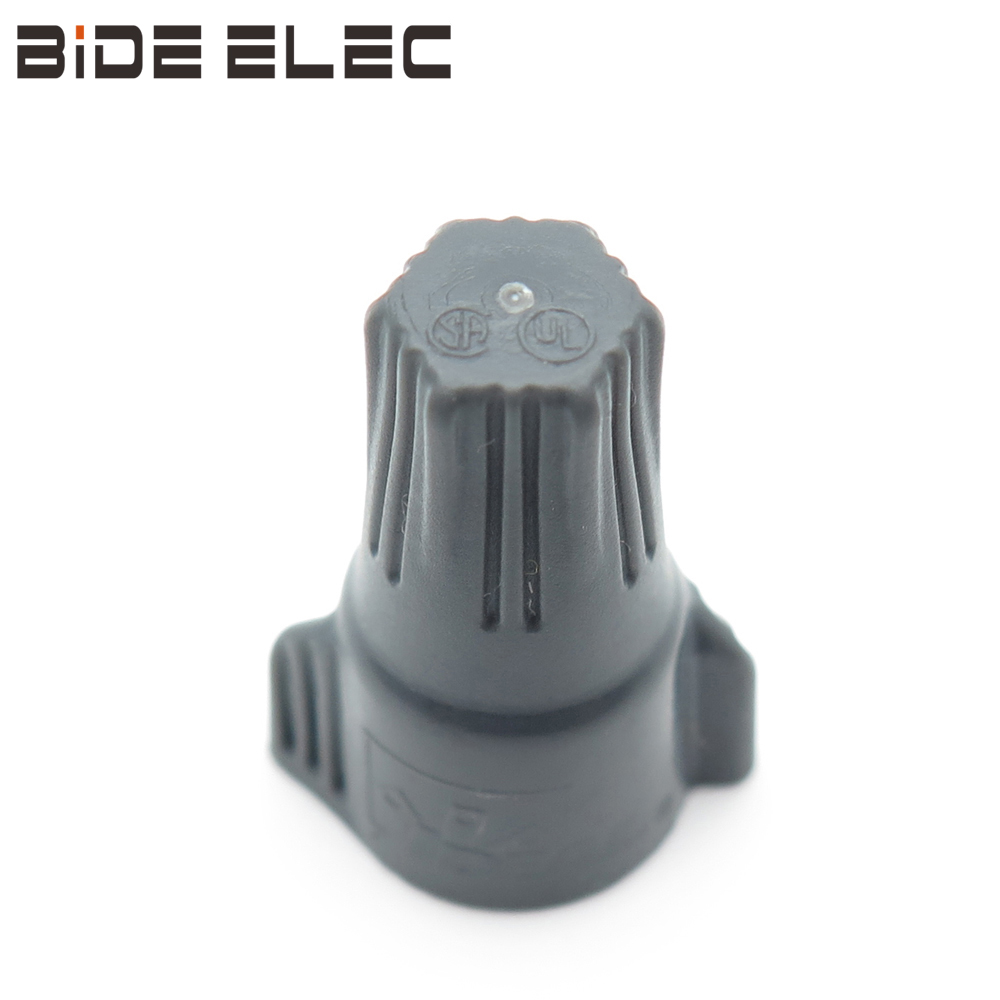

IDEAL 61 Deep Gray Water Proof Under Ground Wing Nut Wire Connector

Market Price: 0.95

Wholesale Price:$ 0.87

IDEAL 61, is waterproof twist wire connector, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;
IDEAL 61 waterproof connector ,deep gray face ,has built-in stainless steel wire, which is suitable for the minimum 2 * 0.5mm²single / multi strand soft and hard wires, and the maximum 2 * 2.5mm² single / multi strand soft and hard wires, which easily solves the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, improves the wiring efficiency and increases the safety ;
IDEAL 61 terminal has high-quality performance :
1. Scientific design: the interior is pre filled with 100% silicone grease, which can effectively prevent dust, moisture and corrosion ;
2. Exquisite technology: the hot injection molding process is adopted to avoid falling off between the shell and the spring, and the shell is thicker and more compression resistant to ensure the lasting and stable connection ;
3. Excellent material: never use recycled plastic, flame retardant materials UL 94v-2 ;
IDEAL twisted connector series have seven models, IDEAL 73B, IDEAL ZT-115, IDEAL 341, IDEAL 342, IDEAL 452, IDEAL 61, IDEAL 62 ;

IDEAL series products have passed almost global certification requirements, including UL, GB, ROHS, CSA, CE, CQC, etc. ;

点击购买

-Suitable for indoor and outdoor electrical connection, especially suitable for humid or rainy environment
-Sealing waterproof silicone grease to realize moisture and corrosion resistance of connection point
-Comply with UL 486d requirements for connectors in indoor and outdoor damp proof and humid environment
-Easy to use, pre filled waterproof silicone grease twisted wire connector
-3 models for # 22 to # 6 AWG copper wire connections
-Assist in design and installation
-Square section stainless steel core provides the highest quality grip
-Hexagonal shell, which can be quickly installed with auxiliary tools

Technical parameters:
Rated voltage: 600V
Applicable wire diameter: Min 2 * 0.5mm², Max 2 * 2.5 mm²
Working temperature: 105 °C

Material description:
Insulation material: Polypropylene
Material of inner core: stainless steel

Product certification:
UL, CSA, CE, CQC, etc.
