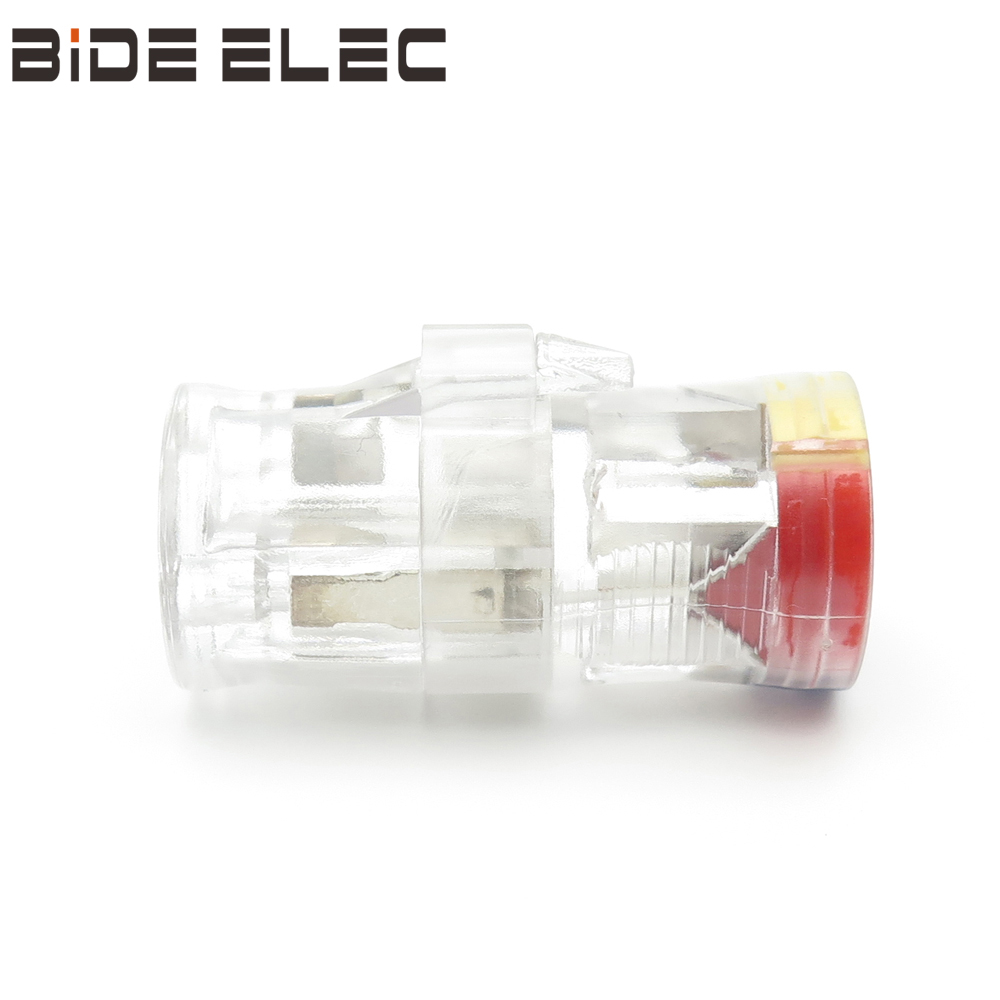

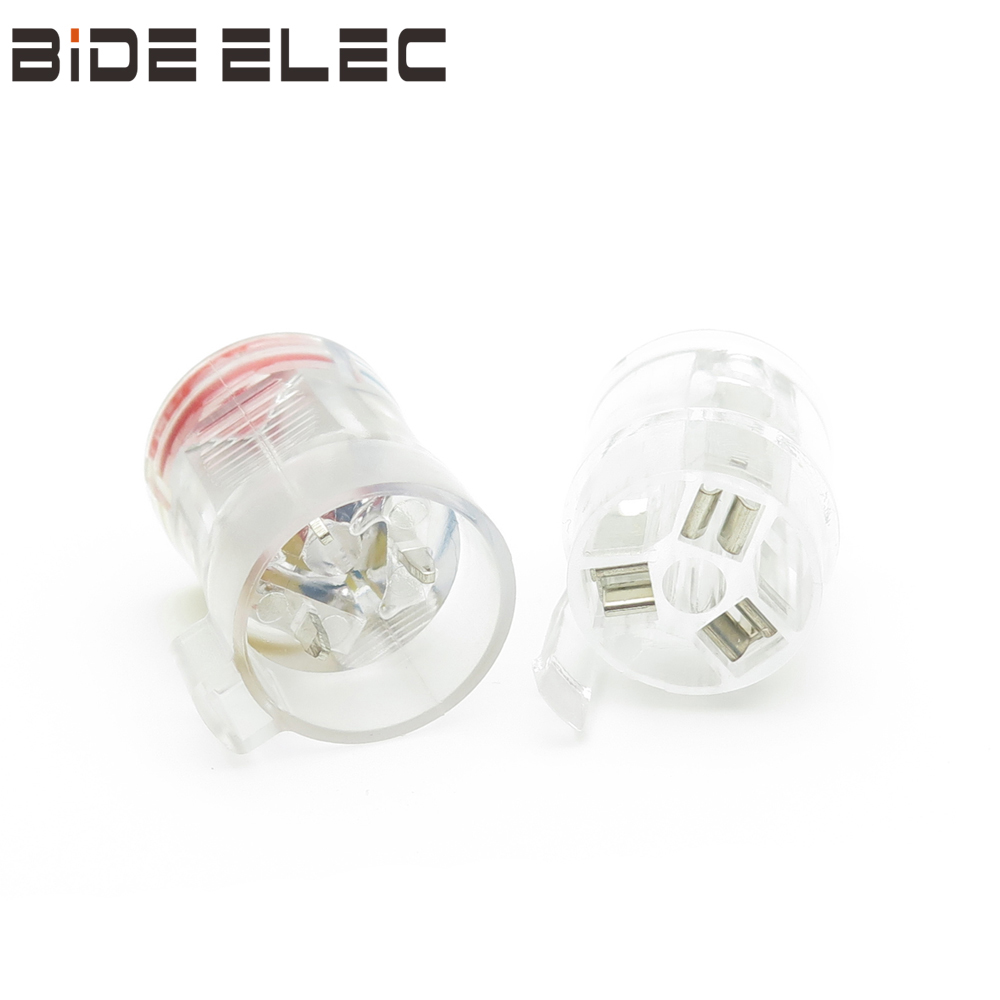

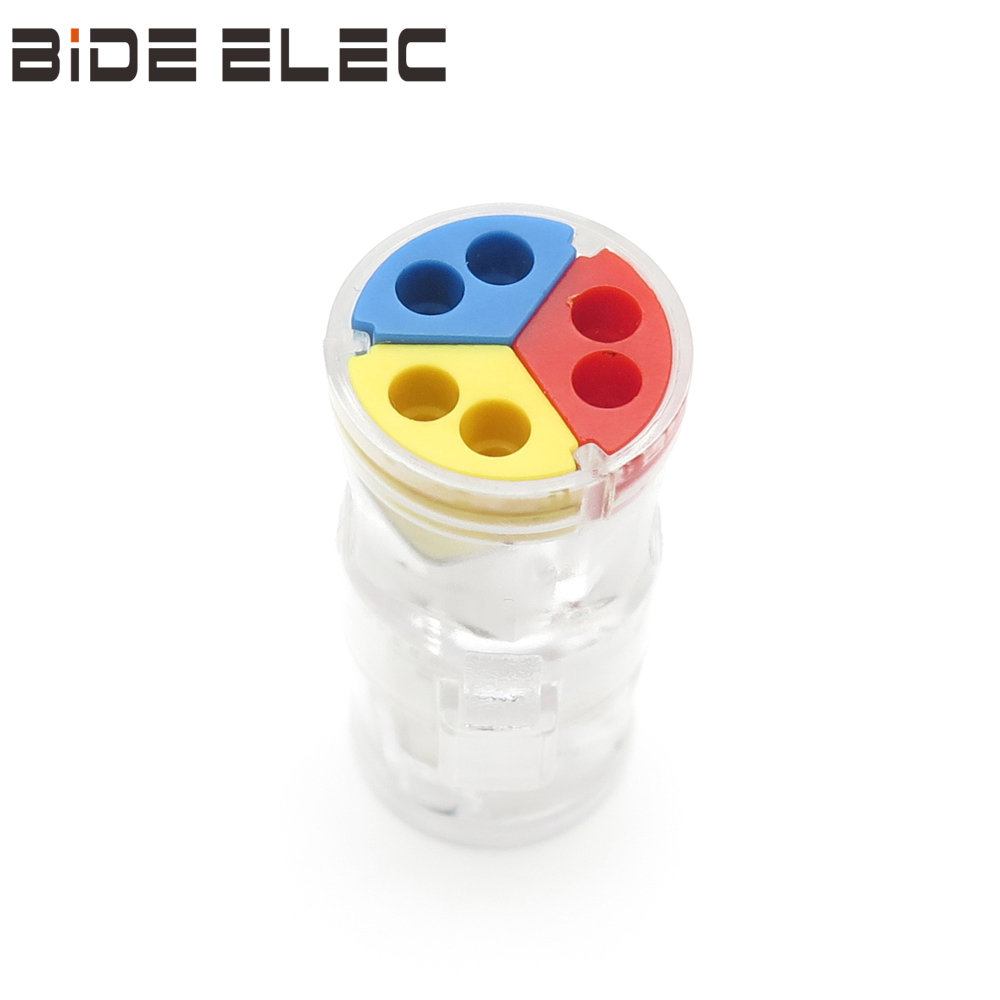

LT-736 Luminaire Disconnect Wire Connector 3 In 6 Out For LED

Market Price: 0.45

Wholesale Price:$ 0.37

LT-736 is luminaire disconnect connector, can be described as plug-in connector, 50 pieces / box;
LT-736 split lighting connector can be disconnected and inserted, and single strand hard wire 0.75mm² can be connected at 3 holes side ; single strand hard wire 0.75-4.0mm2 or multi strand stranded wire 1.5-2.5mm² can be connected at 6 holes side , which is more convenient and safer for quick wiring and installation of large lamps ;
LT-736 split wire terminal has its own electricity measuring hole. After wiring, you can use the electric pen to check whether it has been safely connected. If there is something wrong, you can use the ultra simple operation (fix the terminal, rotate the wire left and right, pull it out) ;
LT-736 paralleler can work normally in 60 °C environment, and the maximum temperature can reach 105 °C ;
Split sub-line connector can achieve the same functions as WAGO 873 series products, but compared with WAGO, they have the characteristics of low price, reliable performance and high performance price ratio ;
Luminaire disconnect connector have 2 types : LT-724 (WAGO 873-902) and LT-736 (WAGO 873-903) ;

点击购买

Different manufacturers take different price based on following factors :
1. Whether the contact surface material is made of red copper
2. Whether the thickness of red copper is less than the standard value
3. Whether the red copper has tinning process
4. Whether the clamping material is high-grade spring steel
5. Whether the thickness of spring steel is less than the standard value
6. Whether the shell material is new
7. Whether the shell material is environmentally friendly
8. Whether the injection molding process is exquisite
9. Whether the finished product packaging is simple and crude

Technical parameters
Rated voltage: 400V
Rated current: 6A
Rated pulse voltage: 4KV
Connection side (1): plug
Applicable wire diameter: 6 * 0.75-4.0mm² single strand hard wire; 6 * 1.5-2.5mm² multi strand stranded wire
Stripping length: 11-13mm
Connection side (2): socket
Applicable wire diameter: 3 * 0.75mm² single strand hard wire
Stripping length: 9-11mm

Material description
Conductive material: tinned red copper
Contact surface material: tin alloy coating
Clamping material: high grade stainless steel
Shell material: new environment-friendly nylon 6.6 (pa6.6); new environment-friendly polycarbonate (PC)

Product certification
Rosh, CE, CQC, etc
