WAGO 2273-205 Installation Terminal Blocks And Compact Push Wire Connector

Market Price: 0.21

Wholesale Price:$ 0.17

WAGO 2273-205 is universal connector, named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;

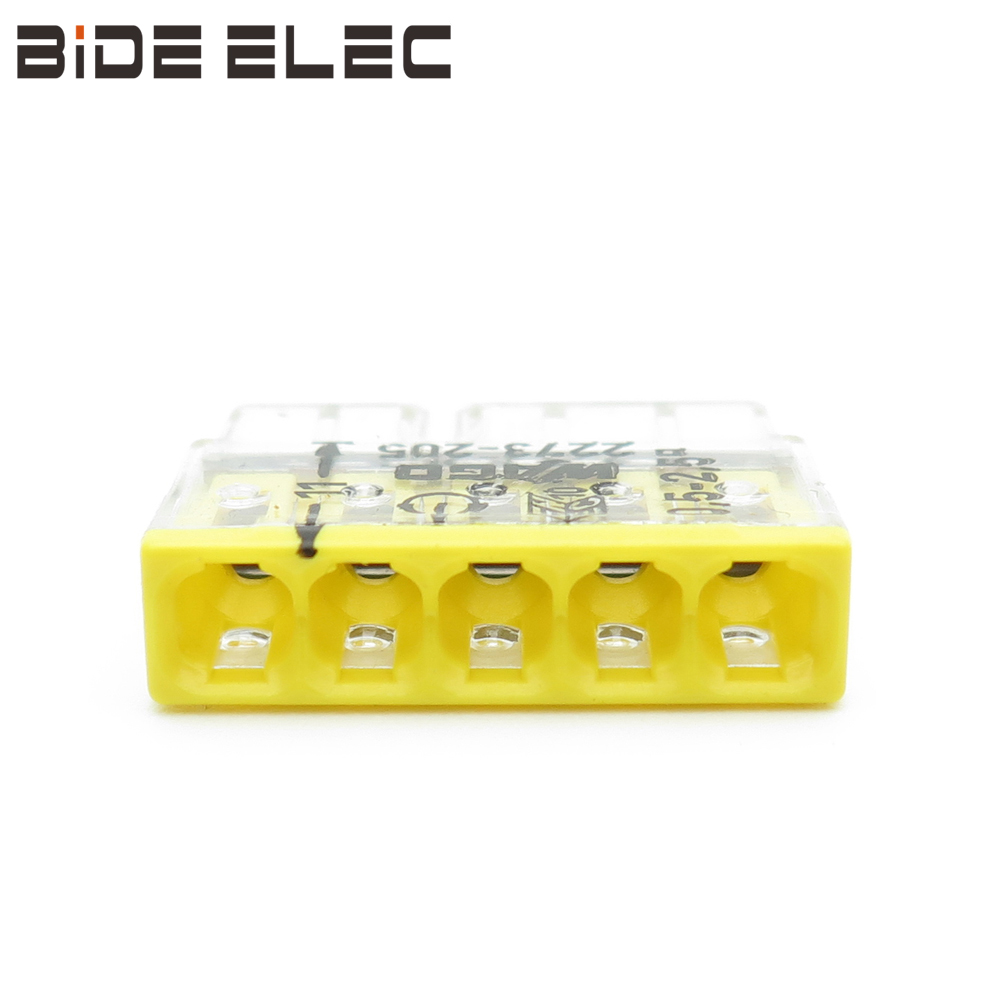

WAGO 2273-205 connector ,yellow face,has five interconnected holes, which can connect single strand or multi strand stranded wires 0.5-2.5mm2, replacing the traditional chicken claw wiring, tinning and electric tape process, improving the beauty and wiring efficiency, and increasing the safety; compared with 773 series, the volume is reduced by 60%, so that there is more space for heat dissipation in the junction box ;

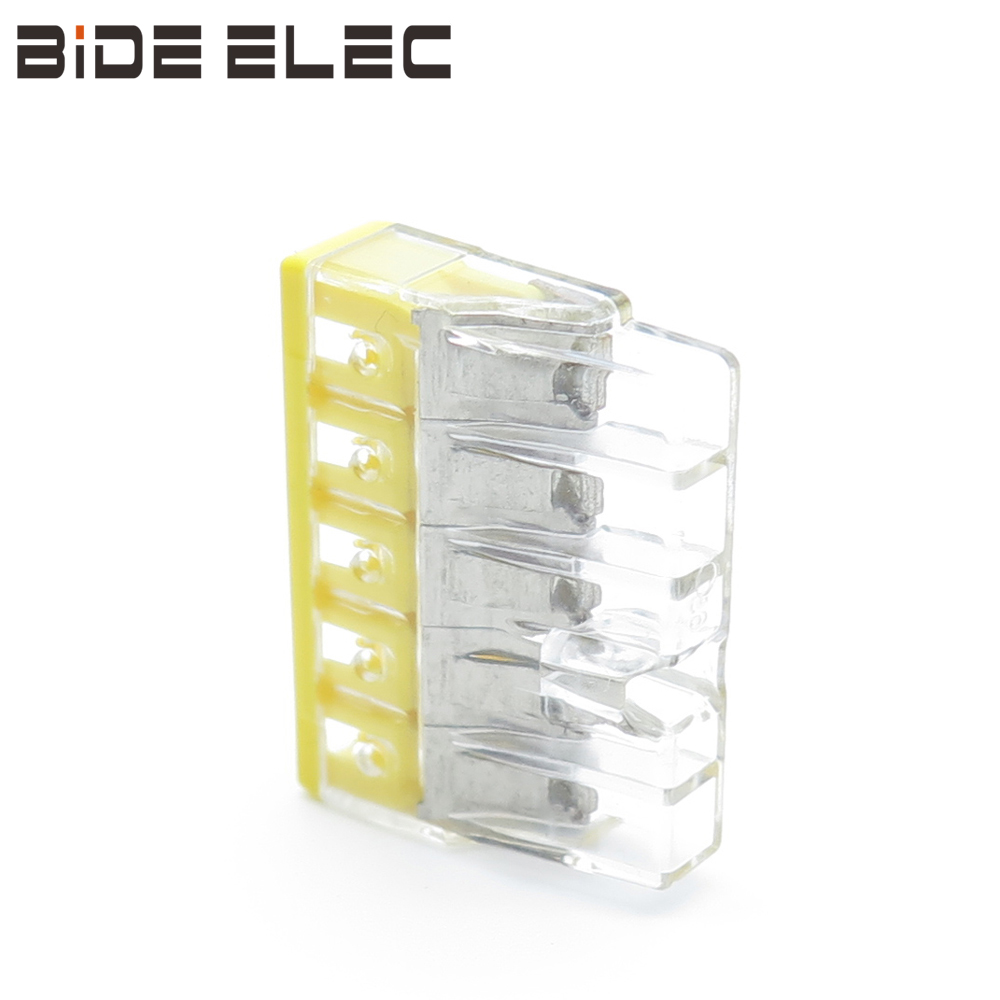

WAGO 2273-205 terminal has a nylon 66 transparent shell, which makes the internal wiring situation of the terminal clear, and the terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether it has been safely connected. If there is anything wrong, it can be pulled out with ultra simple operation (fix the terminal, rotate the wire from left to right and pull it out) ;
WAGO 2273-205 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 2273 series connectors have five models, 2273-202, 2273-203, 2273-204, 2273-205 and 2273-208 ;
WAGO 2273 series products have passed the certification requirements covering almost the whole world, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V
Rated current: 24A
Rated power: 5KW
Applicable wire diameter: 0.5-2.5mm² single stranded hard wire
Stripping length: 11mm
Product size: 16.7 * 22 * 5.8mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.

For more details, please click 2273-205
