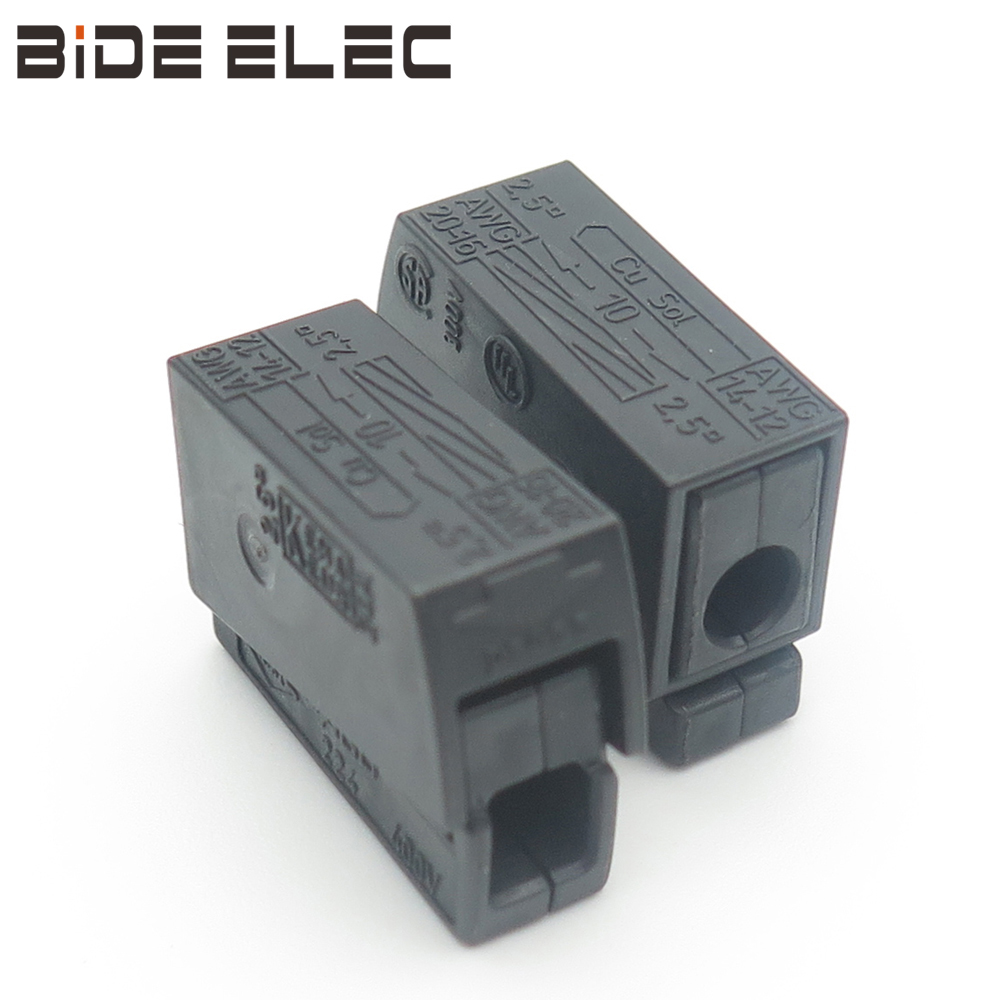

WAGO 224-104 Lighting Fixture Connector Resistant High Temperature

Market Price: 0.28

Wholesale Price:$ 0.20

WAGO 224-104 is connector for high temperature resistant lighting appliances, named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 100 pieces / box ;

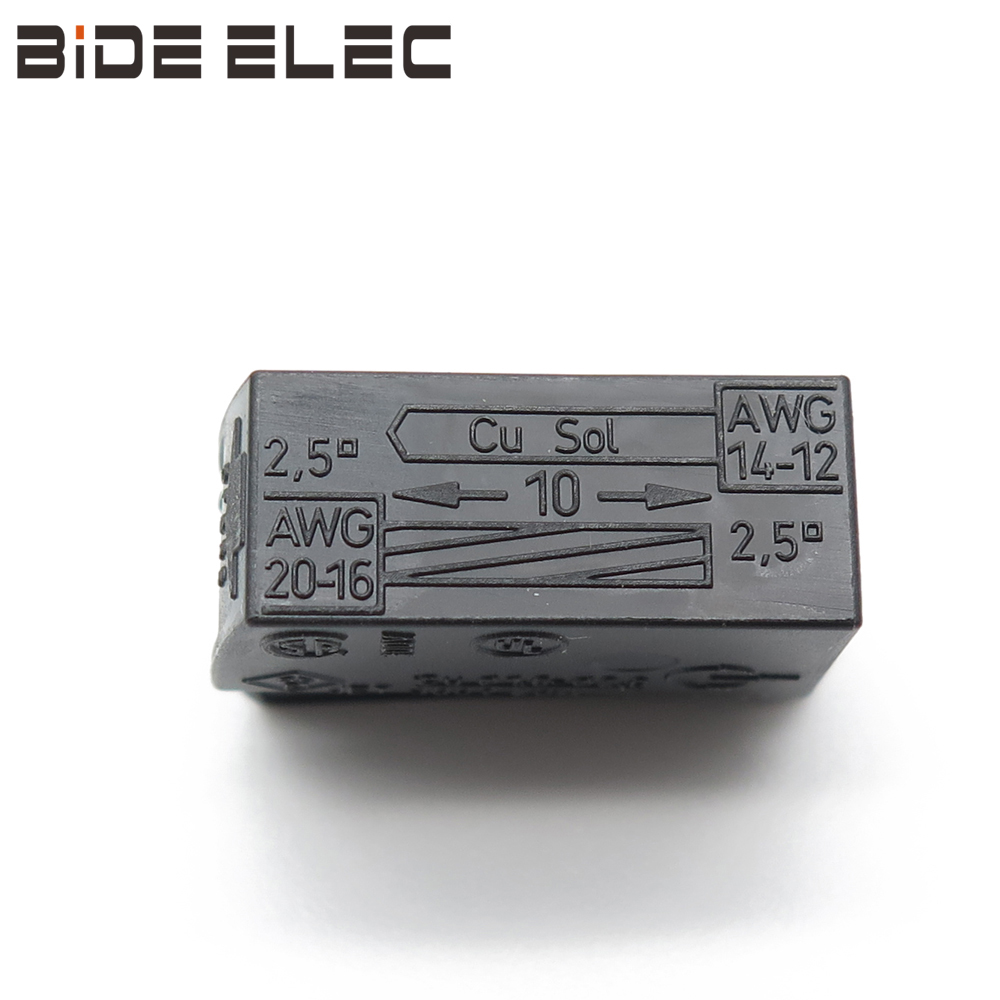

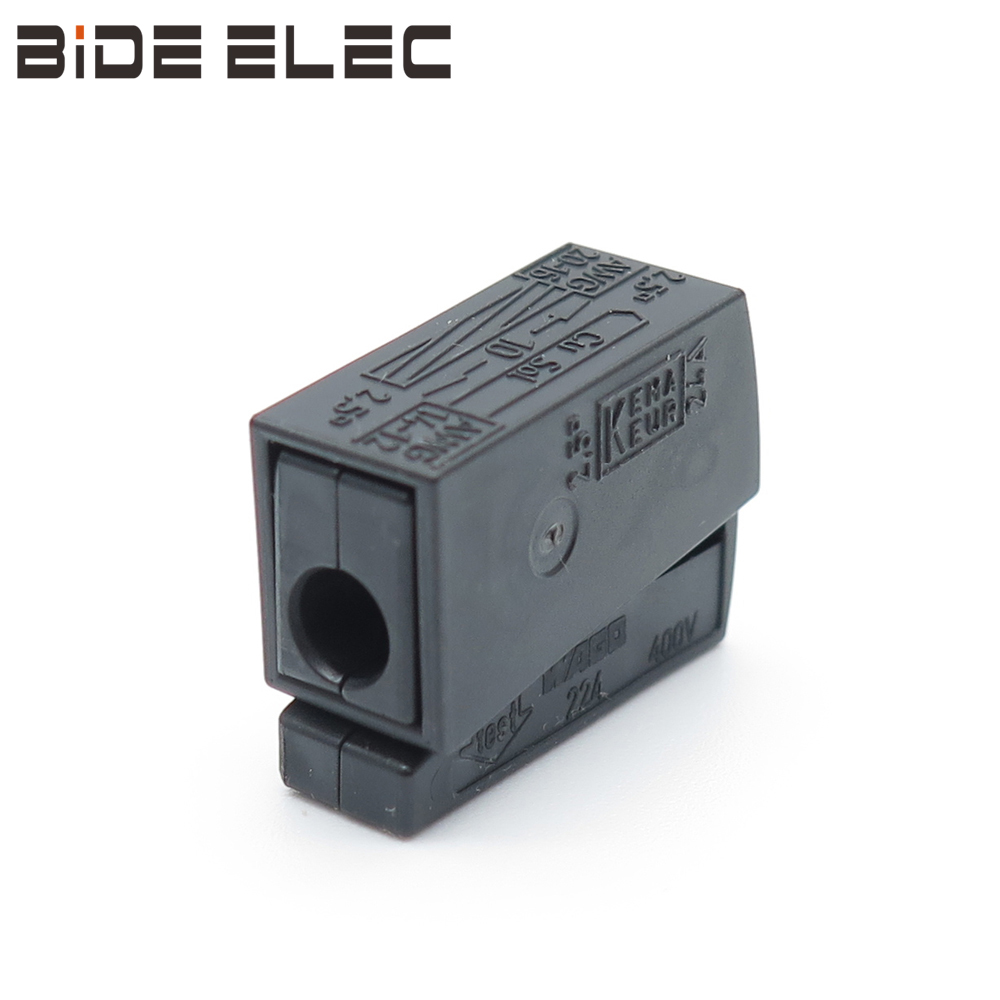

WAGO 224-104 connector, black face ,which can connect any type of wire 0.08-2.5mm², and a round hole in the back, which can connect a single strand of hard wire 1-2.5mm2. When installing lighting appliances, it can be more convenient and risk-free wiring, and improve the wiring efficiency and safety ;

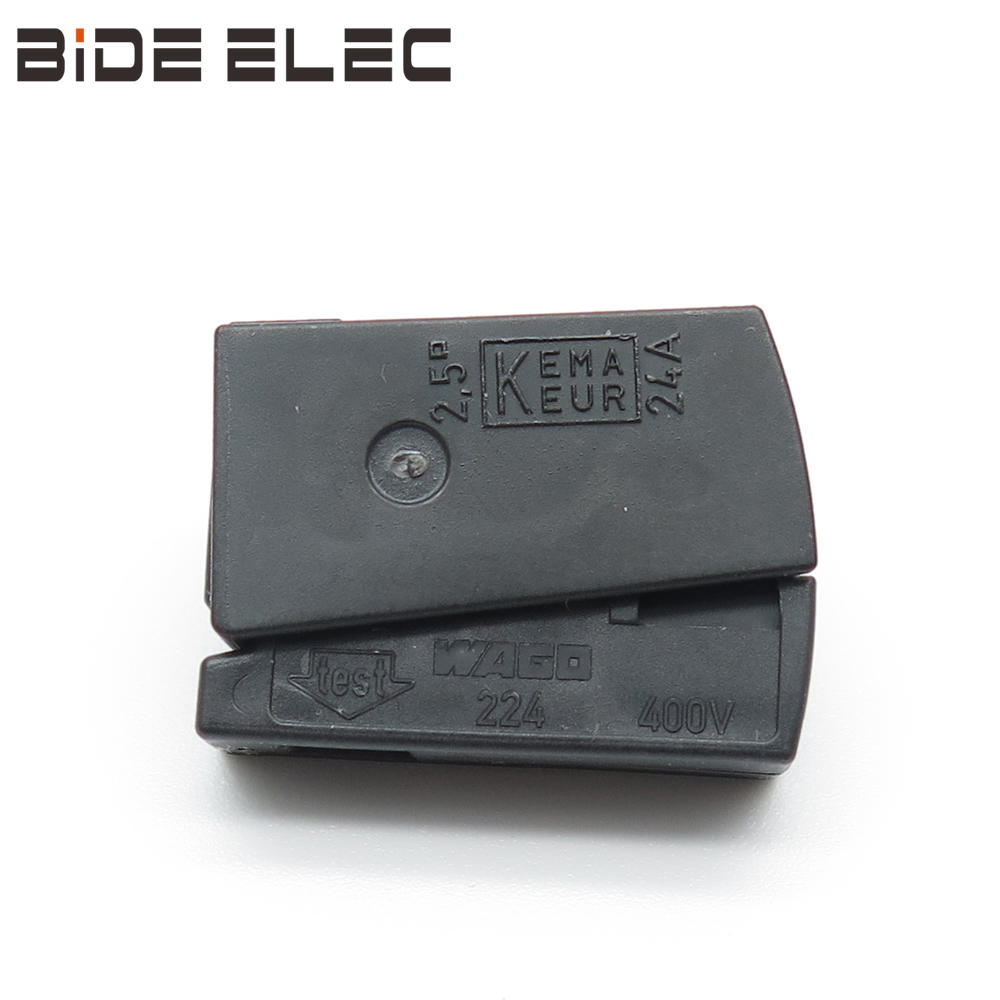

WAGO 224-104 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe. If there is something wrong, it can be pulled out by ultra simple operation (round hole: fix the terminal, rotate the wire from left to right and pull it out; square hole: push it down and pull it out) ;
WAGO 224-104 light fixture connector can work normally in 85°C environment, and the maximum temperature can reach 120°C；
WAGO 224-104 and 224-101 diffrent is lies in whether they can withstand high temperature and wago 224-104 can withstand high temperature ;
WAGO 224 series connectors have five models, 224-101, 224-104, 224-112, 224-114 and 224-201 ;

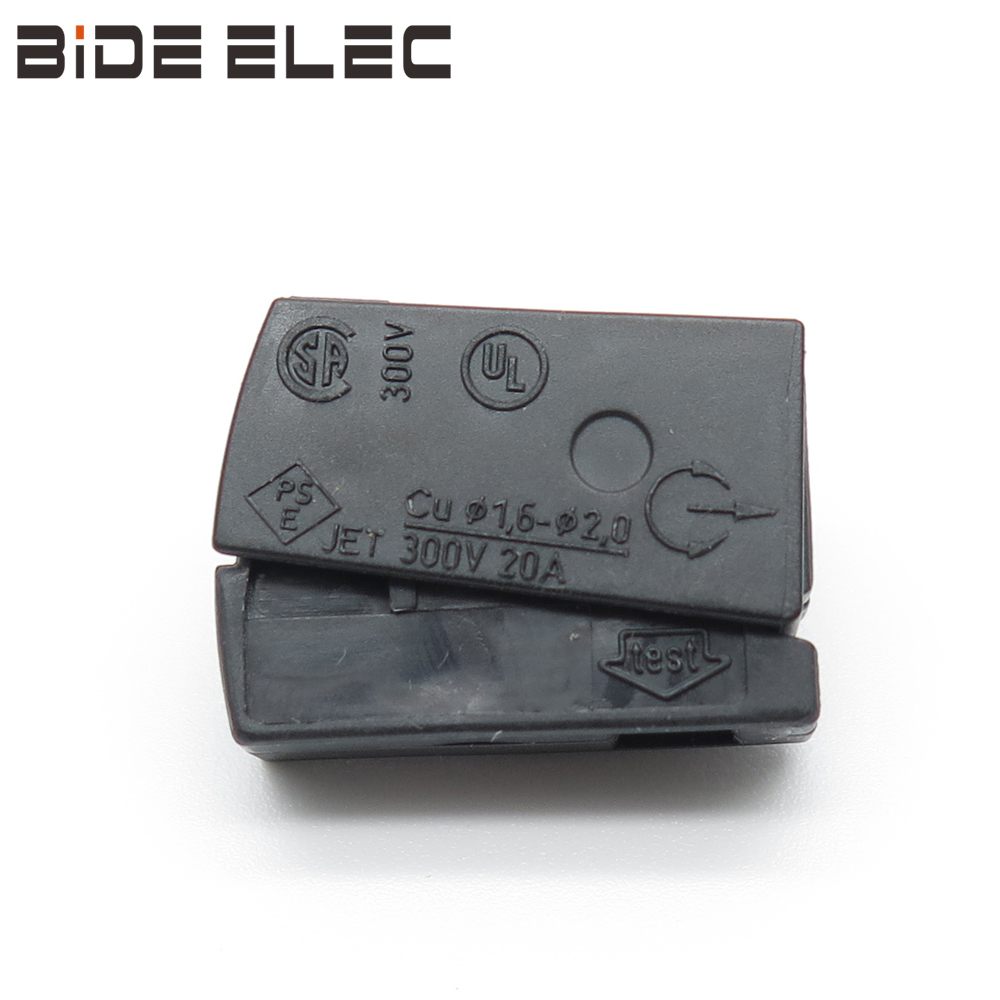

WAGO 224 series products have passed the certification requirements covering almost the whole world, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 400V
Rated current: 24A
Rated power: 5KW
Applicable wire diameter:
power supply side (round) 1-2.5mm² single strand hard wire
lamp side (square) 0.5-2.5mm² soft and hard wire
Stripping length: 9-11mm
Continuous operating temperature: 120 ℃
Size: 8.0 * 5.5 * 20.5mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.
