WAGO 224-201 Fixture Connector And Installationg Terminal Blocks

Market Price: 0.9

Wholesale Price:$ 0.75

WAGO 224-201 is intermediate connector, named is installation terminals block and connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;

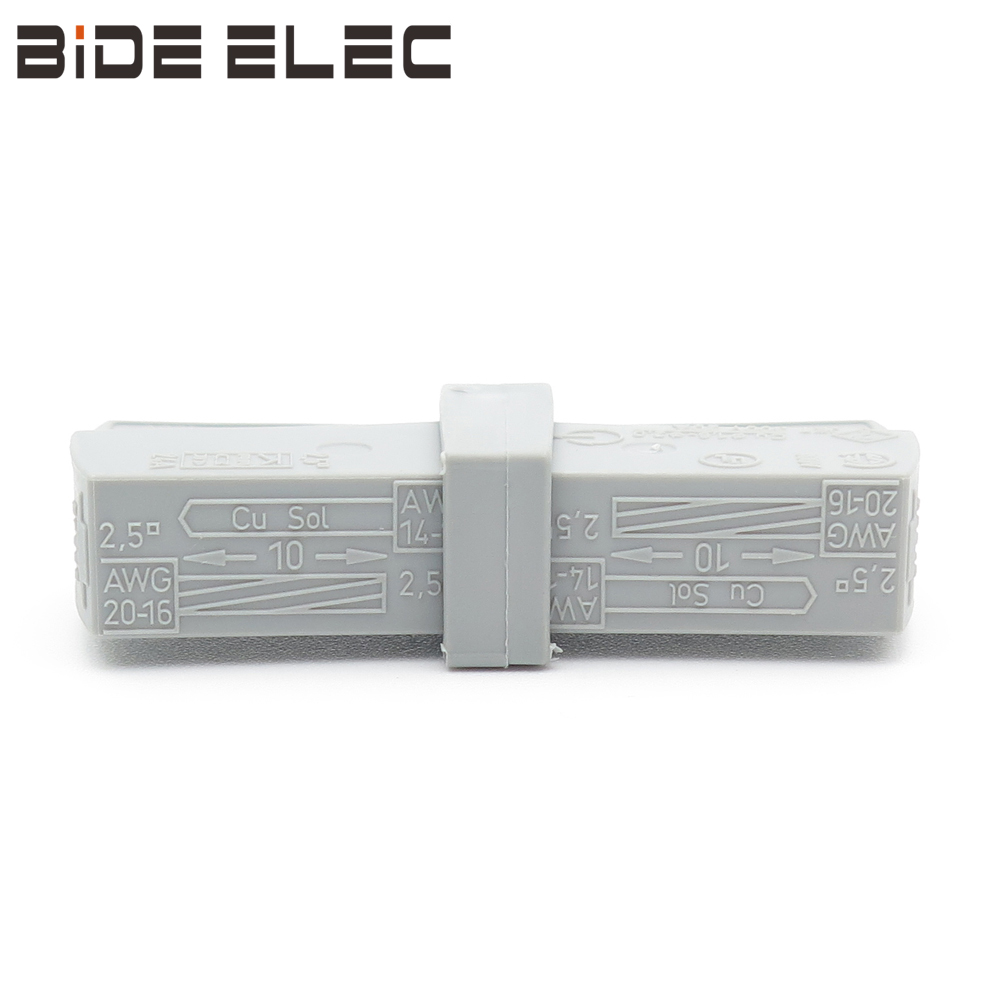

WAGO 224-201 connector , gary face ,has a square hole in front and back, which can connect any type of wire 0.5-2.5mm2, no matter it is used for industrial or household lighting appliances, it can be more convenient and risk-free wiring, greatly improving the wiring efficiency and safety ;

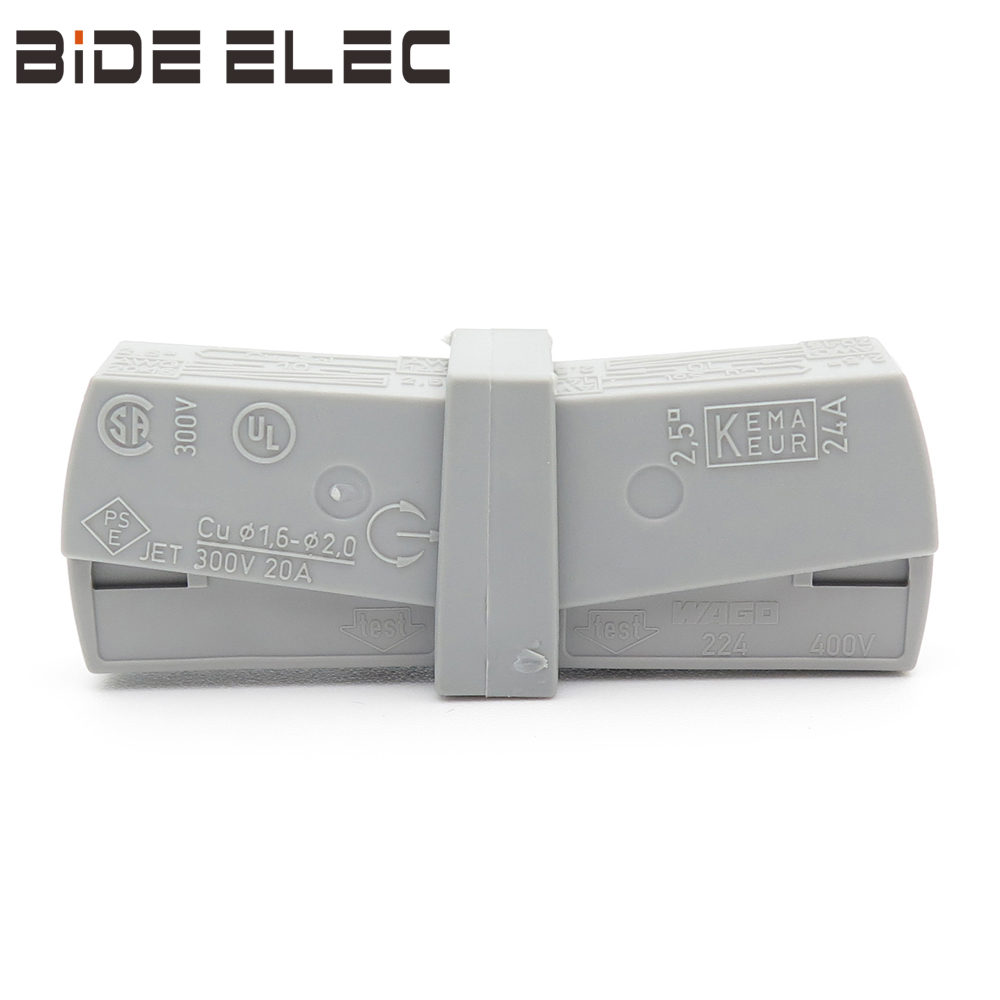

WAGO 224-201 terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe or not. If there is something wrong, it can be pulled out with ultra simple operation (push down) ;
WAGO 224-201 fixture connector can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 224 series connectors have five models, 224-101, 224-104, 224-112, 224-114 and 224-201 ;

WAGO 224 series products have passed the certification requirements covering almost the whole world, including UL, VDE, PSE, Kema, CCA, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 400V
Rated current: 24A
Rated power: 5KW
Applicable wire diameter: 0.5-2.5mm² soft and hard wire
Stripping length: 9-11mm
Tolerance temperature: 105 ℃
Product size: 42 * 8.5 * 15.5mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, ENEC, Kema, CCA, CE, CQC, etc.

For more details, please click 224-201
