Wago 2059-301/998-403 SMD PCB Terminal Block

WAGO 2059-301/998-403
-Easy conductor removal via operating tool
-Height of just 2.7 mm
-Assemble terminal blocks without pole loss
-Available in tape-and-reel packaging for automated assembly
Application notes:
Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-
specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure
product and process compatibility under actual manufacturing conditions.

Electrical data
Nominal voltage (III/3):   63 V
Rated surge voltage (III/3):   2.5 kV
Rated voltage (III/2):   160 V
Rated surge voltage (III/2):   2.5 kV
Nominal voltage (II/2):  320 V
Rated surge voltage (II/2):   2.5 kV
Rated current:   3 A

Connection data
Connection technology:   PUSH WIRE®
Actuation type:   Operating tool
Solid conductor:   0.14 … 0.34 mm² / 26 … 22 AWG
Strip length:   4 … 5.5 mm / 0.16 … 0.22 inch
Conductor connection direction to PCB:   0 °
Pole No.:   1
Solid conductor 2:   0.5 mm² / 20 AWG
Note (conductor cross-section) 2:   No reconnection of smaller conductor cross-sections (0.5 mm²/20 AWG)
Strip length:   2 6 … 7.5 mm / 0.24 … 0.3 inch
Total number of connection points:   1
Total number of potentials:   1
Number of connection types:   1
Number of levels:   1

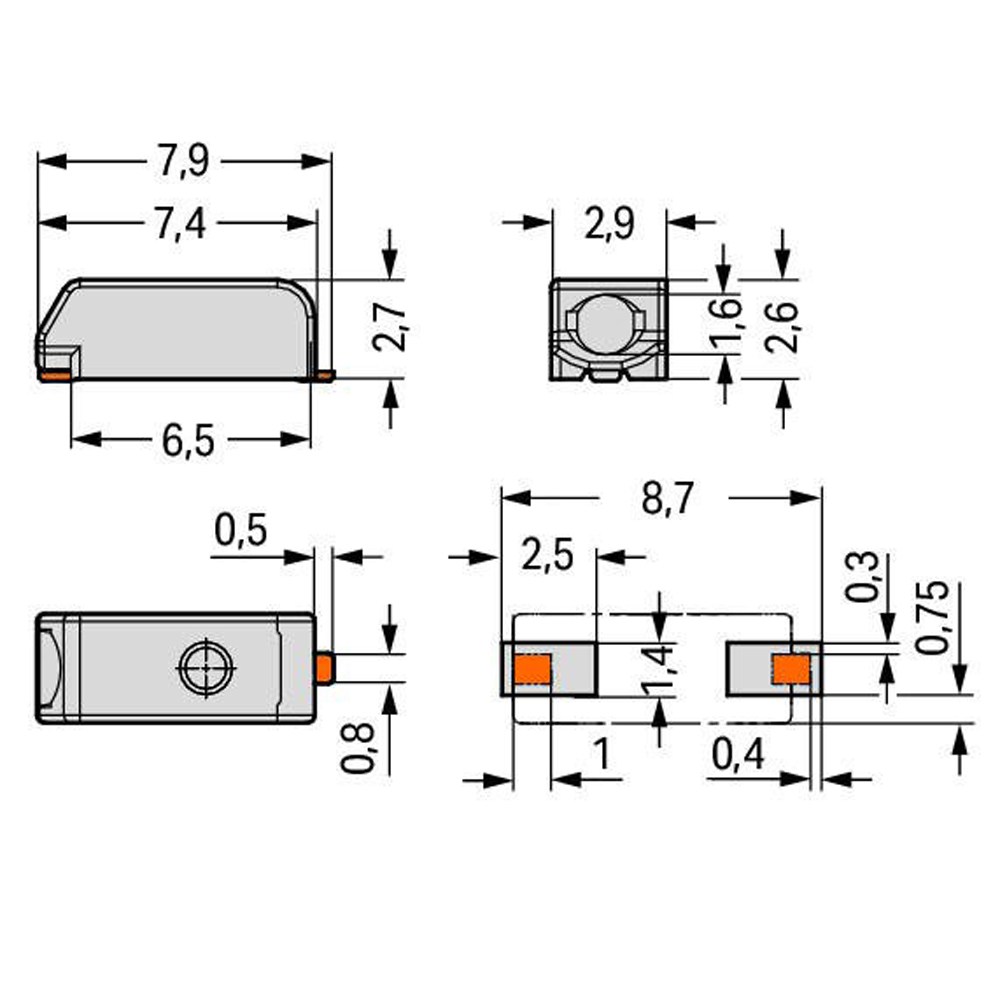

Geometrical Data
Pin spacing:   3 mm / 0.118 inch
Width:   2.9 mm / 0.114 inch
Height:   2.7 mm / 0.106 inch
Depth:   7.9 mm / 0.311 inch

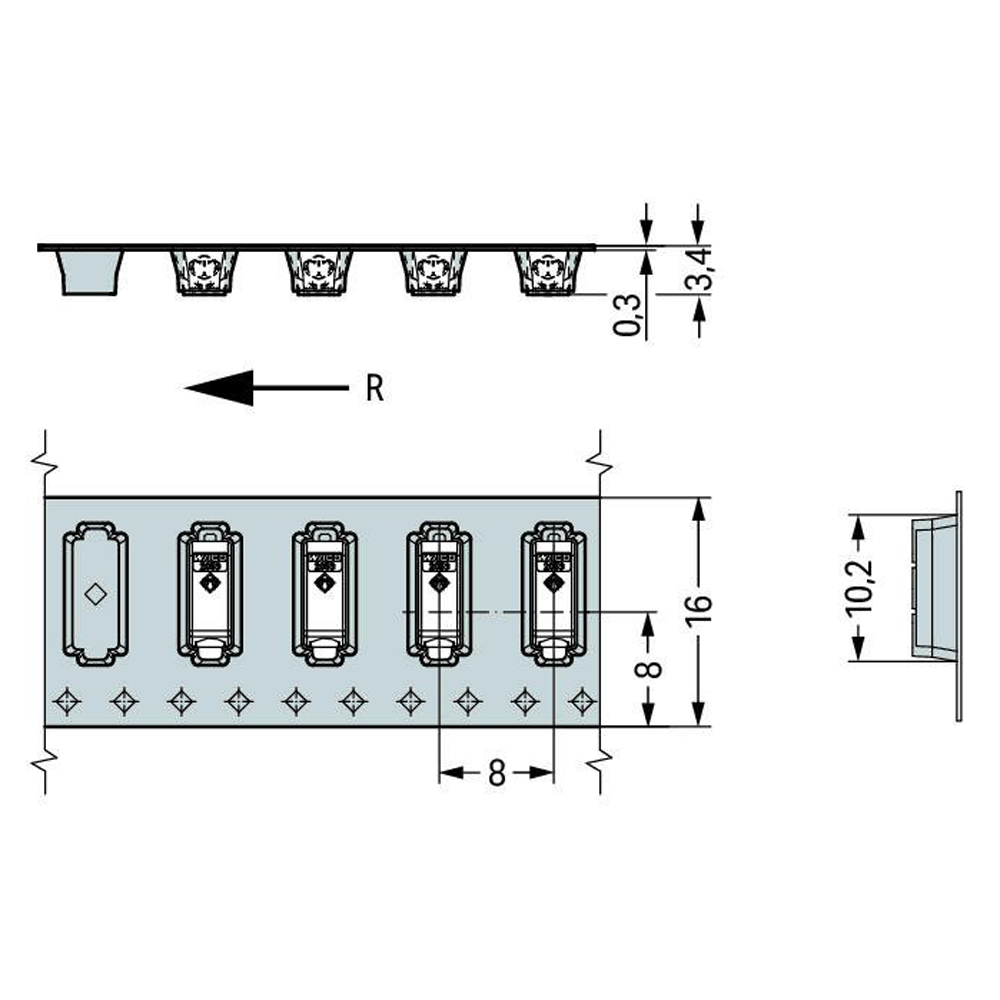

Reel diameter of tape-and-reel packaging:   330 mm
Tape width:   16 mm

Material Data
Color:   white
Insulation material:   Polyphthalamide (PPA GF)
Flammability class per UL94:   V0
Clamping spring material:   Chrome nickel spring steel (CrNi)
Contact material:   Copper alloy
Contact plating:   tin-plated
Weight:: 0.1 g
Limit temperature range:   -60 … +105 °C
