Wago 2061-601/998-404 SMD PCB Terminal Block

Market Price: 2

Wholesale Price:$ 1.00

    Brand: WAGO
    Item No.:2061-601/998-404
    Product Name: SMD PCB Terminal Block
    Origin Country: CH
    Package:  900Pcs/Plate






WAGO 2061-601/998-404

-SMD PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
-Push-in termination of solid and ferruled conductors
-Convenient termination/removal of fine-stranded conductors via push-buttons
-Just 5.6 mm tall
-Available in tape-and-reel packaging for automated assembly

Application notes:
Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-
specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure
product and process compatibility under actual manufacturing conditions.

Electrical data
Rated voltage (III/3):   250 V
Rated surge voltage (III/3):   4 kV
Rated voltage (III/2):   320 V
Rated surge voltage (III/2):   4 kV
Nominal voltage (II/2):  630 V
Rated surge voltage (II/2):   4 kV
Rated current:   17.5 A

Connection data
Connection technology:   PUSH WIRE®
Actuation type:   Push-button
Solid conductor:   0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor:   0.5 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor; with insulated ferrule:  0.5 … 0.75 mm²
Fine-stranded conductor; with uninsulated ferrule:   0.5 … 0.75 mm²
Strip length:   7 … 10 mm / 0.28 … 0.39 inch
Conductor connection direction to PCB:   0 °
Pole No.:   1
Total number of connection points:   1
Total number of potentials:   1
Number of connection types:   1
Number of levels:   1

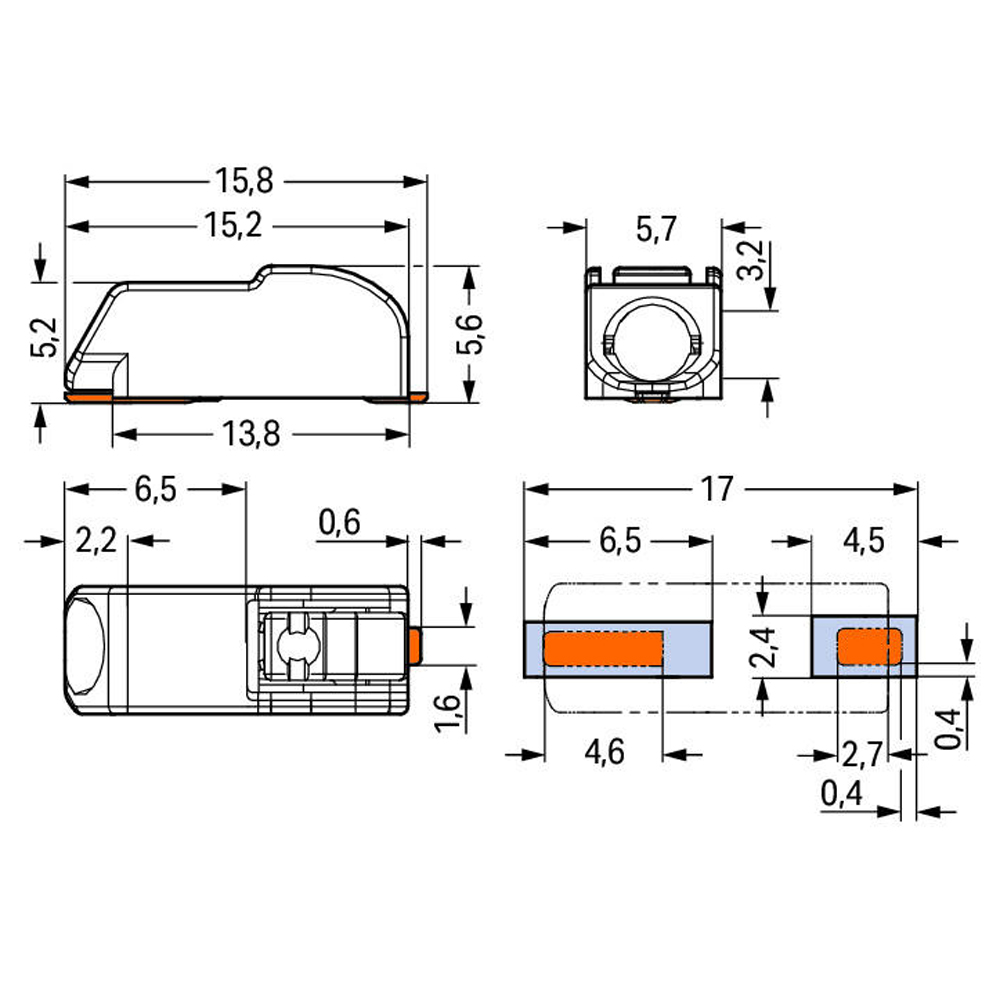

Geometrical Data
Pin spacing:   6 mm / 0.24 inch
Width:   5.7 mm / 0.224 inch
Height:   5.6 mm / 0.22 inch
Depth:   15.8 mm / 0.622 inch

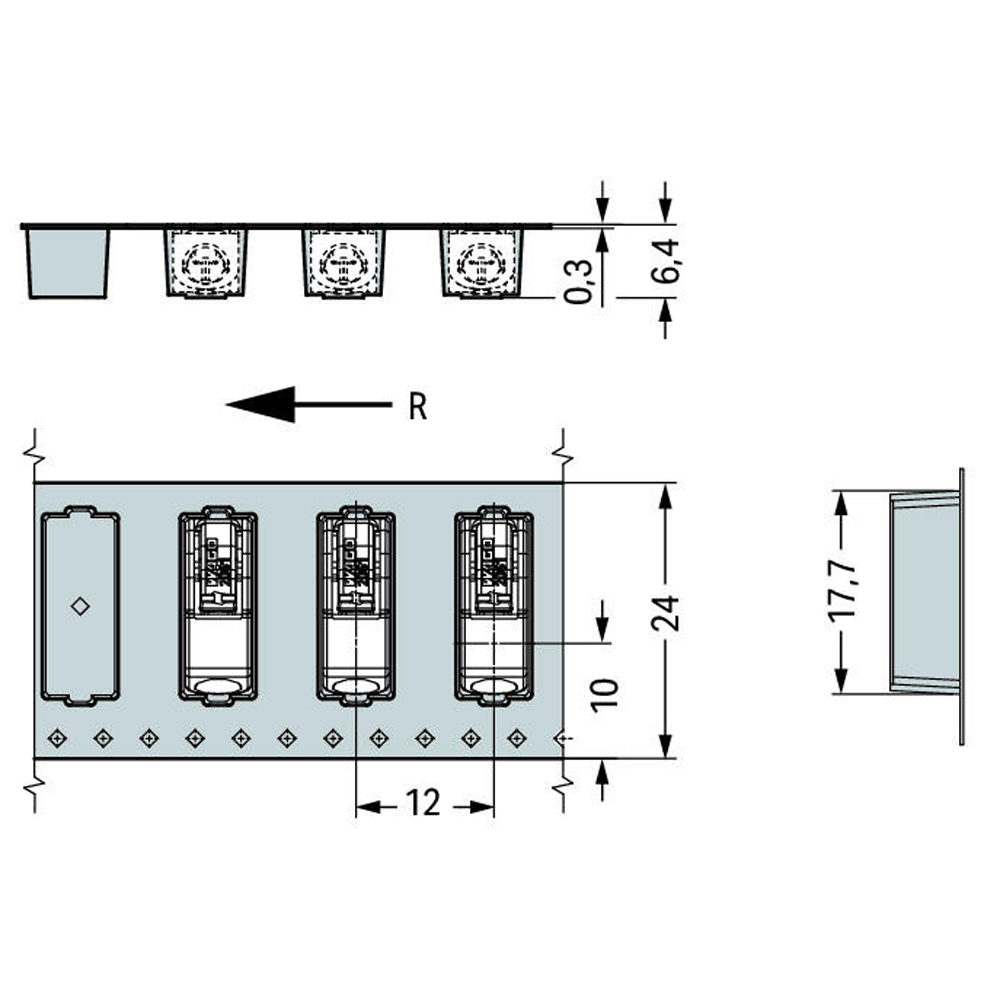

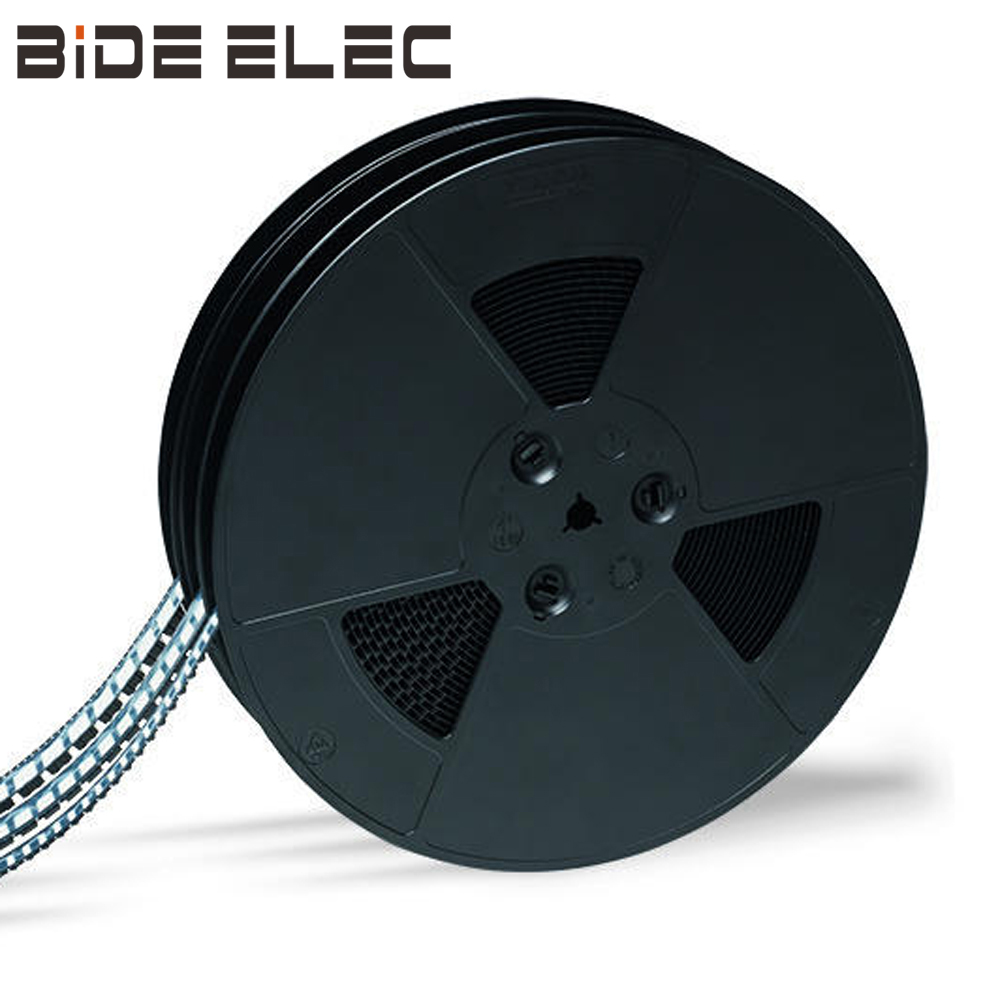

Reel diameter of tape-and-reel packaging:   330 mm
Tape width:   24 mm

Material Data
Color:   white
Insulation material:   Polyphthalamide (PPA GF)
Flammability class per UL94:   V0
Clamping spring material:   Chrome nickel spring steel (CrNi)
Contact material:   Copper alloy
Contact plating:   tin-plated
Weight:  0.4 g
Limit temperature range:   -60 … +105 °C
