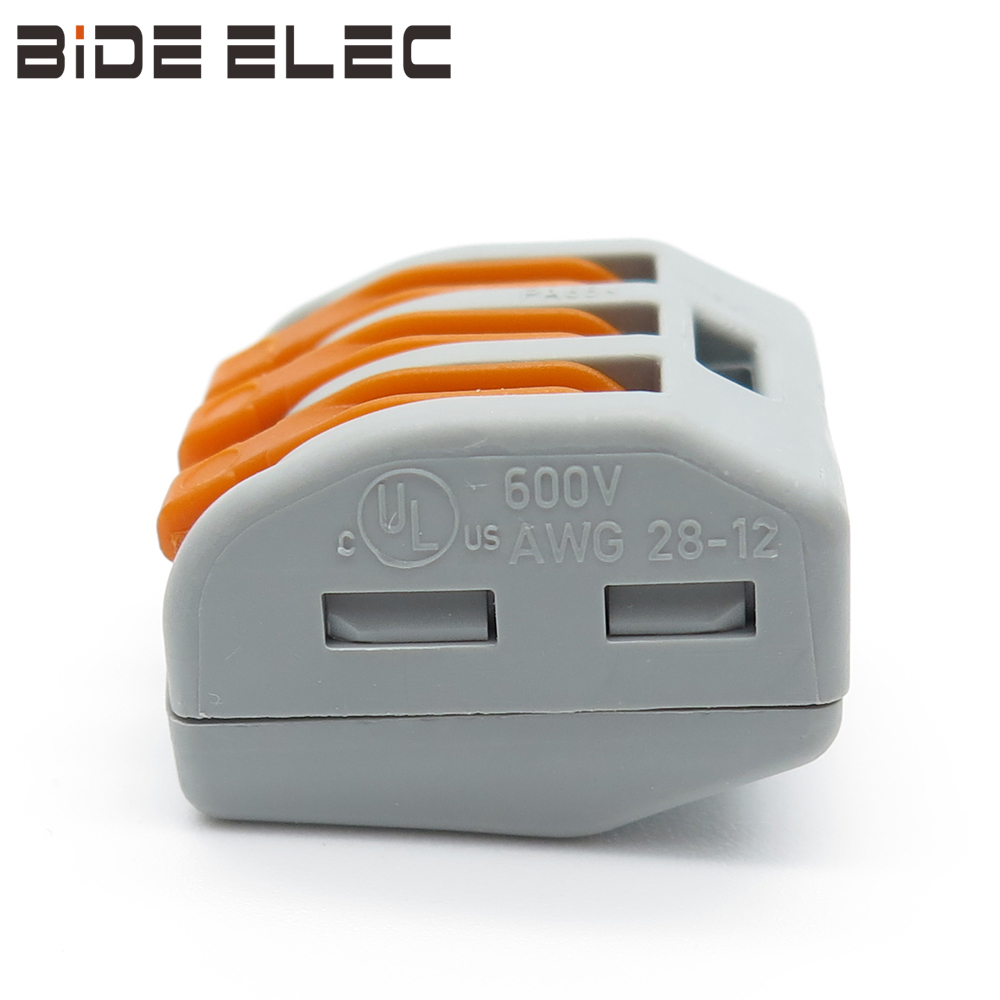

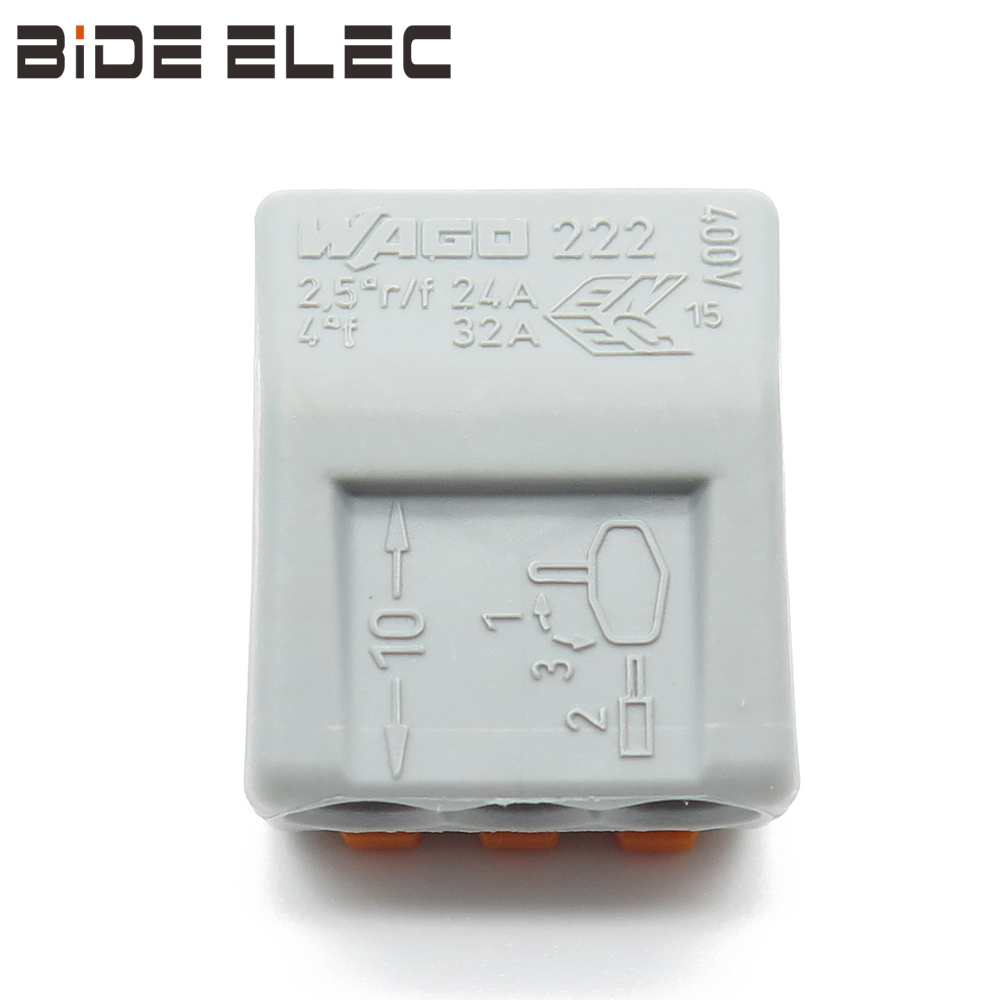

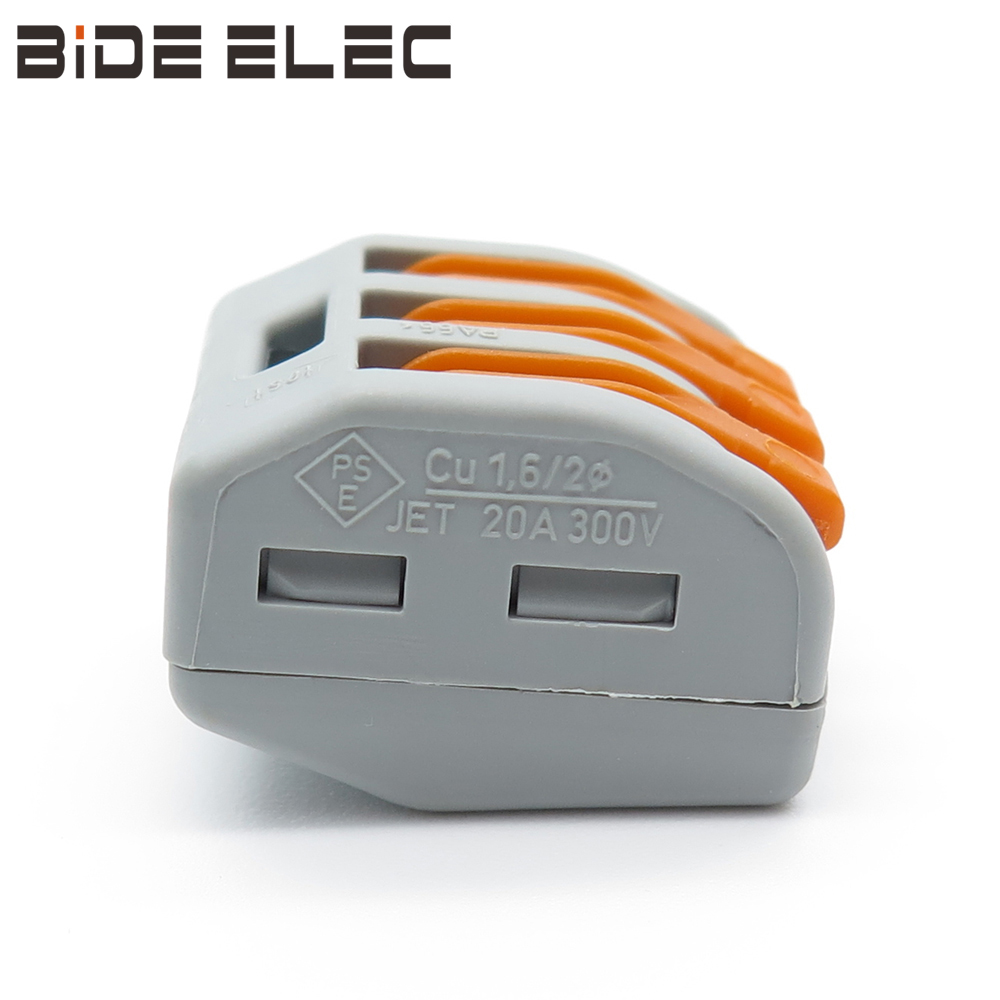

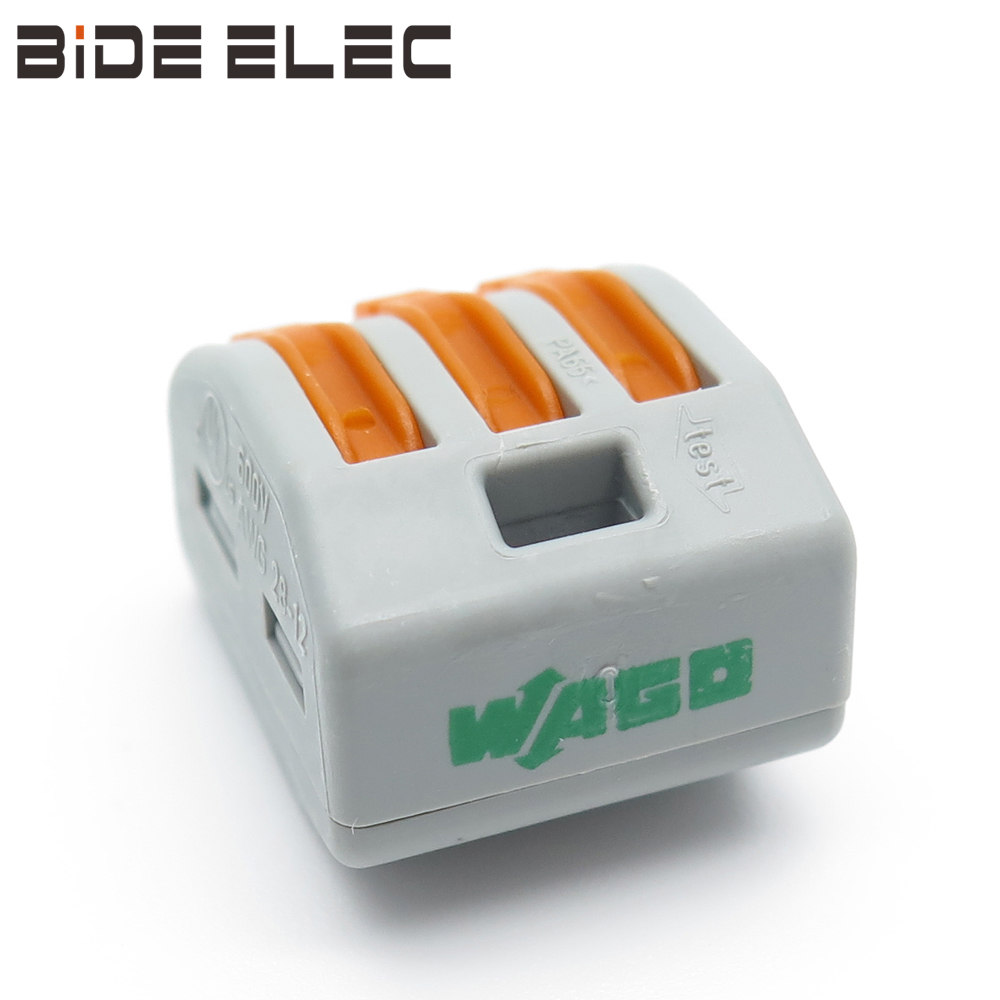

WAGO 222-413 Installation Terminal Block And Splicing Connectors

Market Price: 0.45

Wholesale Price:$ 0.30

WAGO 222-413 is classic compact splicing connectors, can be described as wire terminals and connectors for electrical installation, 50 pieces / box ;
WAGO 222-413 connector has three interworking holes, which can connect single strand / multi hook stranded wire 0.08-2.5mm² and thin multi strand wire 0.08-4mm², which can easily solve the connection troubles and unsafe hidden dangers of different wire diameters and different types of wires, improve the wiring efficiency and increase the safety ;
WAGO 222-413 terminal has its own electricity measuring hole. After wiring, you can check whether it has been safely connected with a measuring pen. If there is something wrong, you can repeat the wiring with ultra simple operation (open the orange handle, pull out the wire, insert the wire, and press the orange handle) ;
WAGO 221-412 can work normally in 85°C environment, and the maximum temperature can reach 105°C；
WAGO 222 series connectors have three models, 222-412, 222-413 and 222-415 ;
WAGO 222 series products have passed almost global certification requirements, including UL, VDE, PSE, ENEC, ABS, DNV GL, LR, CE, CQC, etc. ;

点击购买

Technical parameters:
Rated voltage: 450V
Rated current: 32A
Rated power: 7KW
Applicable wire diameter: 0.08-2.5mm2 single multi strand hard wire; 0.08-4mm2 multi strand thin flexible wire
Stripping length: 9-10mm
Product size: 20.5 * 17 * 14.5mm

Material description:
Conductive material: high purity electrolytic copper
Contact surface material: special tin alloy coating
Clamping material: nichrome spring steel
Shell material: Nylon 6.6 (pa6.6); polycarbonate (PC)

Product certification:
UL, VDE, PSE, CE, CQC, etc.
