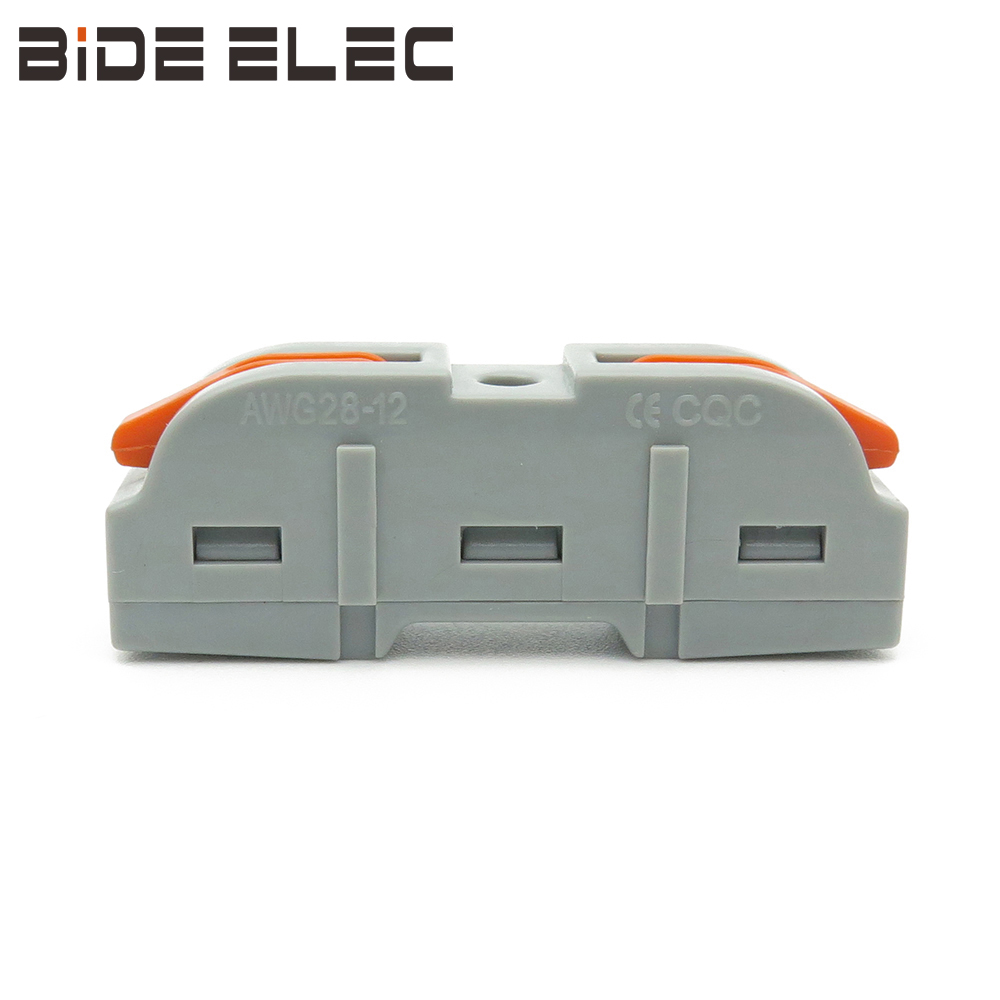

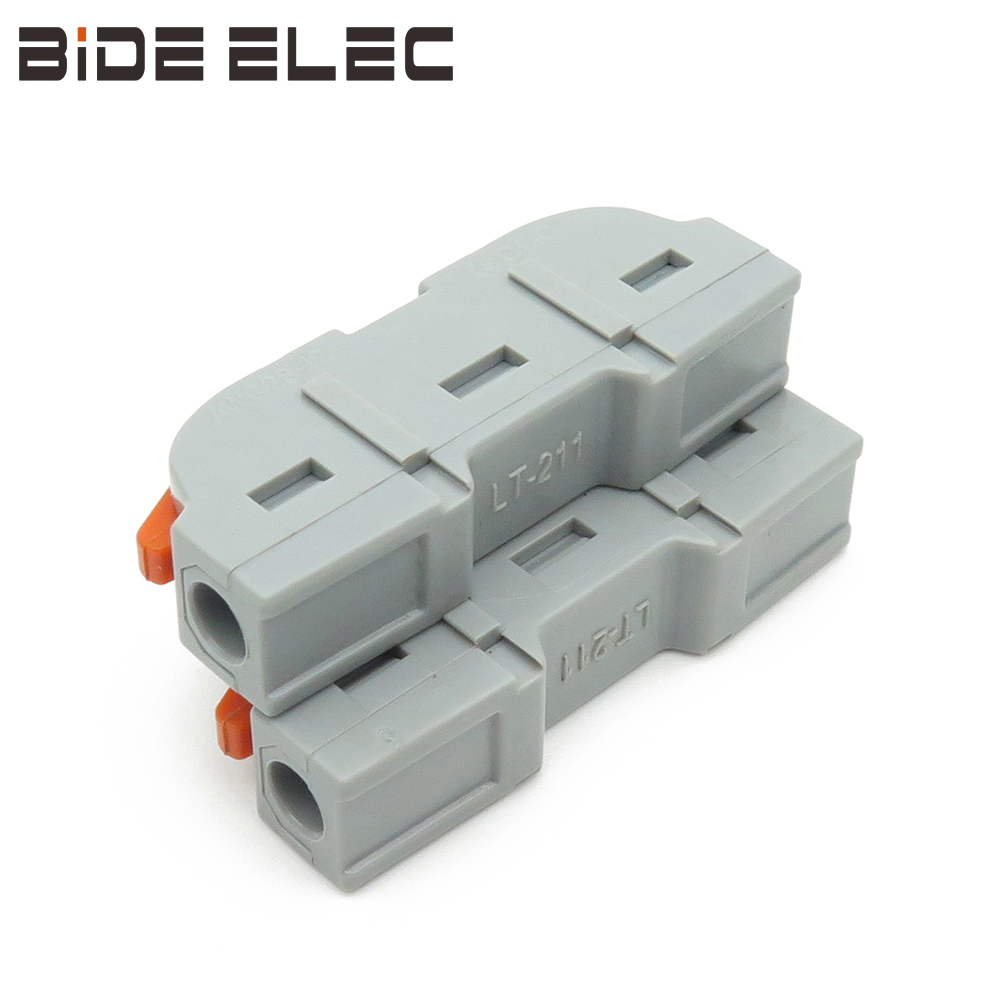

LT-211G Gray 1 In 1 Out Assembled Fast Installation Connector

Market Price: 0.082

Wholesale Price:$ 0.07

LT-211G , gray , is compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces/box;
LT-211G assembled connector is improved from pct-2122, which can realize the direct docking of live wire and neutral wire on the same termiinal ;
LT-211G universal terminal can connect single strand / multi hook stranded wire 0.5-4.0mm² and thin multi strand wire 0.5-4.0mm², which can easily solve the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, and realize the function of zero and live wire docking on the same terminal, improve the wiring efficiency and increase the safety ;
LT-211G fast installation terminal has its own electric measuring hole. After wiring, the electric measuring pen can be used to check whether the wiring is safe. If there is something wrong, the wiring can be repeated by ultra simple operation (open the operating handle, pull out insert the wire, press the operating handle) ;

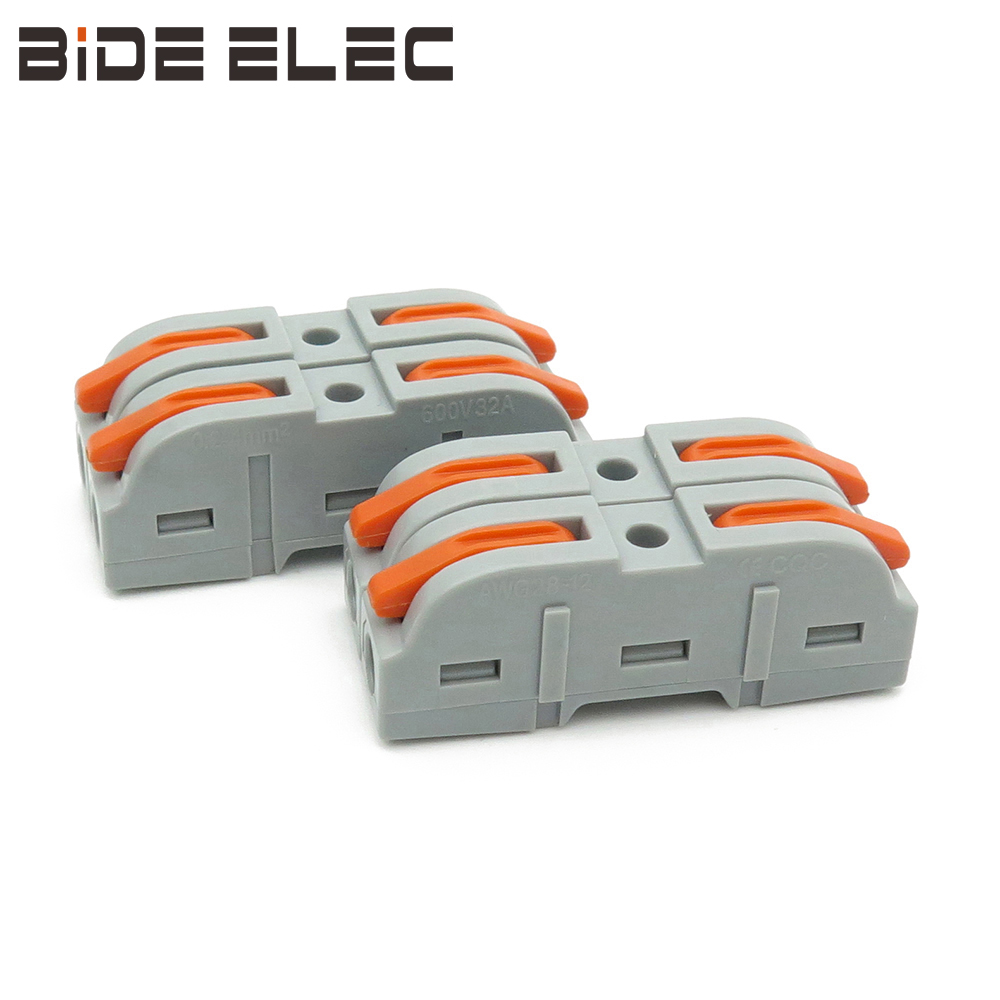

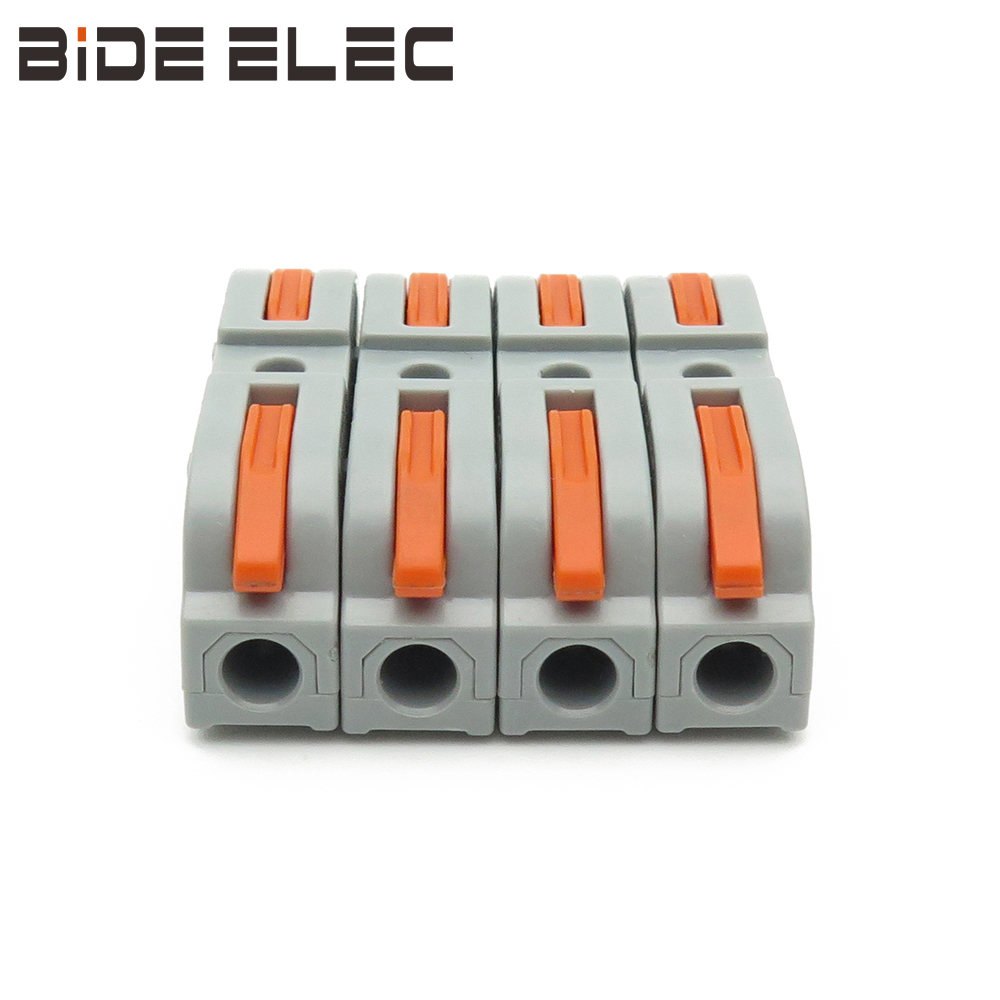

LT splicing series products are revolutionary innovations based on the original product pct-2122, which can be spliced as many circuits as needed, making the wiring more convenient, reliable and safe, and the domestic innovation makes the product more cost-effective ;
LT series color can be customized: gray (default), transparent, etc.; handle color: red, blue, black, white, orange (default), etc. ;

点击购买

Technical parameters
Connection number: 2 (1 + 1)
Rated voltage: 450V
Rated current: 32A
Withstand voltage: 4KV
Applicable wire diameter: 0.5-4.0mm²single strand hard wire
Stripping length: 11mm
Product size: 39.3 * 8.5 * 14.44mm

Material description
Color: gray
Contact surface material: tinned red copper T2
Clamping material: high grade nichrome spring steel S301
Shell material: new environment-friendly nylon 6.6 (pa6.6)

Product certification
Rosh, CE, CQC, etc
