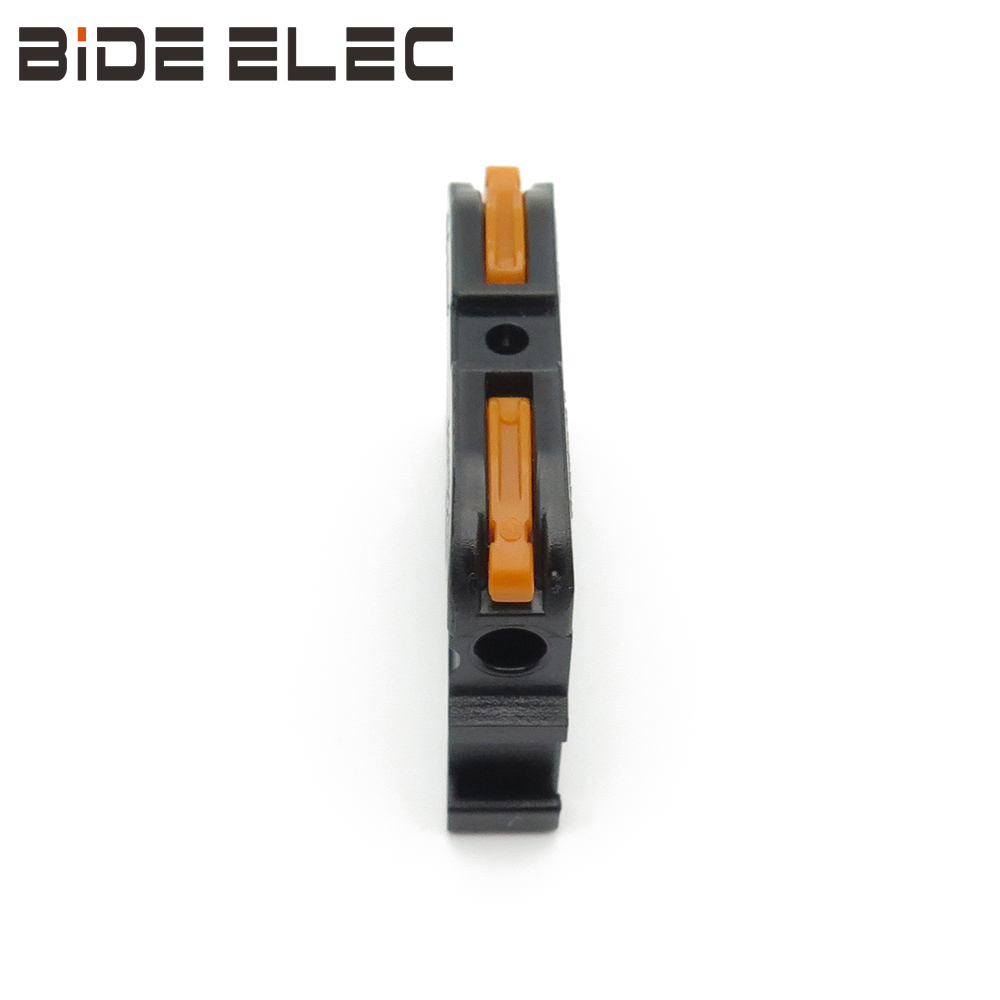

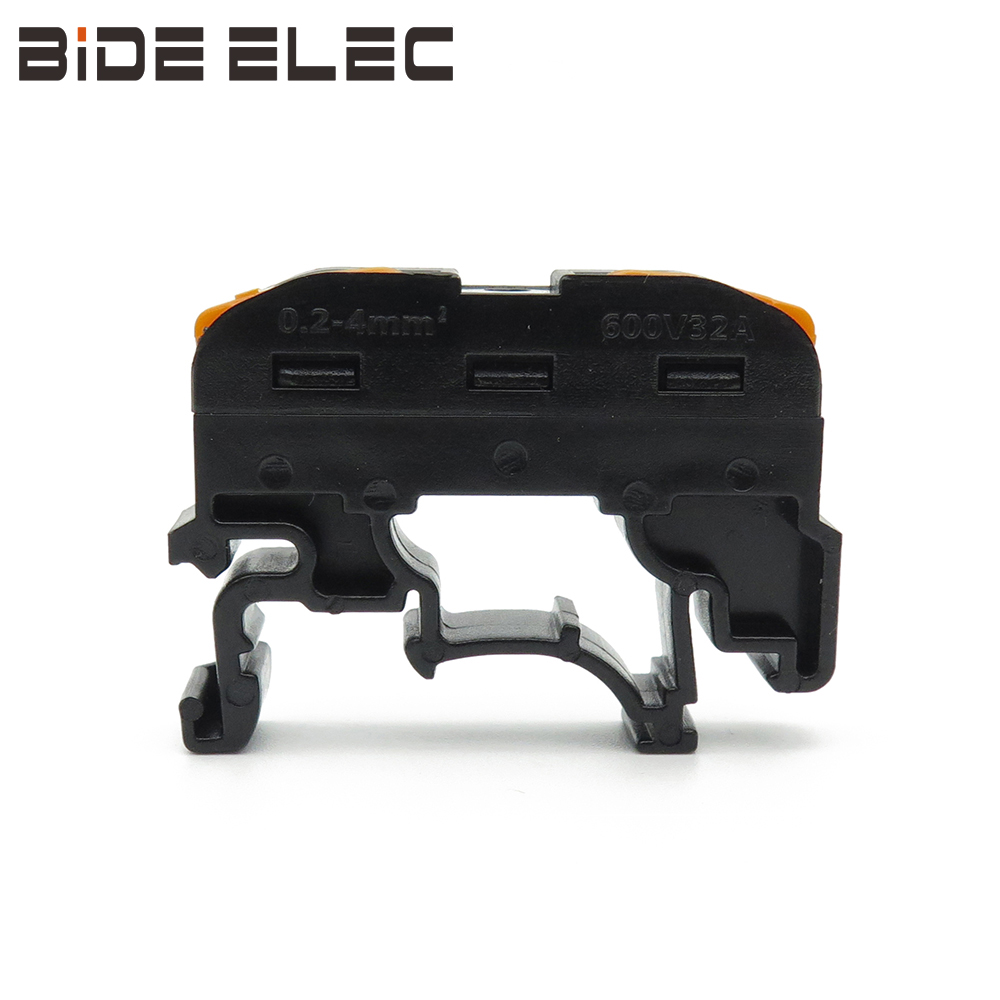

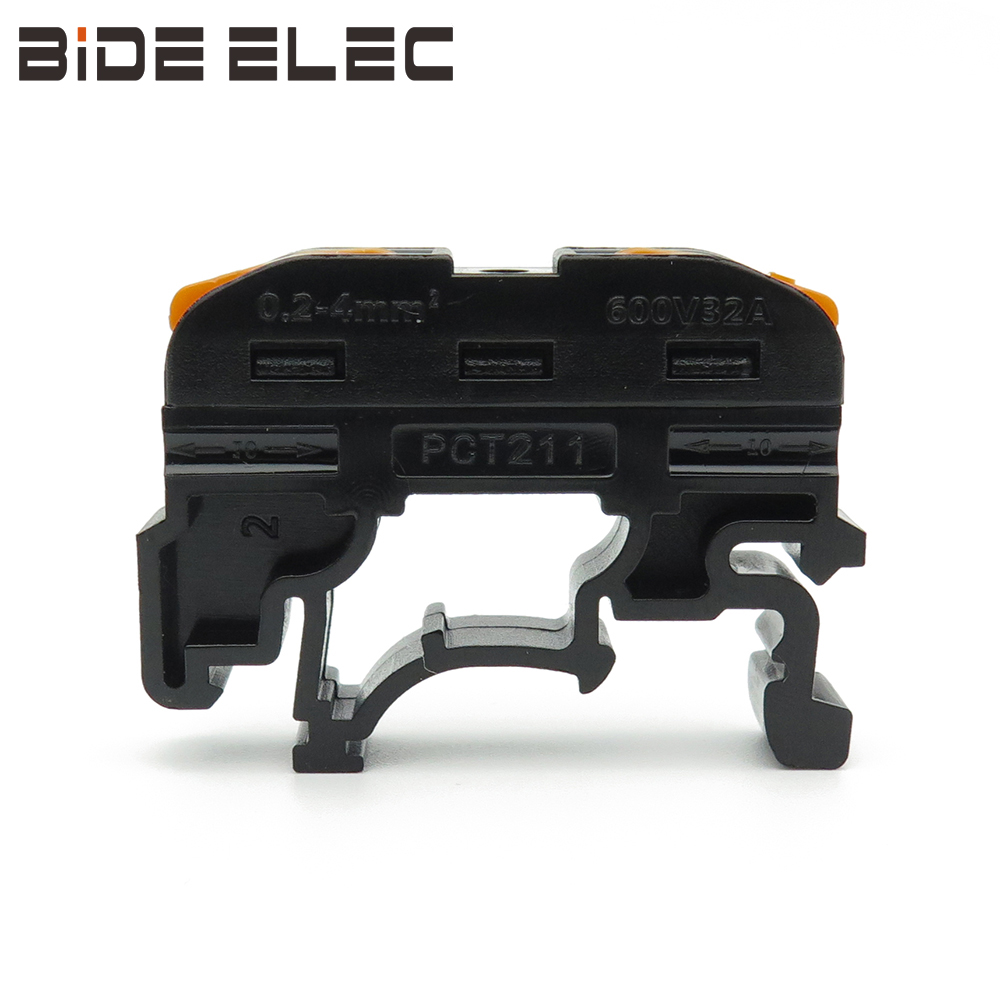

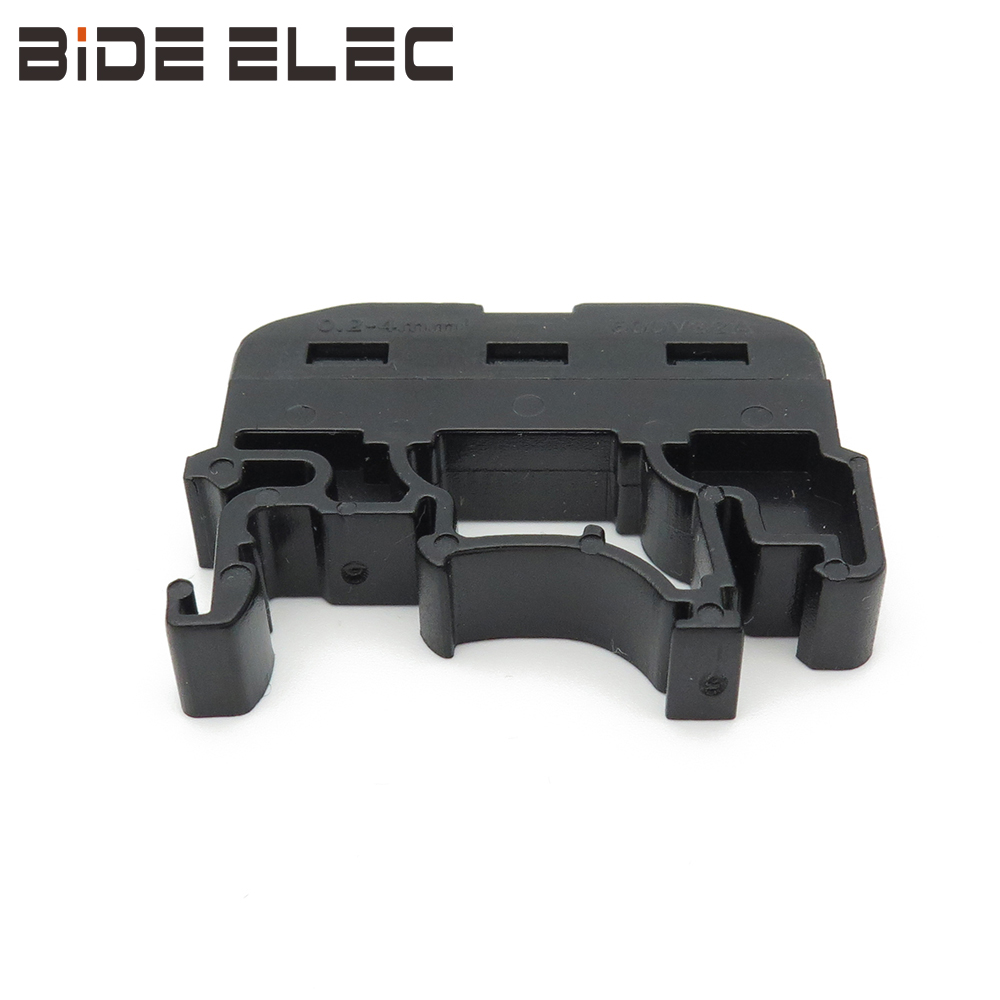

PCT-211B Black 1 In 1 Out DIN35 Rail UK Fast Installation Terminal Block

Market Price: 0.65

Wholesale Price:$ 0.56

PCT-211B is DIN 35 universal compact splicing connectors, which can be described as wire terminals and connectors for electrical installation, 50 pieces/box ;
PCT-211B connector, gray, improved from PCT-2122, instead of traditional UK wiring block, can be directly installed on DIN35 rail, live wire and neutral wire can be directly butted on the same side;
PCT-211B universal terminal can connect single strand / multi hook stranded wire 0.5-4.0mm² and thin multi strand wire 0.5-4.0mm², which easily solves the connection trouble and unsafe hidden danger of different wire diameters and different types of wires, and realizes the function of live wire and neutral wire docking on the same terminal, improves the wiring efficiency and increases the safety ;
PCT-211B DIN 35 rail terminal has its own electricity measuring hole. After wiring, you can use the electric pen to check whether it has been safely connected. If there is something wrong, you can repeat the wiring with ultra simple operation (open the operating handle, pull out - insert the wire, press the operating handle) ;
Based on the original product PCT-2122, the docking series products have carried out revolutionary innovation, which makes the wiring more convenient, reliable and safe, and the domestic innovation makes the product more cost-effective ;
PCT connector series can be customized: gray (default), black , etc.; handle color: red, blue, black, white, orange (default), etc. ;

点击购买

Technical parameters
Connection number: 2 (1 + 1)
Rated voltage: 450V
Rated current: 32A
Withstand voltage: 4KV
Applicable wire diameter: 0.5-4.0mm² single strand hard wire
Stripping length: 11mm

Material description
Color: Black
Contact surface material: tinned red copper T2
Clamping material: high grade nichrome spring steel S301
Shell material: new environment-friendly nylon 6.6 (pa6.6)

Product certification
Rosh, CE, CQC, etc
